Craftsman DXGHW48P (55AI6HN6038) (2021) Walk-Behind Mower

Model: DXGHW48P (55AI6HN6038) (2021)

Back To Assemblies

Save Part Not Listed?
product name

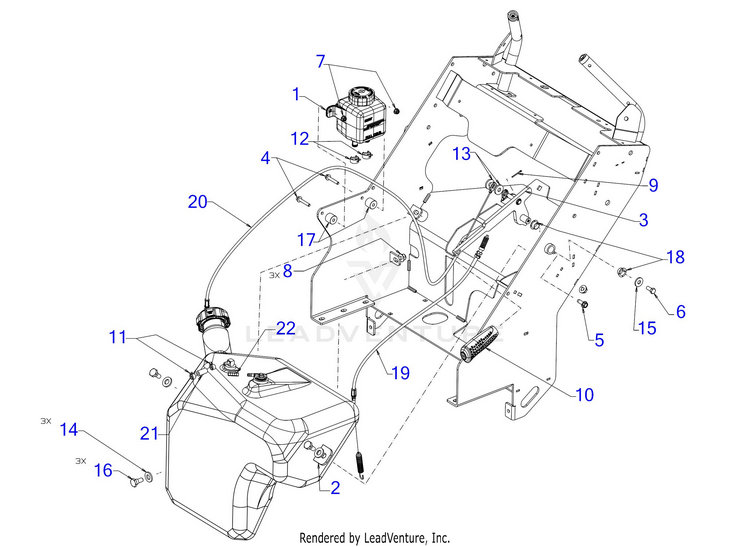

Brakes

...
...
1
HYDRAULIC TANK MTD-631-04286
...
2
FUEL TANK ASSEMBLY (5 GAL) MTD-951-05570
...
2
GROMMET-FUEL TANK (Not Shown) MTD-02002253
...
2
FUEL PICKUP VALVE (Not Shown) MTD-951-15791A
...
2
FUEL VENT FITTING (Not Shown) MTD-751-15512
...
2
GROMMET .755 x .955 x .55 (Not Shown) MTD-735-05014
...
2
FUEL CAP ASSEMBLY (Not Shown) MTD-751-15884
...
3
BRAKE PIVOT WELDMENT MTD-680E00535
...
4
SCREW 1/4-20 x 1.50 GR5 MTD-710-05237
...
5
SCREW 5/16-18 x .875 MTD-710-0650
...
6
SCREW 5/16-18 x .750 MTD-710-1880
...
7
FLANGE LOCK NUT MTD-712-04064
...
8
NUT MTD-712-04065
...
9
Cotter Pin 3/32" Dia. x 1.0" MTD-714-0111
...
10
GRIP MTD-720-04139B
...
11
HOSE CLAMP 1/20 MTD-726-0205
...
12
FUEL HOSE CLAMP MTD-926-0324
...
13
FLAT WASHER .385 x 1.00 x .135 MTD-736-0258
...
14
Flat Washer .51 " I.D. x 1.0" O.D. MTD-736-0326
...
15
WASHER MTD-736-3072
...
16
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
17
SPACER (.250X.875X.750) MTD-738-05307
...
18
FLANGE BEARING .626X.938X.344 MTD-741-3074
...
19
PARKING BRAKE CABLE (LH) MTD-946-05420B
...
20
PARKING BRAKE CABLE (RH) MTD-946-05421B
...
21
FUEL HOSE LOW PERMEATION MTD-751-10349-13
...
22
VENT HOSE 3/16 ID MTD-751-12089-34
