Craftsman CMZAS6JPS 41AJPS-C949 Handheld Product

Model: CMZAS6JPS 41AJPS-C949

Back To Assemblies

Save Part Not Listed?
product name

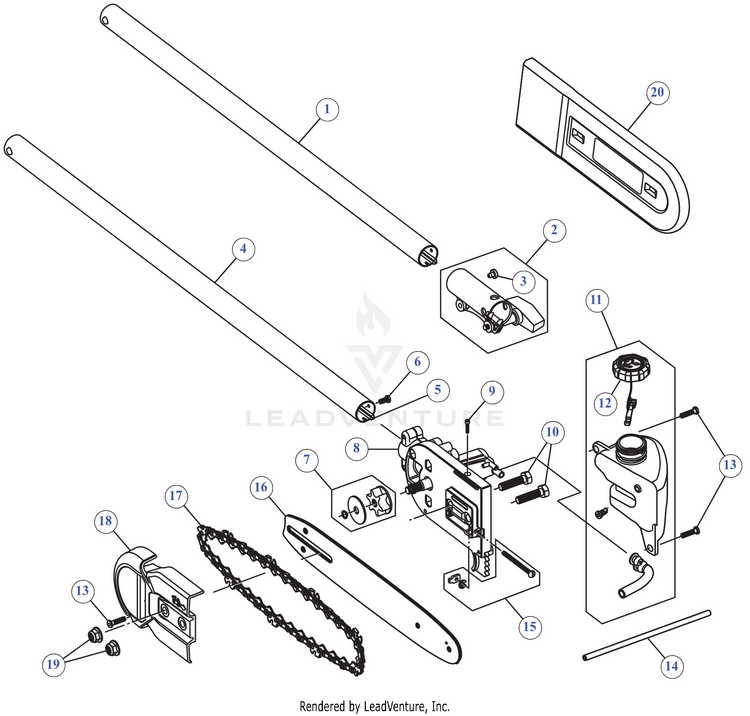

General Assembly

...
...
1
EXTENSION BOOM MTD-753-11150
...
2
COUPLER ASSEMBLY (Incl. 3) MTD-753-09225
...
3
SCREW, 10-32X.250 TA MTD-791-182057
...
4
LOWER SHAFT HOUSING (Incl. 5) MTD-753-11238
...
5
FLEXIBLE DRIVE SHAFT MTD-753-11123
...
6
SCREW 1/4-20 X.500 MTD-710-0599
...
7
SPROCKET ASSEMBLY MTD-753-05595
...
8
GEAR BOX ASSEMBLY (Incl. 7 & 9) MTD-753-05599
...
9
SCREW 4X40X.50 MTD-710-04696
...
10
SCREW 5/16-18 x 1.25 GR5 MTD-710-0528
...
11
OIL TANK (Incl. 12) MTD-753-11360
...
12
OIL CAP MTD-753-11375
...
13
SCREW, #8-16X.750 PH MTD-791-181345
...
14
OIL LINE MTD-753-05588
...
15
CHAIN TENSION HDW MTD-753-05597
...
16
BAR 10" MTD-795-00442
...
17
CHAIN 10" MTD-713-05156
...
18
GUARD CHAIN MTD-753-11337
...
19
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
20
SCABBARD MTD-731-25531-2
...
xx
HANGER MTD-731-08926
...
xx
STRAP ASSEMBLY-SHOULDER MTD-791-682075B
...
xx
ALLEN WRENCH MTD-797-00056
