Craftsman CMXGTAMDSS30 WS4200 41CDSS30793 Handheld Product

Model: CMXGTAMDSS30 WS4200 41CDSS30793

Save Part Not Listed?
product name

Engine Assembly

...
...
1
REAR ENGINE COVER (Incl. 2 & 3) MTD-753-09884
...
2
SCREW 8-16 x 3/4 MTD-710-04194
...
3
SCREW M5X0.8 MTD-710-04604A
...
4
ROCKER COVER MTD-753-05901
...
5
O-RING MTD-753-05902
...
6
O-RING CYL AC5 MTD-753-05910
...
7
BREATHER HOSE MTD-753-10205
...
8
OIL PLUG (Incl. 9) MTD-753-05408
...
9
RING, OIL PLUG (AC MTD-791-182290
...
10
CRANKCASE COVER MTD-753-06259
...
11
O-RING CRNKCSE CVR MTD-753-05238
...
12
FLYWHEEL ASSEMBLY AC3.1 MTD-753-06221
...
13
LEAD WIRES MTD-753-05264
...
14
MODULE ASSEMBLY MTD-753-11255
...
15
MUFFLER ASSEMBLY (Incl. 16 & 17) MTD-753-05245
...
16
GASKET/MUFFLER MTD-753-05244
...
17
SCREW M5 x 44MM MTD-710-04809
...
18
SPARK PLUG 4 CYCL MTD-794-00082
...
19
GASKET/INSULATOR MTD-753-05247
...
20
NUT 10-32 MTD-712-04099
...
21
CARB INSULATOR MTD-841-020801S
...
22
GASKET MTD-753-06948
...
23
CARBURETOR MTD-753-11331
...
24
SCREW, M5 X18 MTD-9052-1
...
25
AIR CLEANER COVER (Incl. 26) MTD-841-036210S
...
26
AIR FILTER MTD-753-05254
...
27
SCREW 10-32X2.5 MTD-710-04517
...
28
FUEL TANK ASSEMBLY (Incl. 29) MTD-753-06797
...
29
FUEL CAP ASSEMBLY 43MM-6 W/O HOLE MTD-753-1229
...
30
FUEL TANK PADS MTD-753-05259
...
31
STARTER HOUSING (Incl. 3 & 38) MTD-753-09886
...
32
CLUTCH ASSEMBLY MTD-753-06281
...
33
CLUTCH COVER (Incl. 2) MTD-753-09887
...
34
SCREW, 8-32 x .312 P MTD-791-182519
...
35
SCREW MTD-9689A
...
36
HEX NUT MTD-712-0161
...
37
SHORT BLOCK (Incl. 3-9, 11, 18 & 39) MTD-841P021441S
...
38
SPACER :2.165" MTD-750-04434
...
39
SCR, VALVE COVER MTD-791-181025
...
40
HEAT SHIELD MTD-753-06949
...
41
CARBURETOR GASKET MTD-791-181709
...
42
WOODRUFF KEY #403-.125 x .375 MTD-914-04016

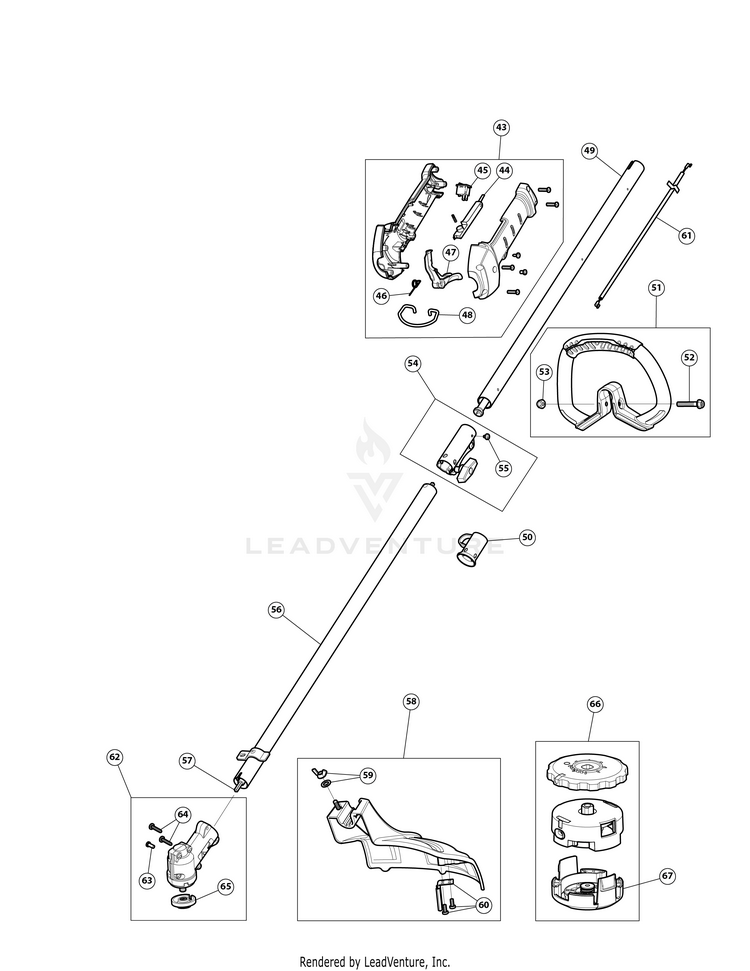

General Assembly

...
...
43
THROTTLE GRIP ASM (Incl. 44 - 48) MTD-753-09888
...
44
LEVER LOCK OUT MTD-731-08433C-10
...
45
SW, MOMENTARY ON/O MTD-791-182405
...
46
TRIGGER SPRING MTD-753-05007
...
47
THROTTLE TRIGGER MTD-731-04970B-10
...
48
SHOULDER STRAP CLIP MTD-732-06186
...
49
UPPER SHAFT HOUSING MTD-841-036087S
...
50
HANGER MTD-731-08926
...
51
HANDLE DLX (Incl. 52 & 53) MTD-753-06889
...
52
BOLT 1/4-20X1 1/2 MTD-753-06040
...
53
NUT 1/4-20 NYLOC MTD-2952
...
54
COUPLER ASSEMBLY (Incl. 55) MTD-753-09225
...
55
SCREW, 10-32X.250 TA MTD-791-182057
...
56
LOWER SHAFT HOUSING (Incl. 57) MTD-841-036238S
...
57
LOWER DRIVE SHAFT MTD-753-05267
...
58
GUARD/BLADE ASM (Incl. 59 & 60) MTD-841-032093S
...
59
BLADE GUARD MOUNTING HARDWARE MTD-753-04282
...
60
BLADE ASSEMBLY W/HDW MTD-753-08355
...
61
THROTTLE CABLE MTD-746P04758
...
62
GEARBOX LCBC (Incl. 63 - 65) MTD-753-08180
...
63
SCREW, 8-32 x .312 P MTD-791-182519
...
64
SCREW #10-24X11/16 T-25 MTD-791-182195
...
65
CUTTING HEAD SPACER MTD-748-05052
...
66
CUTTING HEAD (Incl. 67) MTD-841-036276S
...
67
CAP MTD-753-11344
