Craftsman CMXGTAMDSS30 WS4200 41ADSS30793 Handheld Product

Model: CMXGTAMDSS30 WS4200 41ADSS30793

Back To Assemblies

Save Part Not Listed?
product name

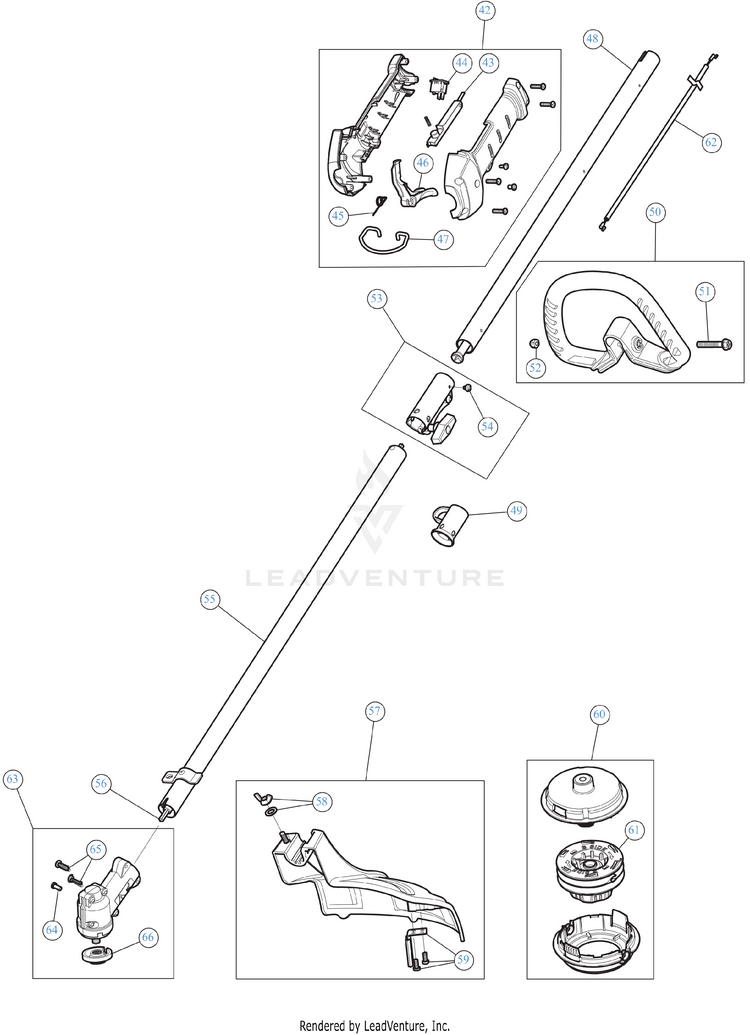

General Assembly

...
...
42
THROTTLE GRIP ASM (Incl. 43 - 47) MTD-753-09888
...
43
LEVER LOCK OUT MTD-731-08433C-10
...
44
SW, MOMENTARY ON/O MTD-791-182405
...
45
TRIGGER SPRING MTD-753-05007
...
46
THROTTLE TRIGGER MTD-731-04970B-10
...
47
SHOULDER STRAP CLIP MTD-732-06186
...
48
UPPER SHAFT HOUSING MTD-841-036087S
...
49
HANGER MTD-731-08926
...
50
HANDLE DLX (Incl. 51 & 52) MTD-753-06889
...
51
BOLT 1/4-20X1 1/2 MTD-753-06040
...
52
NUT 1/4-20 NYLOC MTD-2952
...
53
COUPLER ASSEMBLY (Incl. 54) MTD-753-09225
...
54
SCREW, 10-32X.250 TA MTD-791-182057
...
55
LOWER SHAFT (Incl. 56) MTD-841-036085S
...
56
LOWER DRIVE SHAFT MTD-753-05267
...
57
GUARD/BLADE ASM (Incl. 58 & 59) MTD-841-032093S
...
58
BLADE GUARD MOUNTING HARDWARE MTD-753-04282
...
59
BLADE ASSEMBLY W/HDW MTD-753-08355
...
60
CUTTING HEAD (Incl. 61) MTD-841-035512S
...
61
BUMP KNOB MTD-753-09365
...
62
THROTTLE CABLE MTD-746P04758
...
63
GEARBOX LCBC (Incl. 64 - 66) MTD-753-08180
...
64
SCREW, 8-32 x .312 P MTD-791-182519
...
65
SCREW #10-24X11/16 T-25 MTD-791-182195
...
66
CUTTING HEAD SPACER MTD-748-05052
