Craftsman CMXGTAMDAZ25 WS205 41BDAZ25791 Handheld Product

Model: CMXGTAMDAZ25 WS205 41BDAZ25791

Back To Assemblies

Save Part Not Listed?
product name

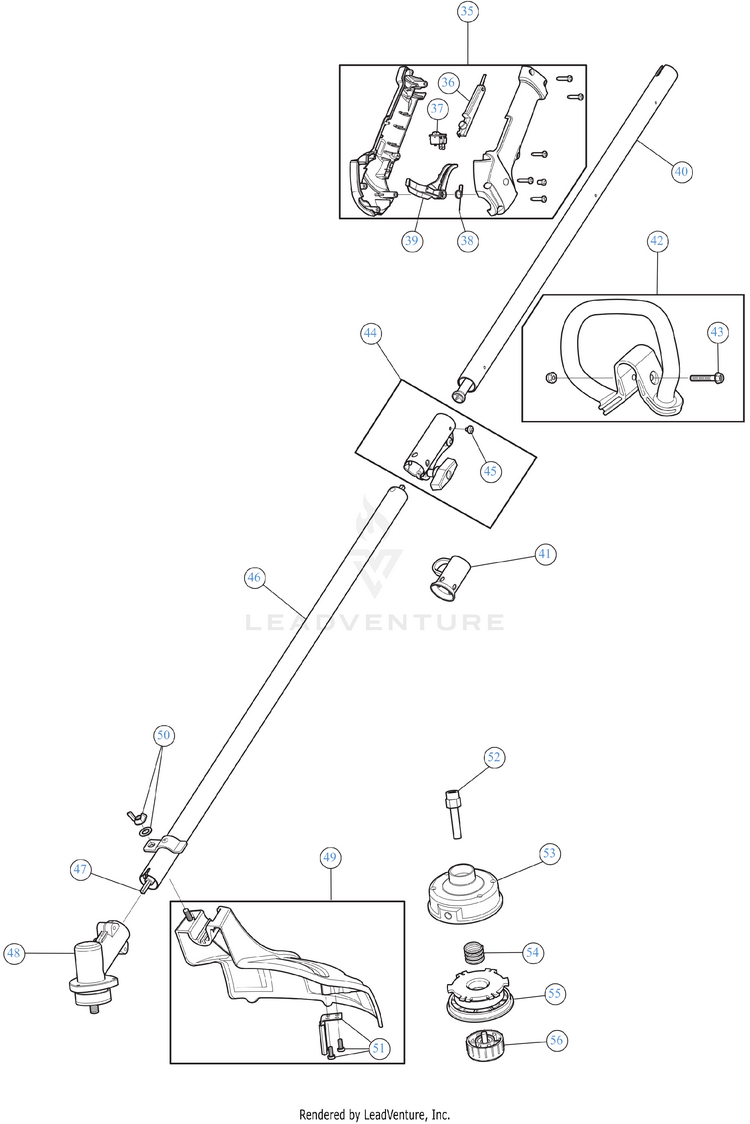

General Assembly

...
...
35
THROTTLE GRIP ASSEMBLY (Incl. 36 - 39) MTD-753-08344
...
36
LEVER LOCK OUT MTD-731-08433C-10
...
37
SW, MOMENTARY ON/O MTD-791-182405
...
38
TRIGGER SPRING MTD-753-05007
...
39
THROTTLE TRIGGER MTD-731-04970B-10
...
40
BOOM ASSEMBLY UPR MTD-753-06880
...
41
HANGER MTD-731-08926
...
42
D-HANDLE (Incl. 43) MTD-753-08042
...
43
BOLT 1/4-20X1 1/2 MTD-753-06040
...
44
COUPLER ASSEMBLY (Incl. 45) MTD-753-09225
...
45
SCREW, 10-32X.250 TA MTD-791-182057
...
46
LOWER BOOM ASSEMBLY MTD-753-08748
...
47
LOWER DRIVE SHAFT MTD-753-05267
...
48
GEARBOX MTD-697P01008
...
49
GUARD/BLADE ASM (Incl. 50 & 51) MTD-841-032093S
...
50
BLADE GUARD MOUNTING HARDWARE MTD-753-04282
...
51
BLADE ASSEMBLY W/HDW MTD-753-08355
...
52
SHAFT ADAPTER MTD-711-06397
...
53
OUTER REEL W/RETAINING RING MTD-753-04284
...
54
SPRING-SPOOL MTD-791-610317B
...
55
INNER REEL MTD-731-10724-49
...
56
BUMP KNOB (BLACK) MTD-841-050911S
