Craftsman CMXGLAM1143200 24BG57M1793 (2018) Log Splitter

Model: CMXGLAM1143200 24BG57M1793 (2018)

Back To Assemblies

Save Part Not Listed?
product name

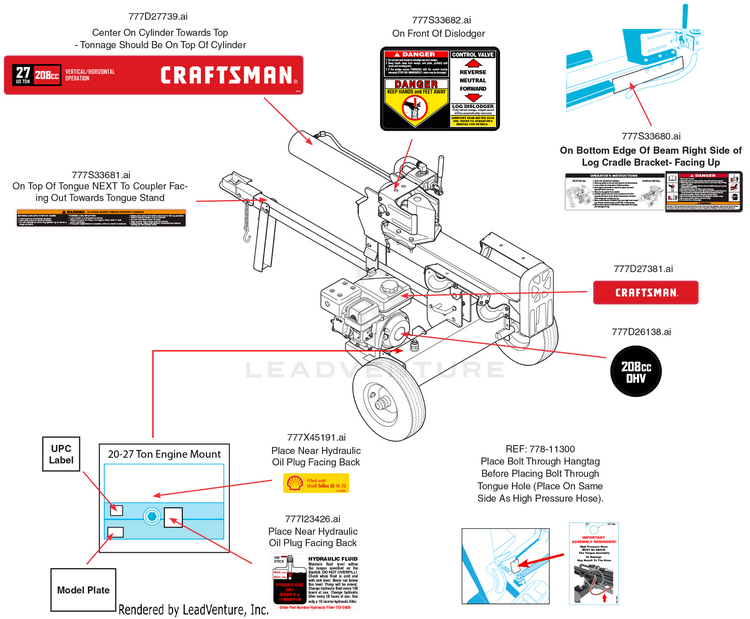

Label Map

...
...
xx
LABEL-SNOW ENG SBD CRFTSMN 208CC MTD-777D26138
...
xx
LABEL-27US TON 208CC SBD CRAFTSMAN MTD-777D27739
...
xx
LABEL-CRAFTSMAN LOGO SBD FUEL TANK MTD-777D27381
...
xx
LABEL-TANK FLUID LEVEL R MTD-777I23426
...
xx
LABEL-LGSPLTR INSTRUCTION/DANGER MTD-777S33680
...
xx
LABEL-LGSPLTR HITCH WARNING MTD-777S33681
...
xx
LABEL-LOG DISLODGER R MTD-777S33682
...
xx
LABEL-SHELL TELLUS S2 M 32 R MTD-777X45191
