Craftsman CMXGKAME30A E405 25A-E30-791 (2020) Electric Riding Mower

Model: CMXGKAME30A E405 25A-E30-791 (2020)

Save
 Part Not Listed?Part Not Listed?
product name

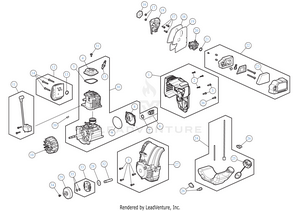

Engine Assembly

...
...
1
REAR ENGINE CVR (Incl. 2, 3 & 36) MTD-753-06134
...
2
SCREW 8-16 x 3/4 MTD-710-04194
...
3
SCREW M5-0.8 x 19 MTD-710-04604
...
4
ROCKER COVER MTD-753-05901
...
5
O-RING MTD-753-05902
...
6
OIL PLUG (Incl. 7) MTD-753-05408
...
7
RING, OIL PLUG (AC MTD-791-182290
...
8
CRANKCASE COVER MTD-753-06259
...
9
O-RING CRNKCSE CVR MTD-753-05238
...
10
FLYWHEEL ASSEMBLY AC3.1 MTD-753-06221
...
11
MODULE (ACX) MTD-753-10444
...
12
MUFFLER ASSEMBLY (Incl. 13 & 14) MTD-753-05245
...
13
GASKET/MUFFLER MTD-753-05244
...
14
SCREW M5 x 44MM MTD-710-04809
...
15
SPARK PLUG 4 CYCL MTD-794-00082
...
16
GASKET/INSULATOR MTD-753-05247
...
17
NUT 10-32 MTD-712-04099
...
18
CARB INSULATOR MTD-841-020801S
...
19
GASKET MTD-753-06948
...
20
CARBURETOR with Primer) MTD-751-16046-4
...
21
O-RING MTD-791-181751
...
22
AIR CLEANER (Incl. 23) MTD-841-034692S
...
23
AIR FILTER MTD-753-05996
...
24
FUEL TANK ASSEMBLY (Incl. 25) MTD-753-06797
...
25
FUEL CAP ASSEMBLY 43MM-6 W/O HOLE MTD-753-1229
...
26
FUEL TANK PADS MTD-753-05259
...
27
STARTER HOUSING (LIB RED) (Incl. 3) MTD-841P020981S
...
28
WASH, CLUTCH O.D. 1.155 +/- .0 MTD-9162-1
...
29
CLUTCH DRUM/PULLEY with Pulley) MTD-753-06573
...
30
SHORT BLOCK (Incl. 4-9 & 15) MTD-841P021441S
...
31
SCR, VALVE COVER MTD-791-181025
...
32
SPACER :2.165" MTD-750-04434
...
33
CLUTCH WITH SPACER (Incl. 35) MTD-753-1238
...
34
SCREW 8-32X.375 PH S MTD-791-182468
...
35
WASH, NORAM CLUTCH MTD-6674
...
36
SCR, M5 x 15.8MM MTD-9054
...
37
SCREW, M5 X18 MTD-9052-1
...
38
HEAT SHIELD MTD-753-06949
...
39
WOODRUFF KEY #403-.125 x .375 MTD-914-04016

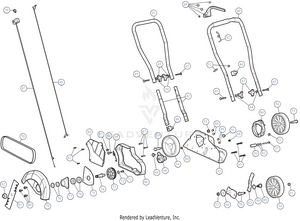

General Assembly

...
...
40
HANDLE UP MTD-753-06542
...
41
HANDLE MID MTD-753-06543
...
42
HANDLE EXT MTD-753-06544
...
43
KNOB, 3-PRONG ¼ "- MTD-791-182677
...
44
WASH, FLAT SPECIAL MTD-4150
...
45
BOLT, CARRIAGE CRV MTD-791-182899
...
46
CABLE GUIDE If Equipped MTD-731-1820
...
47
THROTTLE CABLE MTD-753-06546
...
48
THROTTLE LEVER MTD-753-10504
...
49
WIRE LEAD MTD-9681
...
50
SW, MOMENTARY ON/O MTD-791-182405
...
51
ROPE GUIDE MTD-753-05524
...
52
EDGER FRAME MTD-753-06593
...
53
NUT MTD-712-04065
...
54
WHEEL 5-1.5 GRAY MTD-734-04261
...
55
SHOULDER SCREW MTD-938-0373
...
56
SPACER MTD-750-04783
...
57
SCREW 1/4-20 x 2.375 MTD-710-1206
...
58
PIVOT ARM MTD-687-02582S
...
59
BELL WASHER MTD-736-0741
...
60
SHOULDER SCREW .75 X.50 X3/8-16 MTD-738-1172
...
61
HEX NUT INS L-3/8-16 MTD-712-0130
...
62
SPACER MTD-750-04929
...
63
Lever Ass'y MTD-687-02051
...
64
HEIGHT ADJUSTMENT BEARING MTD-741-04242
...
65
SCREW 1/4-20 x 1.750 MTD-710-1026
...
66
SPACER MTD-753-06556
...
67
SCREW 8-16X1.25 MTD-753-06559
...
68
IDLER PULLEY ASSEMBLY MTD-753-05540
...
69
SHOULDER SCREW .560X.165: 5/16-18 MTD-738-0930
...
70
BELT MTD-754-04149
...
71
SCREW 1/4-20X.75 GR5 MTD-710-3015
...
72
SPRING WASHER BELL MTD-736-0270
...
73
PULLEY MTD-756-04087B
...
74
BLADE SPINDLE MTD-753-05543
...
75
SPINDLE MOUNT PLATE MTD-787-01505
...
76
BALL BEARING MTD-741-04547
...
77
BEARING CUP MTD-718-04012
...
78
FLAT WASHER .635 x 1.24 x .181 MTD-736-04088
...
79
EDGER BLADE GUARD (W/LABEL) MTD-731P05064
...
80
SHOULDER SCREW .375X.280:1/4-14 MTD-738-0706D
...
81
EDGER BLADE MTD-781-0080-0637
...
82
HEX NUT MTD-712-0417A
...
83
SCREW 8-16 x 3/4 MTD-710-04194
...
84
BELT COVER MTD-731-05822
...
85
SPRING MTD-753-06562
...
86
BOLT 1/4-20 MTD-753-06563
...
87
SCREW 1/4-20 X.500 MTD-710-0599
...
88
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
89
FLANGE LOCK NUT MTD-712-04064
...
90
SPACER MTD-753-06566
...
91
NUT MTD-712-04230
...
92
SPRING MTD-753-06636

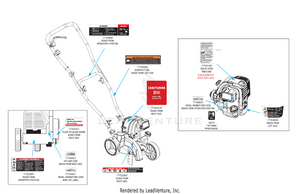

Label Map

...
...
xx
LABEL PRIME MTD-5847A
...
xx
LABEL EDGER DANGER MTD-777S32901
...
xx
LABEL BLADE GUARD MTD-777S32902
...
xx
LABEL AC3 EDGER MTD-777X42471
...
...
...
