product name

Craftsman CMXGAAMRBL25 B2200 41BRBL25793 Handheld Product

Model: CMXGAAMRBL25 B2200 41BRBL25793

Save Part Not Listed?
product name

Engine Assembly

...
...
1
HANDLE ASSEMBLY (Incl. 1 - 7) MTD-753-11133
...
2
HANDLE (LH) MTD-841-015663S
...
3
TRIGGER SPRING MTD-753-05007
...
4
SW, MOMENTARY ON/O MTD-791-182405
...
5
HANDLE (RH) MTD-731-26367
...
6
THROTTLE TRIGGER MTD-731-26366
...
7
SCREW M5X1.8 MTD-710-06915
...
8
IMPELLER HOUSING (RH) (Incl. 9) MTD-753-11134
...
9
SCREW 10/32 MTD-710-06341
...
10
IMPELLER ASSEMBLY (Incl. 11 - 13) MTD-753-08491
...
11
FLAT WASHER .401X.88 MTD-736-05080
...
12
LOCK WASHER MTD-736-04110A
...
13
NUT 3/8-24 MTD-712-04137
...
14
IMPELLER HOUSING ASSEMBLY (OUTER) (Incl. 25) MTD-753-09185
...
15
TUBE UPPER MTD-731-10598
...
16
NOZZLE MTD-731-11154
...
17
LOWER BLOWER TUBE MTD-841-051361S
...
18
FUEL TANK ASSEMBLY (Incl. 19 & 20) MTD-753-08508
...
19
NUT, TINNERMAN U-T MTD-791-182366
...
20
SCREW:10-6 x .75 MTD-791-181930
...
21
INTAKE COVER (Incl. 25) MTD-753-11135
...
22
SPACER MTD-750-06367
...
23
ENGINE ADAPTER (Incl. 9) MTD-753-08496
...
24
ENGINE COVER (Incl. 25) MTD-753-08510
...
25
SCREW 8-16 x 3/4 MTD-710-04194

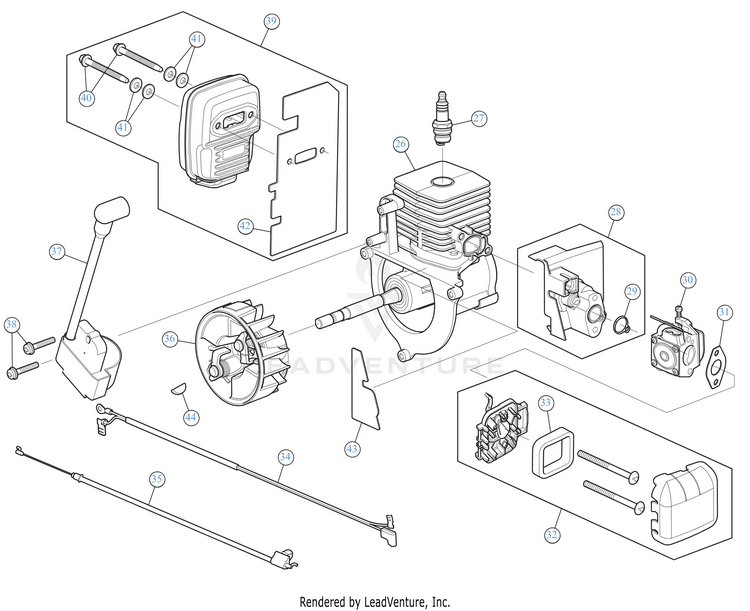

General Assembly

...
...
26
SHORT BLOCK MTD-753-09204
...
27
SPARK PLUG MTD-753-06847
...
28
INTAKE ASSEMBLY (Incl. 29) MTD-753-06189
...
29
O-RING MTD-753-06185
...
30
CARBURETOR MTD-753-06190
...
31
GASKET CARB MTD-753-06253
...
32
AIR CLEANER ASSEMBLY (Incl. 33) MTD-753-08498
...
33
AIR FILTER MTD-791-181757
...
34
WIRE LEAD MTD-725-06313
...
35
THROTTLE CABLE MTD-746-06971
...
36
FLYWHEEL ASSEMBLY MTD-753-08490
...
37
MODULE MTD-753-08489
...
38
SCREW 8-32X.750 MTD-710-06301
...
39
MUFFLER ASSEMBLY (Incl. 40 - 42) MTD-753-08488
...
40
MUFFLER SCREW MTD-753-06294
...
41
WASH, FLAT .480X.1 MTD-791-182568
...
42
GASKET MTD-721-04801
...
43
SHORTBLOCK GASKET MTD-721-04824
...
44
WOODRUFF KEY #403-.125 x .375 MTD-914-04016
