Craftsman CMXGAAMR32BP 41AR32BP793 Gas Blower

Model: CMXGAAMR32BP 41AR32BP793

Save Part Not Listed?
product name

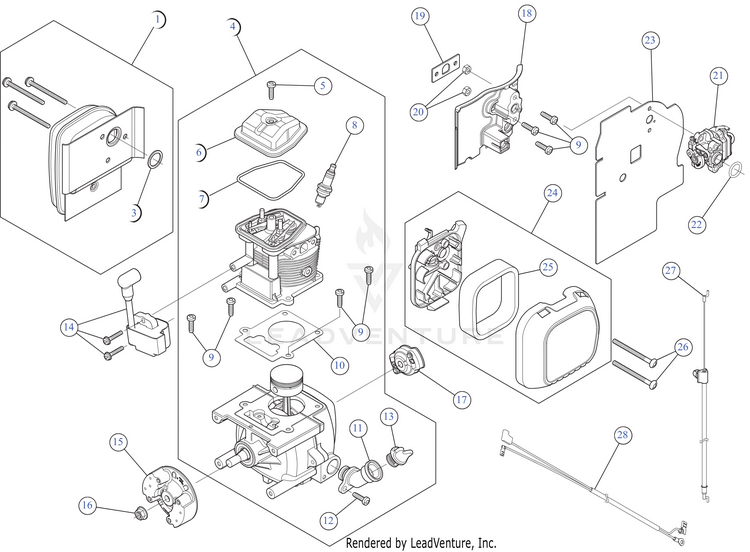

Engine Assembly

...
...
1
MUFFLER ASSEMBLY AC4 (Incl.2 & 3) MTD-753-05669
...
3
MUFFLER GASKET MTD-753-05670
...
4
SHORT BLOCK (Incl.5 - 13) MTD-753-08026
...
5
SCR, VALVE COVER MTD-791-181025
...
6
ROCKER COVER AC4 MTD-753-05671
...
7
O-RING ROCKER CVR MTD-753-05672
...
8
SPARK PLUG 4 CYCL MTD-794-00082
...
9
SCREW, M5 X18 MTD-9052-1
...
10
CYLINDER GASKET MTD-753-05681
...
11
OIL TUBE ASM AC4 NLAUD (Incl.12) MTD-753-05682
...
12
SCR, M5 x 15.8MM MTD-9054
...
13
Oil Plug (Incl Ref No. 9) MTD-753-05408
...
14
MODULE MA-95 MTD-753-05907
...
15
FLYWHEEL ASSEMBLY MTD-753-05688
...
16
NUT 3/8-24 MTD-712-04137
...
17
PAWL ASSEMBLY AC5 MTD-753-06091
...
18
INSULATOR CARB MTD-753-05674
...
19
INSULATOR GASKET MTD-753-05673
...
20
NUT 10-32 MTD-712-04099
...
21
CARBURETOR W/GASKET AND INSULATOR MTD-753-08025A
...
22
O-RING MTD-791-181751
...
23
CARB GASKET AC4 MTD-753-05675
...
24
AIR CLEANER ASSEMBLY (Incl.25) MTD-753-05852
...
25
AIR FILTER MTD-753-05677
...
26
SCREW 10-32X2.5 MTD-710-04517
...
27
THROTTLE CABLE MTD-753-05970
...
28
LEAD WIRES MTD-753-05690

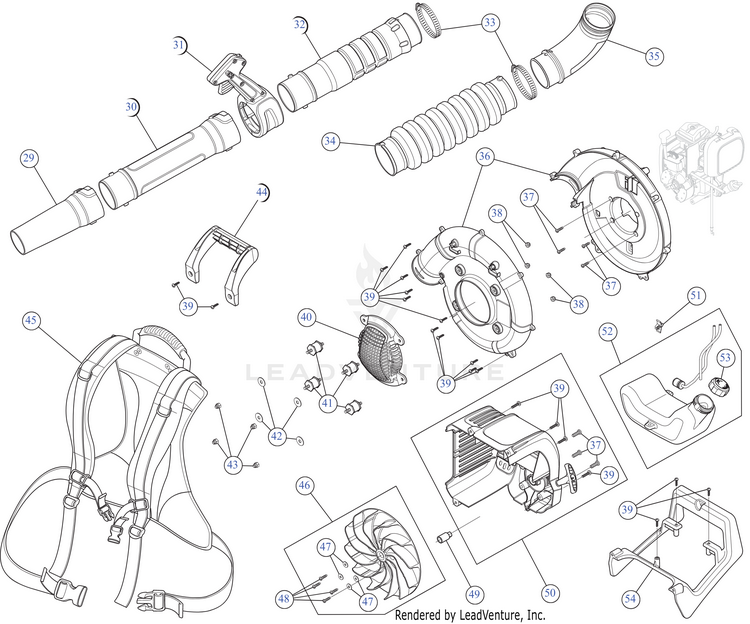

General Assembly

...
...
29
NOZZLE BKPK CUB MTD-753-06000
...
30
TUBE LOWER BKPK MTD-753-05971
...
31
GRIP ASSEMBLY 4CYBKPK MTD-753-05975
...
32
TUBE UPPER BKPK MTD-753-05991
...
33
HOSE CLAMP MTD-726-04080
...
34
TUBE BKPK MTD-753-05641
...
35
TUBE ELBOW BKPK MTD-753-05990
...
36
IMPELLER HOUSING ASSEMBLY (Incl.39) MTD-753-05658
...
37
SCREW M5X0.8 MTD-710-04604A
...
38
NUT 1/4-20 NYLOC MTD-2952
...
39
SCREW 8-16 x 3/4 MTD-710-04194
...
40
INTAKE COVER AC4 MTD-753-05649
...
41
INSULATOR MOUNT MTD-753-05648
...
42
WASH, FLAT SPECIAL MTD-4150
...
43
Acorn Lock Nut 1/4-20 MTD-712-0442
...
44
HANDLE MTD-731-06044-1
...
45
HARNESS MTD-751-15097
...
46
IMPELLER AC4BKPK (Incl.47 & 48) MTD-753-07100
...
47
WASH, FLAT .437X.2 MTD-791-182409
...
48
SCREW 5X25MM TAP T-25 MTD-792-9517-1
...
49
ELECTRIC START ADP MTD-753-06104
...
50
REAR ENGINE COVER (Incl.37 & 39) MTD-841P020901S
...
51
THROTTLE CABLE CLIP MTD-731-06074
...
52
FUEL TANK ASSEMBLY BKP (Incl.53) MTD-753-05715
...
53
FUEL CAP MTD-753-05289
...
54
STAND AC4 BKPK MTD-753-05663
