product name

Craftsman 490-900-M060 42lb Rear Weight Kit Snow Blower

Model: 490-900-M060 42lb Rear Weight Kit

Save Part Not Listed?
product name

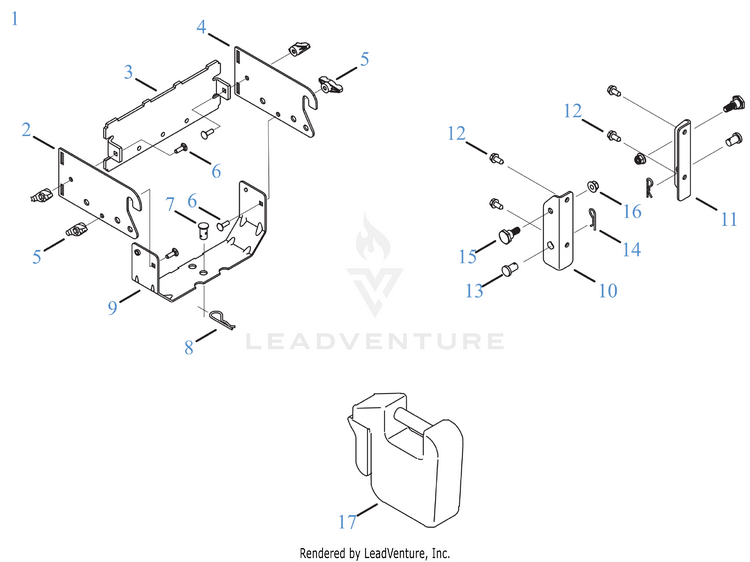

General Assembly

...
...
1
HITCH BRACKET ASSEMBLY MTD-689P00304A
...
2
Hitch Bracket, RH * Can only be ordered as an assembly. Use Ref No 1 to order. MTD-NA
...
3
Rear Attachment Bracket * Can only be ordered as an assembly. Use Ref No 1 to order. MTD-NA
...
4
Hitch Bracket, LH * Can only be ordered as an assembly. Use Ref No 1 to order. MTD-NA
...
5
WING KNOB 5/16-18 MTD-720-04122
...
6
CARRIAGE BOLT 5/16-18 x 1.00 MTD-710-0276
...
7
CLEVIS PIN .62 MTD-711-0309A
...
8
INTERNAL COTTER PIN MTD-714-0117
...
9
GRASSBAG HITCH BRACKET MTD-783-08129-0637
...
10
BRACKET (RH) MTD-783-05889A-0637
...
11
BRACKET (LH) MTD-783-05890A-0637
...
12
SCREW 5/16-18 x .750 MTD-710-04484
...
13
LIFT BRACKET PIN MTD-911-0332
...
14
INTERNAL COTTER PIN MTD-714-0145
...
15
SHOULDER SCREW .625 x .412 MTD-738-04267
...
16
NUT MTD-712-04065
...
17
GENUINE FACTORY PARTS® Suitcase Weight MTD-490-900-F059
...
17
Genuine Factory Parts WEIGHT - SUITCASE 42LB PLASTIC MTD-490-900-M059
...
xx
HARDWARE PACK For Ref No 1 HITCH BRACKET ASSEMBLY MTD-689-00328A
...
xx
KIT-HARDWARE BRACKET Ref #10-16 MTD-753-07017
...
xx
GENUINE FACTORY PARTS® Suitcase Weight Kit MTD-490-900-F060
...
xx
Genuine Factory Parts WEIGHT-SUITCASE 42LB PLASTIC W/BKT MTD-490-900-M060
