Craftsman 41EDZ47C799 (316.740930) Gas String Trimmer

Model: 41EDZ47C799 (316.740930)

Back To Assemblies

Save Part Not Listed?
product name

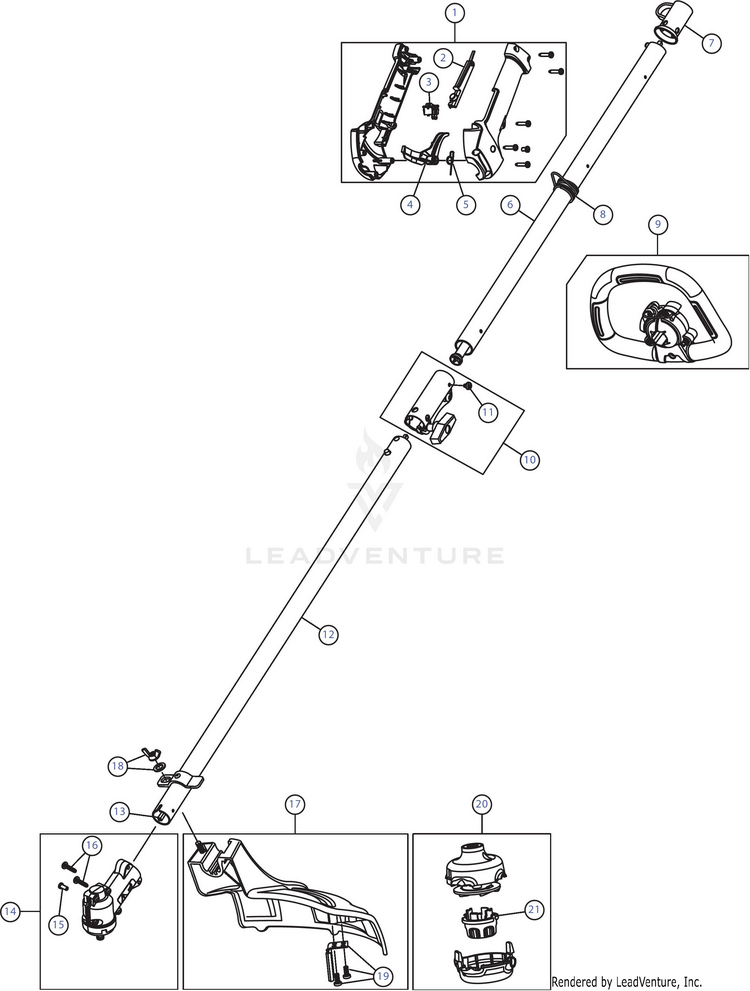

General Assembly

...
...
1
Throttle Housing Assembly (includes 2 - 5) MTD-753-06790
...
2
LOCK OUT LEVER MTD-731-08433C-5
...
3
Trigger Switch Assembly MTD-791-182405
...
4
TRIGGER SPRING MTD-753-05007
...
5
Throttle Trigger MTD-753-06861
...
6
Upper Drive Shaft Assembly MTD-753-08340
...
7
Hanger MTD-731-08926
...
8
SHOULDER STRAP CLAMP MTD-4301A
...
8
Shoulder Strap Clip MTD-791-610327
...
9
HANDLE ASSEMBLY D ADJ MTD-753-06873
...
10
Split Boom Coupler (includes 11) MTD-753-08690
...
11
Coupler Anti-Rotation Screw MTD-791-182057
...
12
BOOM ASSEMBLY LOWER MTD-753-08368
...
13
LOWER DRIVE SHAFT MTD-753-05267
...
14
Gearbox Assembly (includes 15 & 16) MTD-753-08180
...
15
Gearbox Anti-Rotation Screw MTD-791-182519
...
16
SCREW #10-24X11/16 T-25 MTD-791-182195
...
17
Shield Assembly (includes 18 & 19) MTD-753-08354
...
18
Shield Mounting Hardware MTD-753-04282
...
19
Blade Assembly MTD-753-08355
...
20
CUTTING HEAD MTD-753-09665
...
21
Bump Knob MTD-731-09582-1
...
xx
TUBE:LINE:SEARS DE MTD-697-00368
...
xx
Shoulder Strap MTD-795-00233
