Craftsman 41EDZ20C799 (316.740820) Gas String Trimmer

Model: 41EDZ20C799 (316.740820)

Save Part Not Listed?
product name

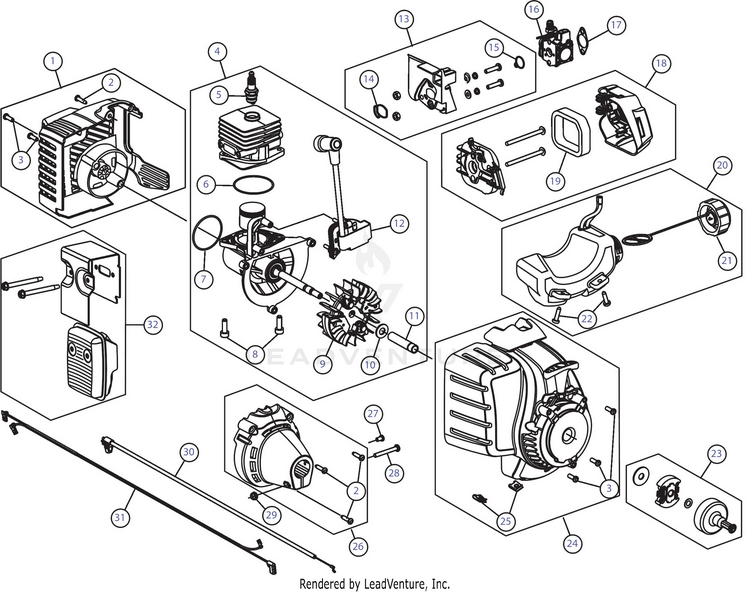

Engine Assembly

...
...
1
ENGINE COVER RR MTD-753-06919
...
2
Cover Screw MTD-791-181345
...
3
SCREW:10-32X.5 MTD-1964
...
4
Short Block Assembly (includes 5 - 12) MTD-753-06924
...
5
Spark Plug MTD-753-06847
...
6
Crankcase O-Ring MTD-753-06275
...
7
O-Ring MTD-753-06174
...
8
Crankcase Bolt MTD-791-182723
...
9
Flywheel Assembly MTD-753-06175
...
10
Washer MTD-753-06247
...
11
Spacer MTD-753-06218
...
12
Module Assembly MTD-753-06303
...
13
Insulator Assembly (includes 14 & 15) MTD-753-06189
...
14
Insulator O-Ring MTD-753-06184
...
15
Carburetor O-Ring MTD-753-06185
...
16
Carburetor MTD-753-06288
...
17
Air Cleaner Gasket MTD-753-06253
...
18
Air Cleaner Cover Assembly (includes 19) MTD-753-06500
...
19
Air Cleaner Filter MTD-753-06417
...
20
Fuel Tank Assembly (includes 21 & 22) MTD-753-06183
...
21
Fuel Tank Cap MTD-791-182612
...
22
Fuel Tank Screw MTD-791-181930
...
23
Clutch Assembly MTD-753-05860
...
24
STARTER HOUSING ASSEMBLY MTD-753-08168
...
25
U-shaped Nut MTD-791-182366
...
26
CLUTCH COVER MTD-753-06181
...
27
Anti-rotation Screw MTD-791-182519
...
28
SCREW MTD-9689A
...
29
Clamp Nut MTD-712-0161
...
30
THROTTLE CABLE MTD-746P04754
...
31
LEAD WIRES MTD-753-06583
...
32
MUFFLER ASSEMBLY MTD-753-08745

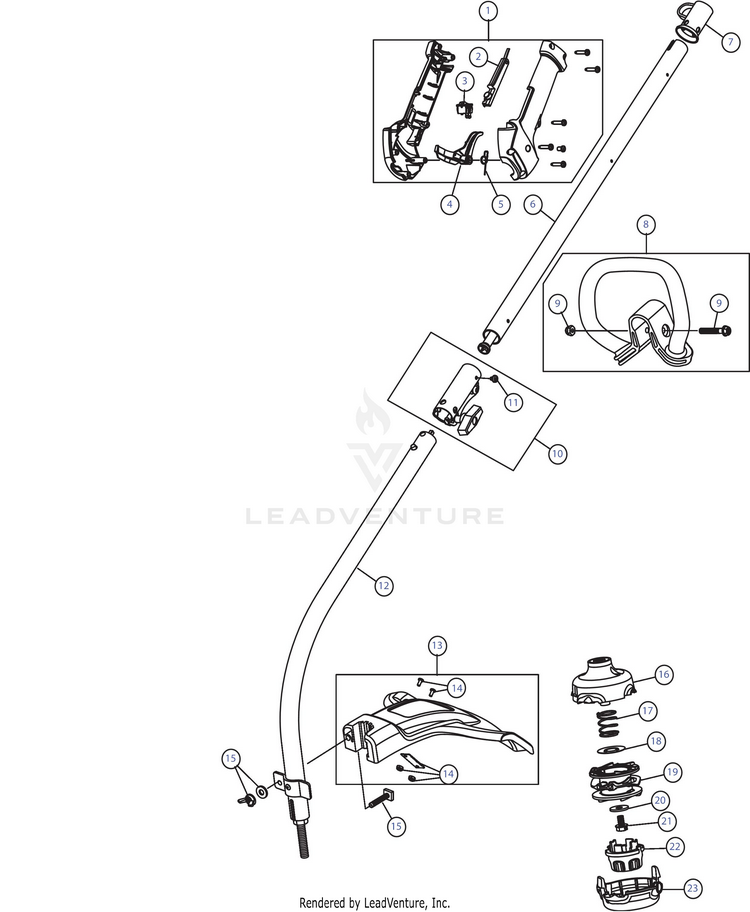

General Assembly

...
...
1
Throttle Housing Assembly (includes 2 - 5) MTD-753-06790
...
2
LOCK OUT LEVER MTD-731-08433C-5
...
3
Trigger Switch Assembly MTD-791-182405
...
4
TRIGGER SPRING MTD-753-05007
...
5
Throttle Trigger MTD-753-06861
...
6
Upper Shaft Housing Assembly MTD-753-06880
...
7
Hanger MTD-731-08926
...
8
D-Handle (includes 9) MTD-753-08042
...
9
D-Handle Bolt MTD-753-06040
...
10
Split Boom Coupler (includes 11) MTD-753-08690
...
11
Anti-Rotation Screw MTD-791-182057
...
12
Lower Shaft Housing Assembly MTD-753-08692
...
13
Shield Assembly (includes 14) MTD-753-04283
...
14
Blade Assembly MTD-791-180553
...
15
Shield Mounting Hardware MTD-753-04282
...
16
OUTER SPOOL 2N1 MTD-731-12543-5
...
17
Spring MTD-791-610636B
...
18
Cover MTD-797-00256
...
19
INNER REEL 2N1 MTD-731-12545A-1
...
20
Flat Washer MTD-736-04117
...
21
Bolt MTD-710-04562
...
22
Bump Knob MTD-731-09582-1
...
23
Snap Cap MTD-697-00701S
...
xx
.130 Hassle Free? XTRA QUIET Spiral Line MTD-753-06767
...
xx
EYELET MTD-728-04061
