Craftsman 41DDZ47C799 (316.731934) Gas String Trimmer

Model: 41DDZ47C799 (316.731934)

Save Part Not Listed?
product name

Engine Assembly

...
...
1
Top Housing MTD-731-10169-1
...
2
PRIMER BULB MTD-753-08319
...
3
O-RING AC8 MTD-721-04466
...
4
Intake Port MTD-731-10184A
...
5
Boot Assembly (Incl. 6 & 7) MTD-753-08053
...
6
SCREW, M5 X18 MTD-9052-1
...
7
Boot MTD-753-08053
...
8
AIRCLEANER ASSEMBLY MTD-753-08304
...
9
Screw MTD-753-06470
...
10
Carburetor Assembly (Incl. 11) MTD-753-08323
...
11
O-Ring MTD-791-181751
...
12
Screw MTD-710-06003
...
13
FUEL TANK ASSEMBLY MTD-753-08325
...
14
Fuel Tank Pad MTD-753-05259
...
15
Lead Wire MTD-794-00047A
...
16
Throttle Cable MTD-946-05123
...
17
Clutch Assembly (Incl. 18 & 19) MTD-753-05860
...
18
Thrust Washer MTD-6674
...
19
Clutch Washer MTD-9162-1
...
20
Spacer MTD-2557
...
21
Thrust Wash. .382" I.D. x .70" O.D. MTD-736-0314
...
22
Flywheel MTD-753-06246
...
23
Key MTD-914-04016
...
24
Module Assembly MTD-753-08482
...
25
Clutch Cover Assembly (Incl. 26 & 27) MTD-753-08322
...
26
Screw MTD-710-06284
...
27
Screw MTD-1755
...
28
Rear Engine Cover MTD-753-08060
...
29
Muffler Assembly (Incl. 30 & 31) MTD-753-08324
...
30
Screw MTD-710-04809
...
31
Muffler Gasket MTD-721-04508
...
xx
Air Filter MTD-751-12833

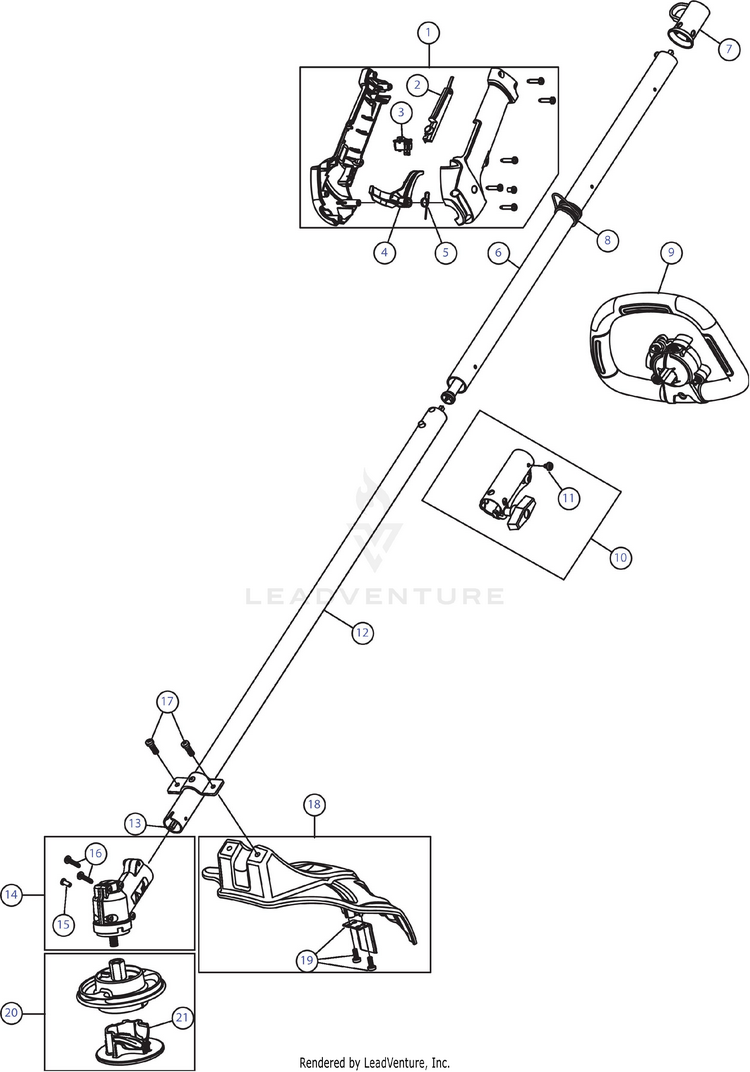

General Assembly

...
...
1
Throttle Housing Assembly (Incl. 2 - 5) MTD-753-06790
...
2
LOCK OUT LEVER MTD-731-08433C-5
...
3
Trigger Switch Assembly MTD-791-182405
...
4
TRIGGER SPRING MTD-753-05007
...
5
Throttle Trigger MTD-753-06861
...
6
Upper Drive Shaft Assembly MTD-753-08340
...
7
Hanger MTD-731-08926
...
8
SHOULDER STRAP CLAMP MTD-4301A
...
8
Shoulder Strap Clip MTD-791-610327
...
9
HANDLE ASSEMBLY D ADJ MTD-753-06873
...
10
Split Boom Coupler (Incl Ref No. 10-13) MTD-753-1190
...
11
Coupler Anti-Rotation Screw MTD-791-182057
...
12
BOOM ASSEMBLY LOWER MTD-753-08368
...
13
LOWER DRIVE SHAFT MTD-753-05267
...
14
Gearbox Assembly (Incl. 15 & 16) MTD-753-08180
...
15
Gearbox Anti-Rotation Screw MTD-791-182519
...
16
SCREW #10-24X11/16 T-25 MTD-791-182195
...
17
Shield Mounting Screws MTD-753-06125
...
18
Shield Assembly (Incl. 19) MTD-753-08177
...
19
Blade Assembly MTD-753-08178
...
20
Cutting Head Assembly (Incl. 21) MTD-753-08172
...
21
FIXED HEAD CAP MTD-731-05193
...
xx
TUBE:LINE:SEARS DE MTD-697-00368
...
xx
Shoulder Strap MTD-795-00233

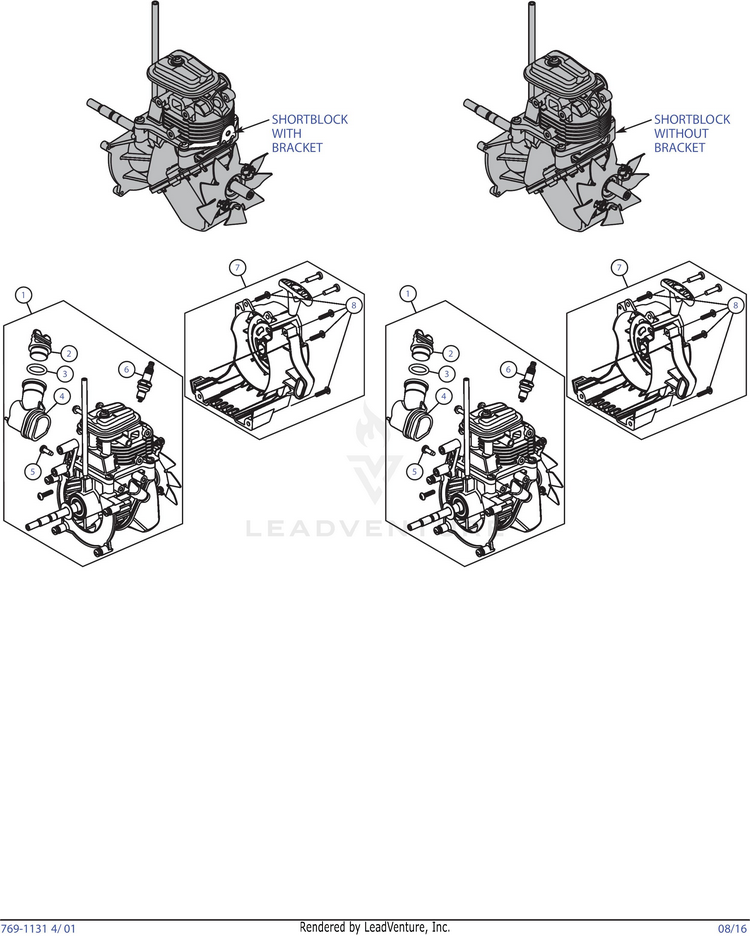

Shortblock

...
...
1
Shortblock Assembly (With Bracket) MTD-753-08337
...
1
Shortblock Assembly (Without Bracket) MTD-753-08671
...
2
Oil Fill Plug MTD-731-08920A-9
...
3
O-Ring MTD-721-04509
...
4
OIL FILL TUBE ASSEMBLY MTD-753-08204
...
5
Screw MTD-9054
...
6
Spark Plug MTD-794-00082
...
7
Starter Housing Assembly (Incl. 8) (With Bracket) MTD-753-08350
...
7
Starter Housing Assembly (Incl. 8) (Without Bracket) MTD-753-08668
...
8
Screw MTD-710-04194
