Craftsman 41DDZ46C799 (316.731972) Gas String Trimmer

Model: 41DDZ46C799 (316.731972)

Save Part Not Listed?
product name

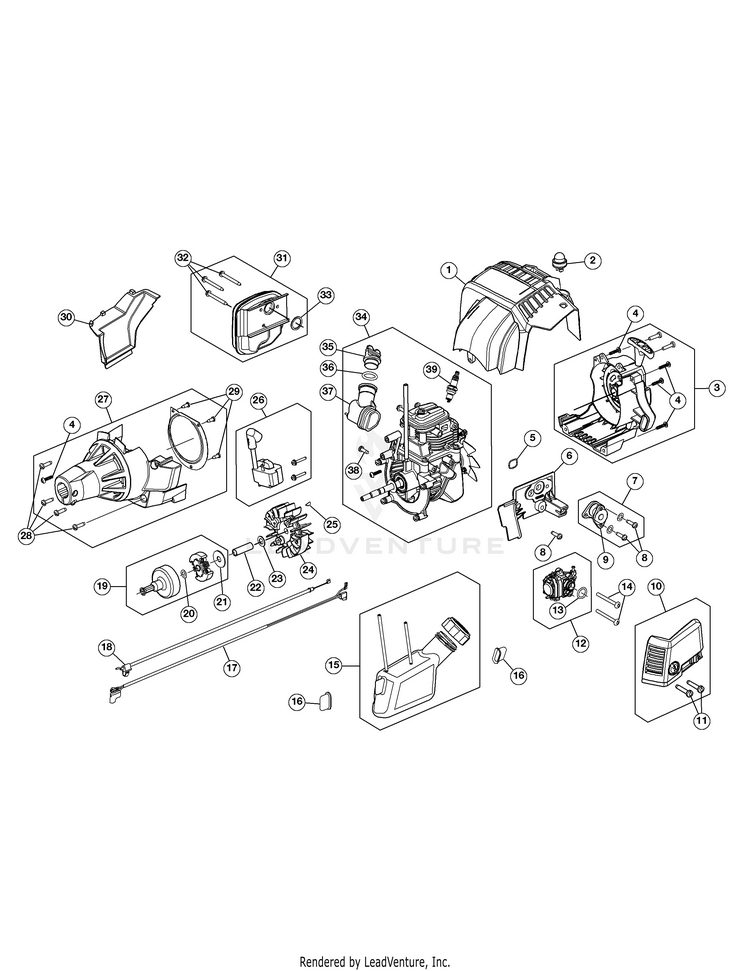

Engine Assembly

...
...
1
ENGINE COVER MTD-731-10169-5
...
2
UNIVERSAL FUEL LINE KIT MTD-49MFLRKK953
...
3
Starter Housing Assembly (Incl. 4) MTD-753-08350
...
4
Screw MTD-710-04194
...
5
O-RING AC8 MTD-721-04466
...
6
Intake Port MTD-731-10184A
...
7
Boot Assembly (Incl. 8 & 9) MTD-753-08053
...
8
SCREW, M5 X18 MTD-9052-1
...
9
Boot MTD-753-08053
...
10
Air Cleaner Assembly MTD-753-08349
...
11
Screw MTD-753-06470
...
12
Carburetor Assembly (Incl. 13) MTD-753-08057
...
13
O-Ring MTD-791-181751
...
14
Screw MTD-710-06003
...
15
FUEL TANK ASSEMBLY MTD-753-08325
...
16
Fuel Tank Pad MTD-753-05259
...
17
Lead Wire MTD-794-00047A
...
18
Throttle Cable MTD-746-05053
...
19
Clutch Assembly (Incl. 20 & 21) MTD-753-05860
...
20
Thrust Washer MTD-6674
...
21
Clutch Washer MTD-9162-1
...
22
Spacer MTD-2557
...
23
Thrust Wash. .382" I.D. x .70" O.D. MTD-736-0314
...
24
Flywheel MTD-753-06246
...
25
Key MTD-914-04016
...
26
MODULE ASSEMBLY MTD-753-08351
...
27
Clutch Cover Assembly (Incl. 28 & 29) MTD-753-08322
...
28
Screw MTD-710-06284
...
29
Screw MTD-1755
...
30
Rear Engine Cover MTD-753-08060
...
31
Muffler Assembly (Incl. 32 & 33) MTD-753-08324
...
32
Screw MTD-710-04809
...
33
Muffler Gasket MTD-721-04508
...
34
Shortblock Assembly (Incl. 35 - 39) MTD-753-08326
...
35
Oil Fill Plug MTD-731-08920A-9
...
36
O-Ring MTD-721-04509
...
37
OIL FILL TUBE ASSEMBLY MTD-753-08204
...
38
Screw MTD-9054
...
39
Spark Plug MTD-794-00082
...
xx
Air Filter (not shown) MTD-751-12833
...
xx
Corded Electric Starter Accessory (Optional Accessory) MTD-625-04120
...
xx
ELECTRIC START CHUCK (Optional Accessory) MTD-49MASCBP953
...
xx
ROUND LINE-.095 (Optional Accessory) MTD-49U2341K953
...
xx
OIL GENERIC 4CYL 90ML BTL LT (Optional Accessory) MTD-737-05815
...
xx
STA-BIL 32 OZ (Optional Accessory) MTD-22287

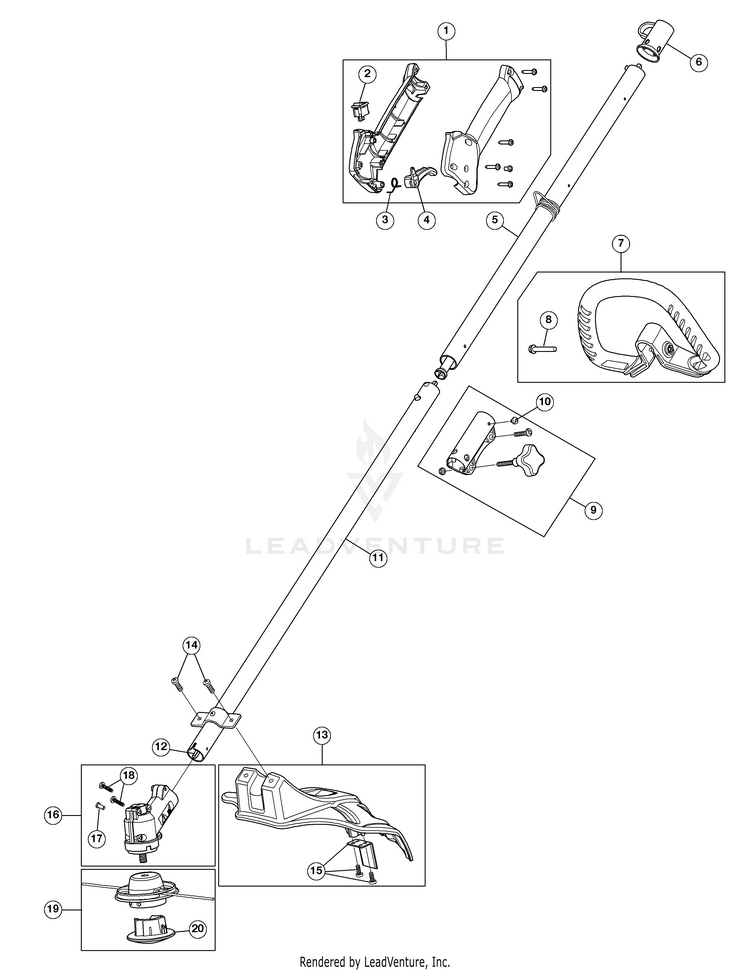

General Assembly

...
...
1
Throttle Housing Assembly (Incl. 2 - 4) MTD-753-06790
...
2
Trigger Switch Assembly MTD-791-182405
...
3
Throttle Trigger Spring MTD-791-182690
...
4
THROTTLE TRIGGER MTD-753-06791
...
5
BOOM ASSEMBLY UPR MTD-753-08352
...
6
Hanger MTD-731-08926
...
7
D-Handle Assembly (Incl. 8) MTD-753-06039
...
8
Bolt MTD-753-06040
...
9
Split Boom Coupler (Incl Ref No. 10-13) MTD-753-1190
...
10
Coupler Anti-Rotation Screw MTD-791-182057
...
11
BOOM ASSEMBLY LOWER MTD-753-08353
...
12
LOWER DRIVE SHAFT MTD-753-05267
...
13
Shield Assembly (Incl. 14 and 15) MTD-753-08177
...
14
Shield Mounting Screws MTD-753-06125
...
15
Blade Assembly MTD-753-08178
...
16
Gearbox Assembly (Incl. 17 and 18) MTD-753-08180
...
17
Gearbox Anti-Rotation Screw MTD-791-182519
...
18
SCREW #10-24X11/16 T-25 MTD-791-182195
...
19
HEAD ASSEMBLY DE MTD-753-06848
...
20
CAP DE MTD-753-06849
...
xx
TUBE:LINE:SEARS DE (Optional Accessory) MTD-697-00368
...
xx
Shoulder Strap (Optional Accessory) MTD-795-00233
