Craftsman 41DDZ45C799 (316.731703) Gas String Trimmer

Model: 41DDZ45C799 (316.731703)

Back To Assemblies

Save Part Not Listed?
product name

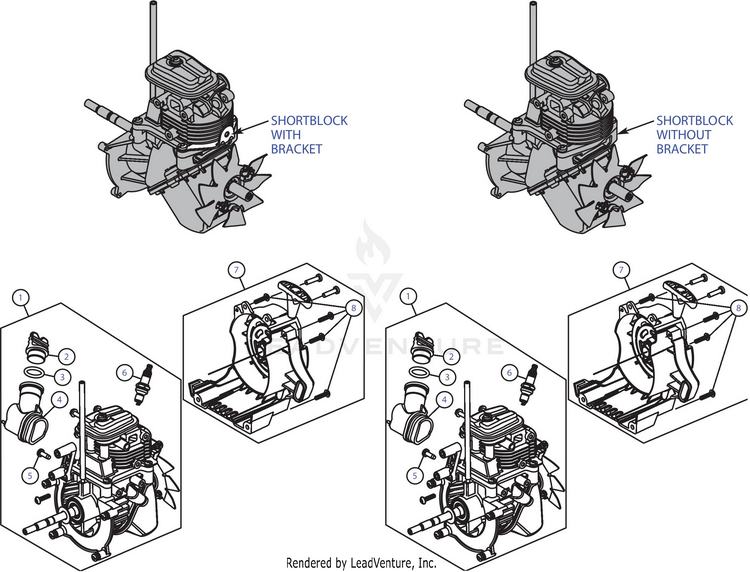

Shortblock

...
...
1
Shortblock Assembly (With Bracket) MTD-753-08326
...
1
Shortblock Assembly (Without Bracket) MTD-753-08670
...
2
Oil Fill Plug MTD-731-08920A-9
...
3
O-Ring MTD-721-04509
...
4
OIL FILL TUBE ASSEMBLY MTD-753-08204
...
5
Screw MTD-9054
...
6
Spark Plug MTD-794-00082
...
7
Starter Housing Assembly (includes 8) (With Bracket) MTD-753-08668
...
7
Starter Housing Assembly (includes 8) (Without Bracket) MTD-753-08350
...
8
Screw MTD-710-04194
