Craftsman 41CDZ23C799 (316.711171) Gas String Trimmer

Model: 41CDZ23C799 (316.711171)

Save Part Not Listed?
product name

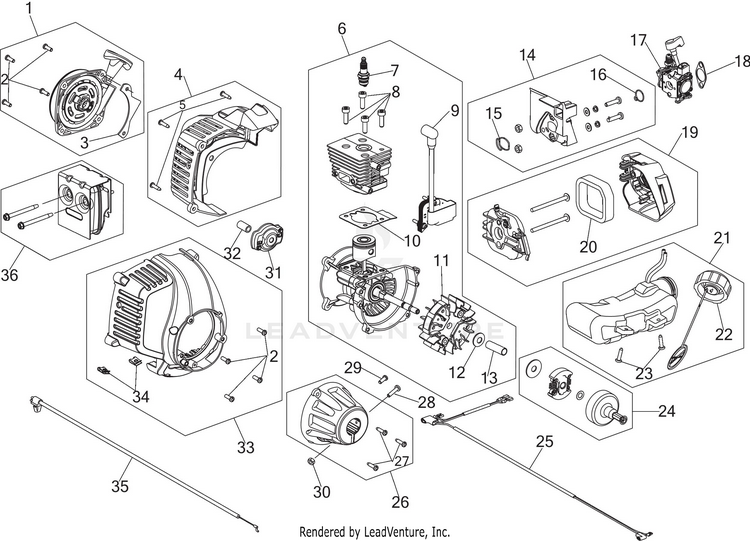

Engine Assembly

...
...
1
STARTER ASSEMBLY RR (includes 2 & 3) MTD-753-06829
...
2
SCREW:10-32X.5 MTD-1964
...
3
STARTER GUARD (includes 2) MTD-753-06244
...
4
ENGINE COVER ASSEMBLY RR (includes 5) MTD-753-06854
...
5
SCREW, #8-16X.750 PH MTD-791-181345
...
27
SCREW, #8-16X.750 PH MTD-791-181345
...
6
SHORTBLOCK 27CC (includes Crankcase, MTD-753-06858
...
7
Spark Plug MTD-753-06847
...
8
SCREW 1/4X20 MTD-710-04715
...
9
MODULE 27CC DIG MTD-753-06763
...
10
GASKET CYL MTD-753-06827
...
11
FLYWHEEL ASSEMBLY 27CC MTD-753-06246
...
12
BELL WASHER MTD-753-06247
...
13
SPACER MTD-753-06820
...
14
INTAKE ASSEMBLY (includes 15 & 16) MTD-753-06189
...
15
O-RING MTD-753-06184
...
16
O-RING MTD-753-06185
...
17
Carburetor MTD-753-06288
...
18
GASKET CARB MTD-753-06253
...
19
AIRCLEANER ASSEMBLY (includes 20) MTD-753-06953
...
20
AIR FILTER MTD-753-06954
...
21
FUEL TANK ASSEMBLY (includes 22 & 23) MTD-753-06250
...
22
FUEL CAP MTD-753-06857
...
23
SCREW:10-6 x .75 MTD-791-181930
...
24
SMALL CLUTCH ASSEMBLY W/SMALL DRUM MTD-753-05860
...
25
LEAD WIRES MTD-753-05877
...
26
CLUTCH COVER ASSEMBLY (includes 27) MTD-753-06822
...
28
SCREW MTD-9689A
...
29
SCREW, 8-32 x .312 P MTD-791-182519
...
30
HEX NUT MTD-712-0161
...
31
PAWL ASSEMBLY AC5 MTD-753-06091
...
32
ELECTRIC START ADP MTD-753-06104
...
33
ENGINE COVER ASSEMBLY FRT (includes 2 & 34) MTD-753-06855
...
34
NUT, TINNERMAN U-T MTD-791-182366
...
35
THROTTLE CABLE MTD-753-06251
...
36
MUFFLER ASSEMBLY MTD-753-08745

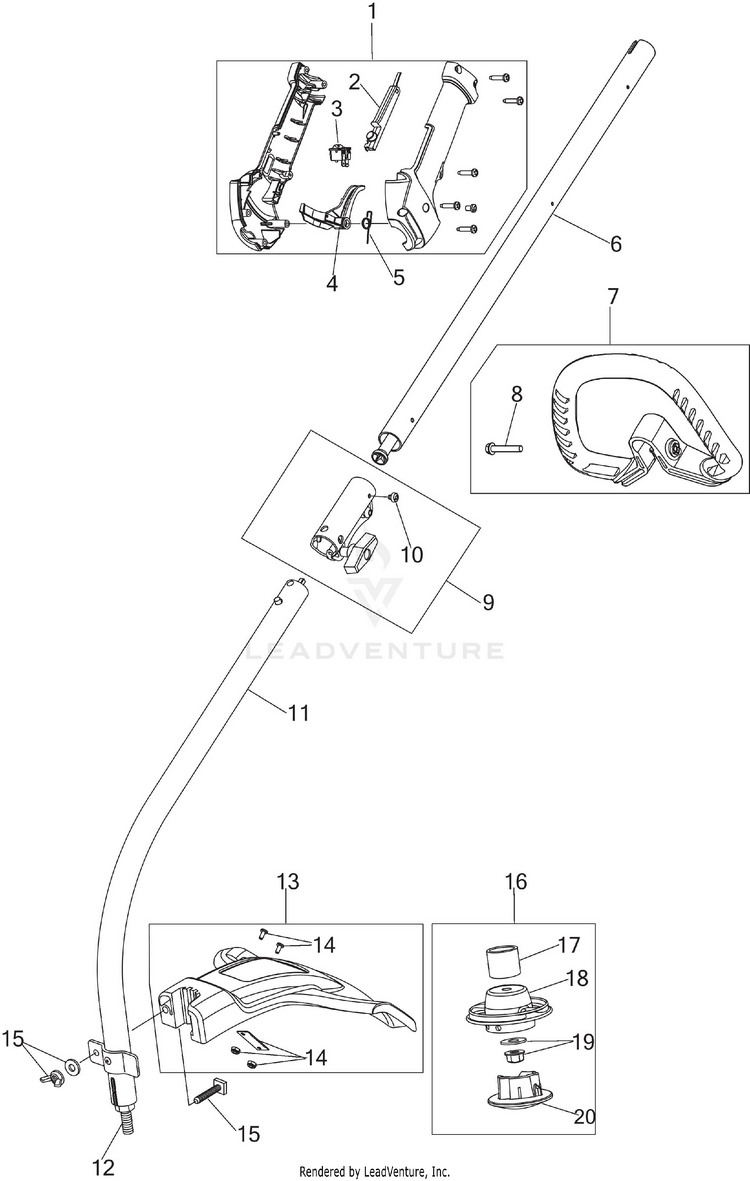

General Assembly

...
...
1
THROTTLE GRIP ASSEMBLY (includes 2 - 5) MTD-753-06790
...
2
LOCK OUT LEVER MTD-731-08433B-5
...
3
SW, MOMENTARY ON/O MTD-791-182405
...
4
THROTTLE TRIGGER MTD-753-06861
...
5
TRIGGER SPRING MTD-753-05007
...
6
BOOM ASSEMBLY UPR MTD-753-06880
...
7
HANDLE ASSEMBLY (includes 8) MTD-753-06039
...
8
BOLT 1/4-20X1 1/2 MTD-753-06040
...
9
Split Boom Coupler (Incl Ref No. 10-13) (includes 10) MTD-753-1190
...
10
SCREW, 10-32X.250 TA MTD-791-182057
...
11
BOOM ASSEMBLY LOWER (includes 12) MTD-753-06865
...
12
DRIVE SHAFT LOWER MTD-753-06864
...
13
GUARD ASSEMBLY (includes 14) MTD-753-04283
...
14
ASSEMBLY, BLADE MTD-791-180553
...
15
BLADE GUARD MOUNTING HARDWARE MTD-753-04282
...
16
HEAD ASSEMBLY DE HF MTD-753-06869
...
17
WEED GUARD MTD-753-06866
...
18
HEAD DE HF MTD-753-06867
...
19
MOUNTING HDW DE HF MTD-753-06868
...
20
CAP DE MTD-753-06849
