Craftsman 41CDZ22C799 (316.711192) Gas String Trimmer

Model: 41CDZ22C799 (316.711192)

Save Part Not Listed?
product name

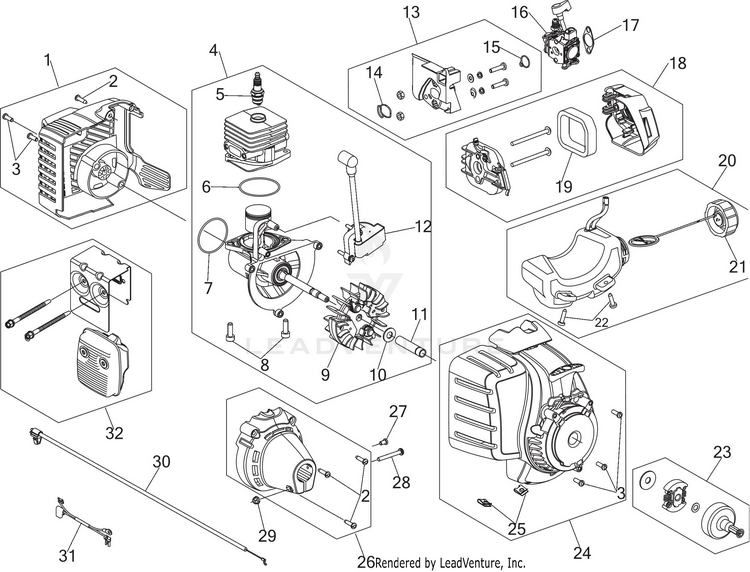

Engine Assembly

...
...
1
ENGINE COVER RR (includes 2 & 3) MTD-753-06919
...
2
SCREW, #8-16X.750 PH MTD-791-181345
...
3
SCREW:10-32X.5 MTD-1964
...
4
SHORTBLOCK (includes 5 - 12) MTD-753-06924
...
5
SPARK PLUG MTD-753-06847
...
6
O-RING MTD-753-06275
...
7
O-RING MTD-753-06174
...
8
SCREW, 1/4-20 x .75 MTD-791-182723
...
9
FLYWHEEL ASSEMBLY MTD-753-06175
...
10
BELL WASHER MTD-753-06247
...
11
SPACER MTD-753-06218
...
12
MODULE MA-103 MTD-753-06303
...
13
INTAKE ASSEMBLY (includes 14 & 15) MTD-753-06189
...
14
O-RING MTD-753-06184
...
15
O-RING MTD-753-06185
...
16
Carburetor MTD-753-06288
...
17
GASKET CARB MTD-753-06253
...
18
AIRCLEANER COVER ASSEMBLY (includes 19) MTD-753-06500
...
19
AIR FLITER MTD-753-06417
...
20
FUEL TANK ASSEMBLY (includes 21 & 22) MTD-753-06183
...
21
FUEL CAP ASSEMBLY MTD-791-182612
...
22
SCREW:10-6 x .75 MTD-791-181930
...
23
SMALL CLUTCH ASSEMBLY W/SMALL DRUM MTD-753-05860
...
24
STARTER HOUSING RED (includes 3 & 25) MTD-753-06530
...
25
NUT, TINNERMAN U-T MTD-791-182366
...
26
CLUTCH COVER (includes 2) MTD-753-06181
...
27
SCREW, 8-32 x .312 P MTD-791-182519
...
28
SCREW MTD-9689A
...
29
HEX NUT MTD-712-0161
...
30
THROTTLE CABLE MTD-746P04754
...
31
WIRE LEADS MTD-753-06187
...
32
MUFFLER ASSEMBLY MTD-753-08745

General Assembly

...
...
xx
LINE-TUBE .110 (Not Shown) MTD-753-06767
...
1
THROTTLE GRIP ASSEMBLY (includes 2 - 5) MTD-753-06790
...
2
LOCK OUT LEVER MTD-731-08433B-5
...
3
SW, MOMENTARY ON/O MTD-791-182405
...
4
TRIGGER SPRING MTD-753-05007
...
5
THROTTLE TRIGGER MTD-753-06861
...
6
BOOM ASSEMBLY UPR MTD-753-06880
...
7
HANDLE ASSEMBLY (includes 8) MTD-753-06039
...
8
BOLT 1/4-20X1 1/2 MTD-753-06040
...
9
Split Boom Coupler (Incl Ref No. 10-13) (includes 10) MTD-753-1190
...
10
SCREW, 10-32X.250 TA MTD-791-182057
...
11
BOOM ASSEMBLY W/BRA (includes 12) MTD-753-06139
...
12
LOWER DRIVE SHAFT MTD-753-05267
...
13
GEAR BOX ASSEMBLY DE110 (includes 14, 18 - 20) MTD-753-06897
...
14
SCREW 8-32X.437 MTD-7039
...
15
GUARD & BLADE ASSEMBLY (includes 16 & 17) MTD-753-08360
...
16
BLADE GUARD MOUNTING HARDWARE MTD-753-04282
...
17
BLADE ASSEMBLY W/HDW MTD-753-08355
...
18
HEAD ASSEMBLY DE HF (includes 19 & 20) MTD-753-06764
...
19
PUSH NUT .375 MTD-791-610661
...
20
CAP MTD-753-06765
