Craftsman 41CD396C799 (316.795861) Gas String Trimmer

Model: 41CD396C799 (316.795861)

Save Part Not Listed?
product name

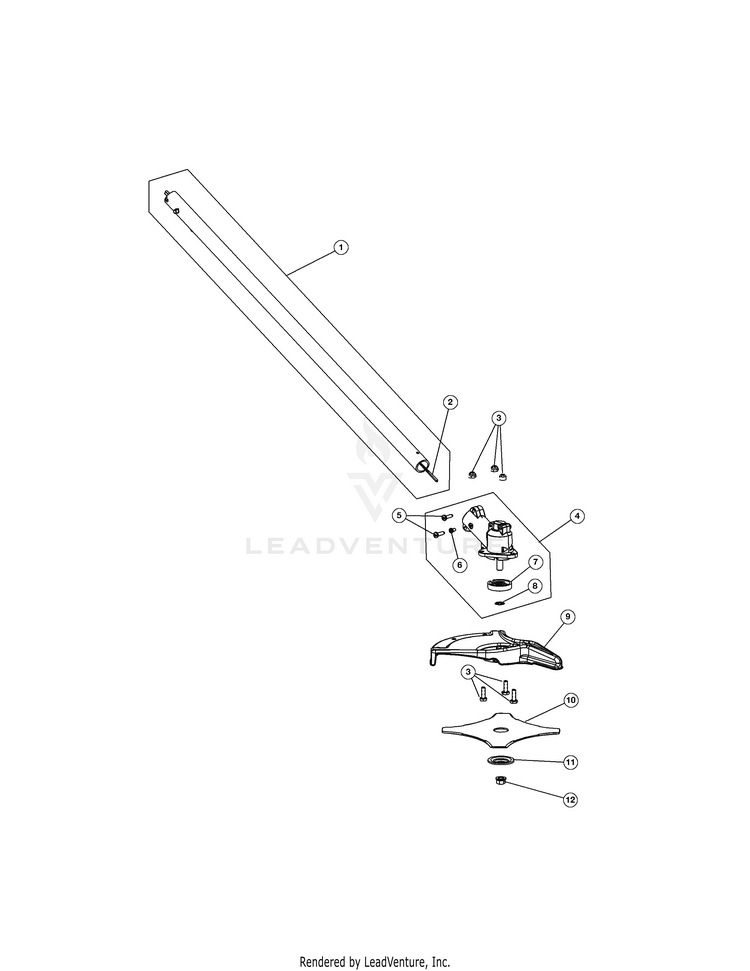

Brushcutter Assembly

...
...
1
Lower Drive Shaft Housing Assembly (Incl Ref No. 2) MTD-791-160226
...
2
LOWER DRIVE SHAFT MTD-753-05267
...
3
Shield Mount Screw Assembly MTD-791-182200
...
4
2-Piece Gear Box Assembly (Incl Ref No. 5-8) MTD-791-182193
...
5
SCREW #10-24X11/16 T-25 MTD-791-182195
...
6
Anti-Rotation Screw MTD-791-182519
...
7
Blade Driver MTD-791-182196
...
8
Palnut MTD-753-04348
...
9
Blade Shield/Shield Mount MTD-791-147492
...
10
4-Tooth Blade MTD-791-145873B
...
11
Retaining Washer MTD-791-147490
...
12
Nut MTD-712-04105
...
xx
Blade Retaining Kit (Incl Ref No. 11 & 12) Not shown MTD-791-180014B
...
xx
Locking Rod Tool Not shown MTD-791-613226
...
xx
Shoulder Harness Not shown MTD-791-682075B
...
xx
Hanger Not shown MTD-731-08926

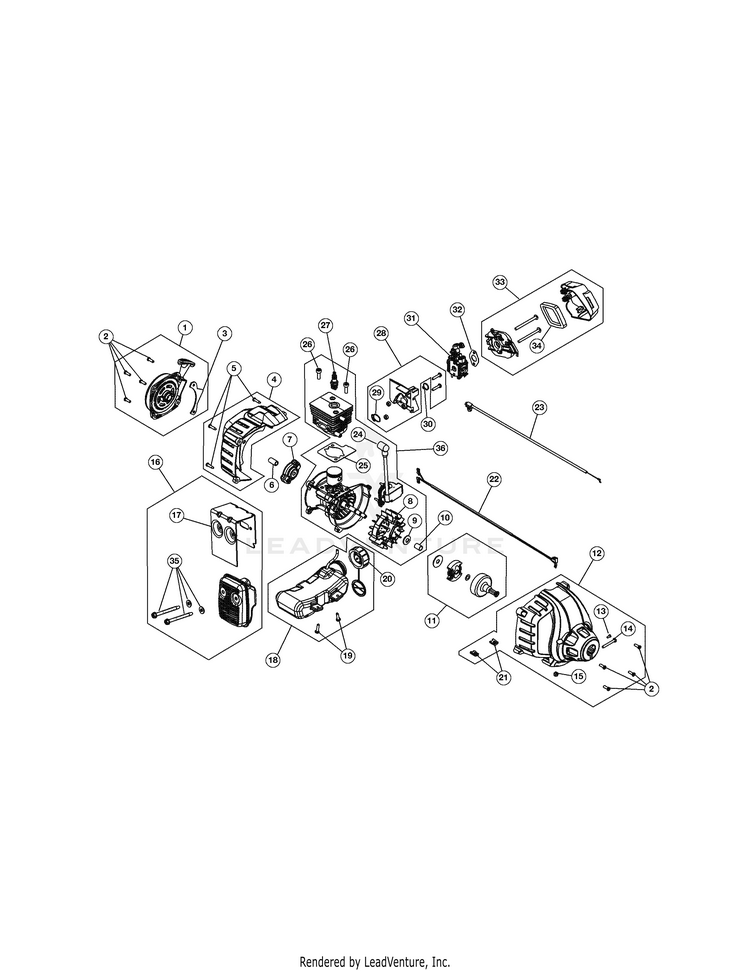

Engine Assembly

...
...
1
Rear Cover Assembly (Incl Ref No. 2 & 3) MTD-753-06282
...
2
SCREW:10-32X.5 MTD-1964
...
3
Starter Assembly Guard (Incl Ref No. 2) MTD-753-06244
...
4
REAR ENGINE COVER MTD-753-06245
...
5
Cover Screw MTD-791-181345
...
6
Adapter MTD-753-06104
...
7
Pawl Assembly MTD-753-06091
...
8
FLYWHEEL ASSEMBLY 27CC MTD-753-06246
...
9
Washer MTD-753-06247
...
10
Spacer MTD-753-06248
...
11
Clutch Assembly MTD-753-05860
...
12
CLUTCH COVER ASSEMBLY SRS MTD-753-06285
...
13
Anti-Rotation Screw MTD-791-182519
...
14
SCREW MTD-9689A
...
15
Clamp Nut MTD-712-0161
...
16
MUFFLER ASSEMBLY MTD-753-08745
...
17
Muffler Gasket MTD-753-06419
...
18
Fuel Tank Assembly (Incl Ref No. 19 & 20) MTD-753-06250
...
19
Tank Screw MTD-791-181930
...
20
CAP ASSEMBLY:FUEL:BK MTD-753-05057
...
21
U-Shaped Nut MTD-791-182366
...
22
Lead Wires MTD-753-05877
...
23
Throttle Cable MTD-753-06570
...
24
Module Assembly MTD-753-06303
...
25
GASKET:CYL MTD-753-06440
...
26
Cylinder Bolt MTD-710-04715
...
27
Spark Plug MTD-753-06847
...
28
Insulator Assembly (Incl Ref No. 29 & 30) MTD-753-06189
...
29
Insulator O-Ring MTD-753-06184
...
30
Carburetor O-Ring MTD-753-06185
...
31
Carburetor MTD-753-06288
...
32
Carburetor Gasket MTD-753-06253
...
33
Aircleaner Assembly (Incl Ref No. 34) MTD-753-06500
...
34
Aircleaner Filter MTD-753-06417
...
35
Muffler Screw MTD-753-06294
...
36
SHORT BLOCK (Incl Crankcase, Cylinder, Piston, 8-10 & 24-27) MTD-753-06501

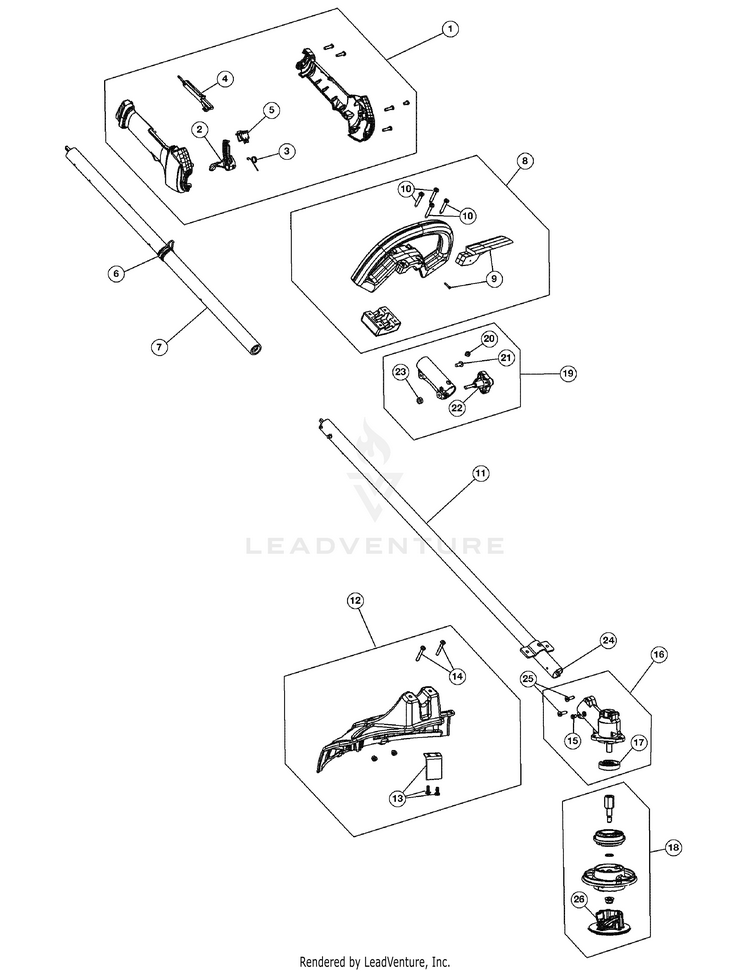

Trimmer Assembly

...
...
1
Throttle Housing Assembly (Incl Ref No. 2-5) MTD-753-05192
...
2
Throttle Trigger MTD-731-04970B-10
...
3
TRIGGER SPRING MTD-753-05007
...
4
LOCK OUT LEVER MTD-731-04971B-10
...
5
Switch MTD-791-182405
...
6
SHOULDER STRAP CLAMP MTD-4301A
...
6
Shoulder Strap Clip MTD-791-610327
...
7
Upper Drive Shaft Housing Assembly MTD-753-04236
...
8
D-Handle Assembly (Incl Ref No. 9 & 10) MTD-753-05008
...
9
BARRIER BAR ASSEMBLY MTD-753-05295
...
10
Screw MTD-791-181070
...
11
Lower Drive Shaft Housing Assembly MTD-753-06139
...
12
Shield Assembly (Incl Ref No. 13 & 14) MTD-753-06292
...
13
Blade Assembly MTD-753-06126
...
14
Screw MTD-753-06125
...
15
Anti-Rotation Screw MTD-791-182519
...
16
Gear Box (Incl Ref No. 15, 17 & 25) MTD-791-182193
...
17
Gear Box Spacer MTD-791-182196
...
18
Cutting Head Assembly (Incl. 21) MTD-753-05045
...
19
Split Boom Coupler (Incl Ref No. 20-23) MTD-753-1190
...
20
Screw MTD-791-182057
...
21
Bolt MTD-791-181617
...
22
CLICK LINK CLAMP MTD-697-00661-9
...
23
Knob Retaining Nut MTD-712-04018A
...
24
LOWER DRIVE SHAFT MTD-753-05267
...
25
SCREW #10-24X11/16 T-25 MTD-791-182195
...
26
FIXED HEAD CAP MTD-731-05193
...
xx
TUBE:LINE:SEARS DE Not shown MTD-697-00368
