Craftsman 41BDZ46C799 (316.731971) Gas String Trimmer

Model: 41BDZ46C799 (316.731971)

Save Part Not Listed?
product name

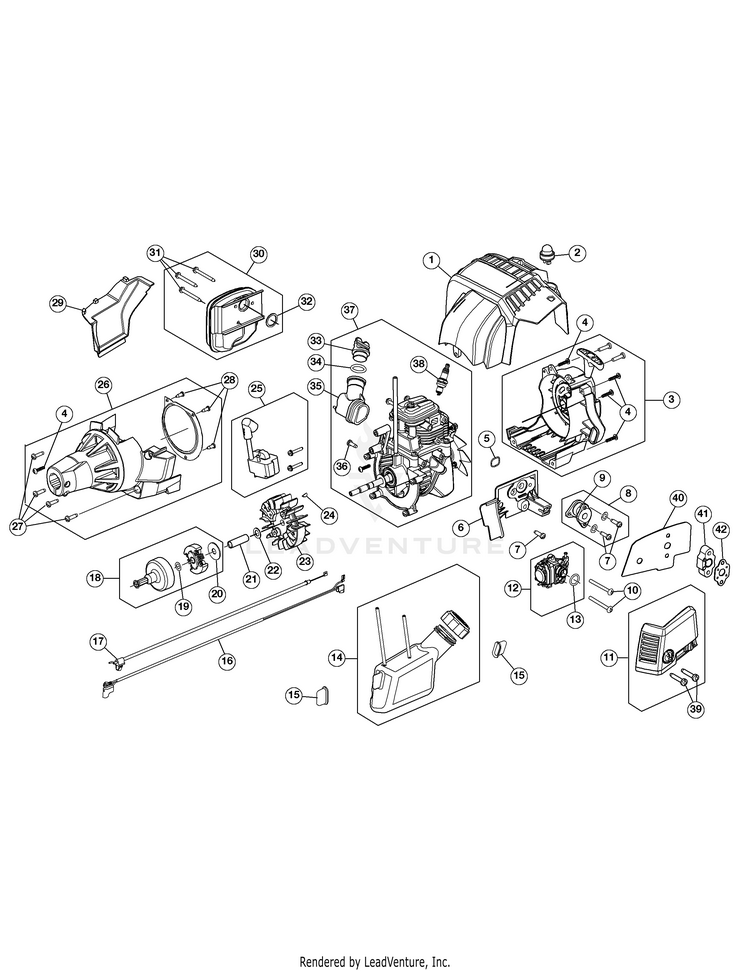

Engine Assembly

...
...
1
TOP HOUSING AC8 SEARS MTD-753-08065
...
2
UNIVERSAL FUEL LINE KIT MTD-49MFLRKK953
...
3
Starter Housing Assembly (Incl. 4) MTD-941-031703S
...
4
Screw MTD-710-04194
...
5
O-RING AC8 MTD-721-04466
...
6
Intake Port MTD-731-08365
...
7
SCREW, M5 X18 MTD-9052-1
...
8
Boot Assembly (Incl. 8 & 10) MTD-753-08053
...
9
Boot Assembly (includes 8 & 9) MTD-753-08053
...
10
Screw MTD-710-04517
...
11
Air Cleaner Assembly MTD-753-08067
...
11
Air Filter (not shown) MTD-751-12833
...
12
Carburetor Assembly (Incl. 13) MTD-753-08057
...
13
O-Ring MTD-791-181751
...
14
FUEL TANK ASSEMBLY MTD-941-031506S
...
15
Fuel Tank Pad MTD-753-05259
...
16
Lead Wire MTD-794-00047A
...
17
Throttle Cable MTD-746-05053
...
18
Clutch Assembly (Incl. 19 & 20) MTD-753-05860
...
19
Thrust Washer MTD-6674
...
20
Clutch Washer MTD-9162-1
...
21
Spacer MTD-2557
...
22
Thrust Wash. .382" I.D. x .70" O.D. MTD-736-0314
...
23
Flywheel MTD-753-06246
...
24
Key MTD-914-04016
...
25
MODULE MTD-753-08209
...
26
CLUTCH COVER ASSEMBLY MTD-753-08056
...
27
SCREW M5X0.8 MTD-710-04604A
...
28
Screw MTD-1755
...
29
Rear Engine Cover MTD-753-08060
...
30
MUFFLER ASSEMBLY MTD-753-08205
...
31
Screw MTD-710-04809
...
32
Muffler Gasket MTD-721-04508
...
33
Oil Fill Plug MTD-731-08920A-9
...
34
O-Ring MTD-721-04509
...
35
OIL FILL TUBE ASSEMBLY MTD-753-08204
...
36
Screw MTD-9054
...
37
Shortblock Assembly (Incl. 38) MTD-941-012021S
...
38
Spark Plug MTD-794-00082
...
39
Screw MTD-710-06106
...
40
Carburetor Gasket MTD-721-04631
...
41
Insulator MTD-753-06938
...
42
Insulator Gasket MTD-791-181751
...
xx
Air Filter MTD-751-12833

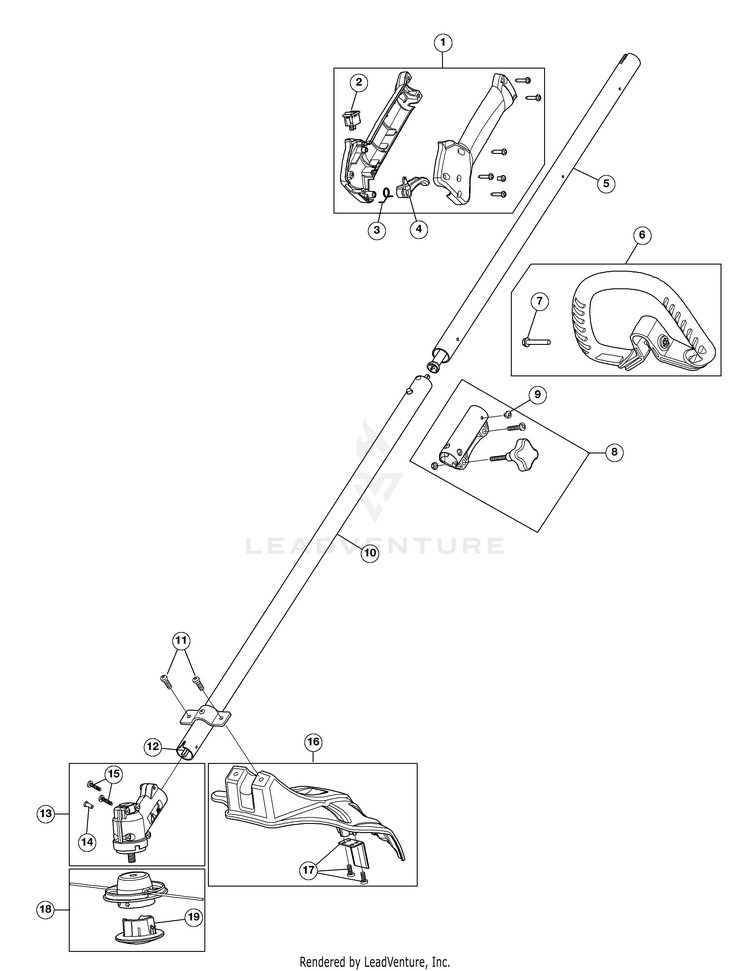

General Assembly

...
...
1
Throttle Housing Assembly (Incl. 2 - 4) MTD-753-06790
...
2
Trigger Switch Assembly MTD-791-182405
...
3
Throttle Trigger Spring MTD-791-182690
...
4
THROTTLE TRIGGER MTD-753-06791
...
5
Upper Drive Shaft Assembly MTD-753-04236
...
6
D-Handle Assembly (Incl. 7) MTD-753-06039
...
7
Bolt MTD-753-06040
...
8
Split Boom Coupler (Incl Ref No. 10-13) MTD-753-1190
...
9
Coupler Anti-Rotation Screw MTD-791-182057
...
10
Lower Drive Shaft Housing MTD-753-06139
...
11
Shield Mounting Screws MTD-753-06125
...
12
LOWER DRIVE SHAFT MTD-753-05267
...
13
Gearbox Assembly (Incl. 14 and 15) MTD-753-08180
...
14
Gearbox Anti-Rotation Screw MTD-7039
...
15
SCREW #10-24X11/16 T-25 MTD-791-182195
...
16
Shield Assembly (Incl. 17) MTD-753-08177
...
17
Blade Assembly MTD-753-08178
...
18
HEAD ASSEMBLY DE MTD-753-06848
...
19
CAP DE MTD-753-06849
...
xx
TUBE:LINE:SEARS DE (not shown) MTD-697-00368
