Craftsman 41BDZ41C799 (316.711971) Gas String Trimmer

Model: 41BDZ41C799 (316.711971)

Back To Assemblies

Save Part Not Listed?
product name

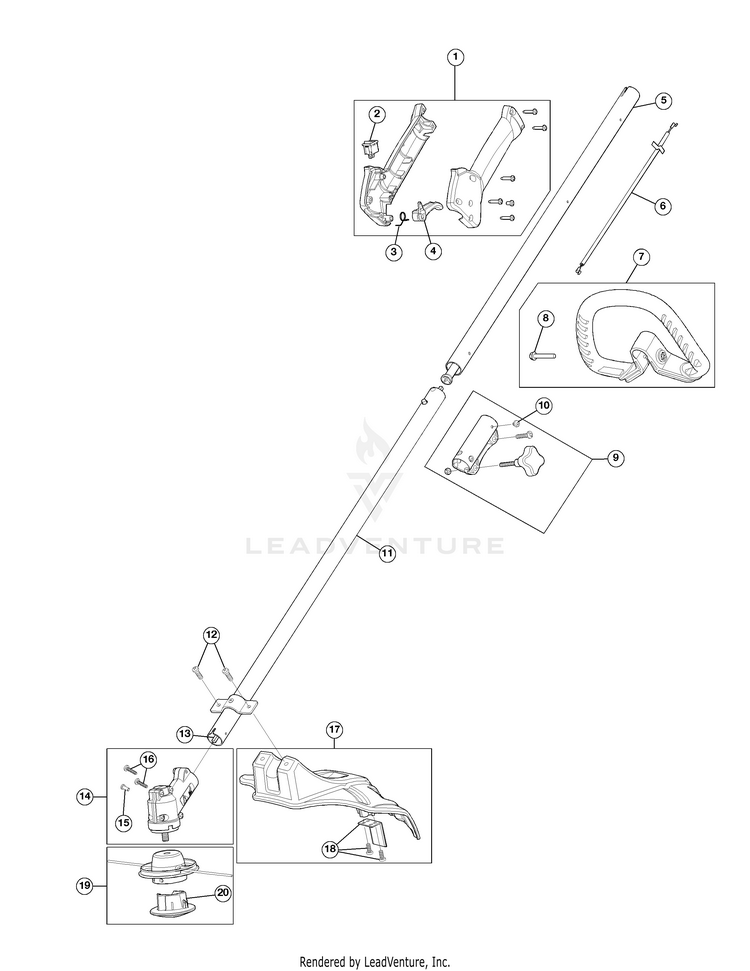

General Assembly

...
...
1
Throttle Housing Assembly (Incl. 2 - 4) MTD-753-06790
...
2
Trigger Switch Assembly MTD-791-182405
...
3
Throttle Trigger Spring MTD-791-182690
...
4
THROTTLE TRIGGER MTD-753-06791
...
5
Upper Drive Shaft Assembly MTD-753-04236
...
6
Throttle Cable Assembly MTD-753-05266
...
7
D-Handle Assembly (Incl. 8) MTD-753-06039
...
8
Bolt MTD-753-06040
...
9
Split Boom Coupler (Incl Ref No. 10-13) MTD-753-1190
...
10
Coupler Anti-Rotation Screw MTD-791-182057
...
11
Lower Drive Shaft Housing MTD-753-06139
...
12
Shield Mounting Screws MTD-753-06125
...
13
LOWER DRIVE SHAFT MTD-753-05267
...
14
Gearbox Assembly (Incl. 15 and 16) MTD-753-08180
...
15
Gearbox Anti-Rotation Screw MTD-7039
...
16
Gearbox Mounting Hardware MTD-791-182057
...
17
Shield Assembly (Incl. 18) MTD-753-08177
...
18
Blade Assembly MTD-753-08178
...
19
HEAD ASSEMBLY DE MTD-753-06848
...
20
CAP DE MTD-753-06849
...
xx
TUBE:LINE:SEARS DE (not shown) MTD-697-00368
