Craftsman 41BDZ12G799 (316.711471) Gas String Trimmer

Model: 41BDZ12G799 (316.711471)

Back To Assemblies

Save Part Not Listed?
product name

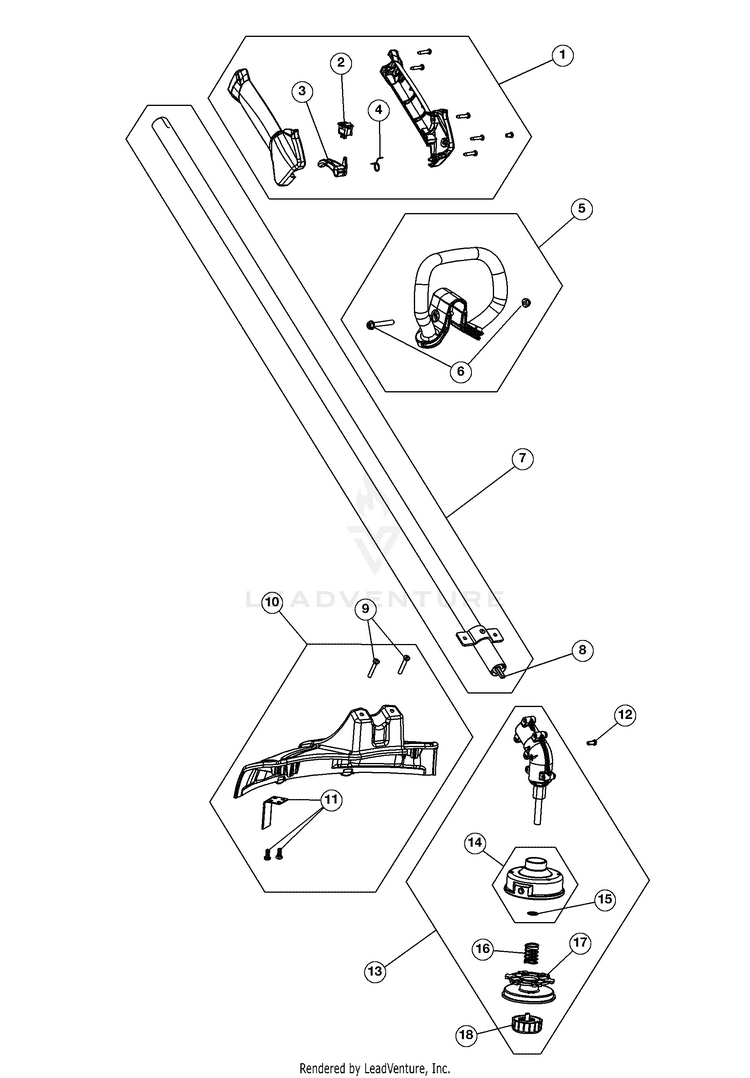

General Assembly

...
...
1
Throttle Housing Assembly (Incl. 2-4) MTD-753-06790
...
2
Switch MTD-791-182405
...
3
Throttle Trigger MTD-753-04119
...
4
Throttle Trigger Spring MTD-791-182690
...
5
D-Handle (Incl. 6) MTD-753-08042
...
6
D-Handle Bolt MTD-753-06040
...
7
Drive Shaft Housing Assembly (Incl. 8) MTD-753-06228
...
8
Flexible Drive Shaft MTD-753-04117
...
9
Shield Mounting Screw MTD-753-06125
...
10
Shield Assembly (Incl. 9 & 11) MTD-753-06329
...
11
Blade Assembly MTD-753-06126
...
12
Anti-Rotation Screw MTD-7039
...
13
GEARBOX ASSEMBLY MTD-753-06571
...
14
OUTER REEL W/RETAINING RING MTD-753-04284
...
15
Retainer MTD-791-610660
...
16
Spring MTD-791-610317B
...
17
Inner Reel MTD-753-1155
...
18
Bump Head Knob Assembly MTD-791-153066B
...
xx
Reel & Line Assembly (Not shown) (Optional) MTD-953-1156
