Craftsman 41BDZ12G799 (316.711471) Gas String Trimmer

Model: 41BDZ12G799 (316.711471)

Back To Assemblies

Save Part Not Listed?
product name

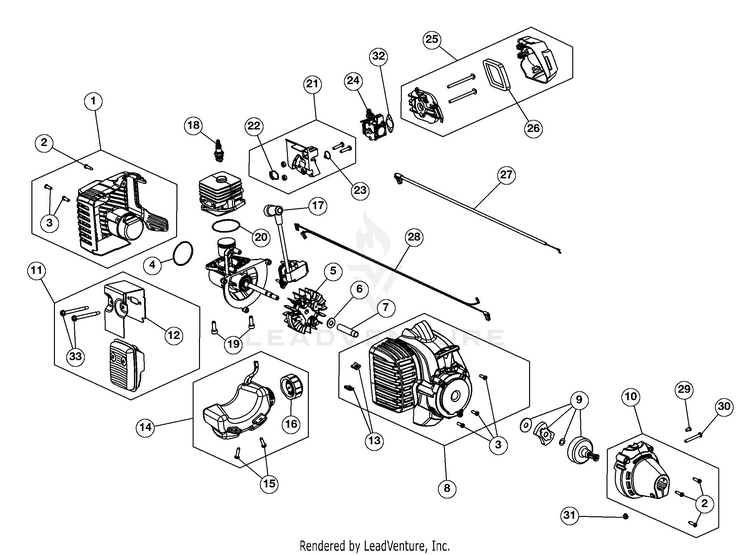

Engine Assembly

...
...
1
Rear Cover Assembly (Incl. 2 & 3) MTD-753-06194
...
2
Cover Screw MTD-791-181345
...
3
SCREW:10-32X.5 MTD-1964
...
4
O-Ring MTD-753-06174
...
5
Flywheel Assembly MTD-753-06175
...
6
Washer MTD-753-06247
...
7
Spacer MTD-753-06218
...
8
Starter Housing (Incl. 3 & 13) MTD-753-06794
...
9
Starter Clutch Assembly MTD-753-06180
...
10
CLUTCH COVER MTD-753-06181
...
11
MUFFLER ASSEMBLY MTD-753-08745
...
12
Muffler Gasket MTD-753-06419
...
13
U-shaped Nut MTD-791-182366
...
14
Fuel Tank Assembly (Incl. 15 & 16) MTD-753-06183
...
15
Tank Screw MTD-791-181930
...
16
Fuel Cap MTD-791-182612
...
17
Module Assembly MTD-753-06420
...
18
Spark Plug MTD-753-06847
...
19
Crankcase Bolt MTD-791-182723
...
20
Crankcase O-Ring MTD-753-06275
...
21
Insulator Assembly (Incl. 22 & 23) MTD-753-06189
...
22
Insulator O-Ring MTD-753-06184
...
23
Carburetor O-Ring MTD-753-06185
...
24
Carburetor MTD-753-06190
...
25
AIRCLEANER COVER ASSEMBLY MTD-753-06415
...
26
Aircleaner Filter MTD-753-06417
...
27
Throttle Cable MTD-753-06188
...
28
WIRE LEADS MTD-753-06187
...
29
Anti-rotation Screw MTD-791-182519
...
30
SCREW MTD-9689A
...
31
Clamp Nut MTD-712-0161
...
32
Air Cleaner Gasket MTD-753-06253
...
33
Muffle Screws MTD-753-06294
...
xx
Short Block Assembly (Not Shown) (Incl. Crankcase, Cylinder, Piston, 4-7 & 17-20) MTD-753-06416
...
xx
Electric Starter Accessory (Not Shown) (Optional) MTD-49M2027P799
...
xx
CRAFTSMAN START BIT (Not Shown) (Optional) MTD-651-04290
