Craftsman 41BD604G799 (316.792021) Gas String Trimmer

Model: 41BD604G799 (316.792021)

Save Part Not Listed?
product name

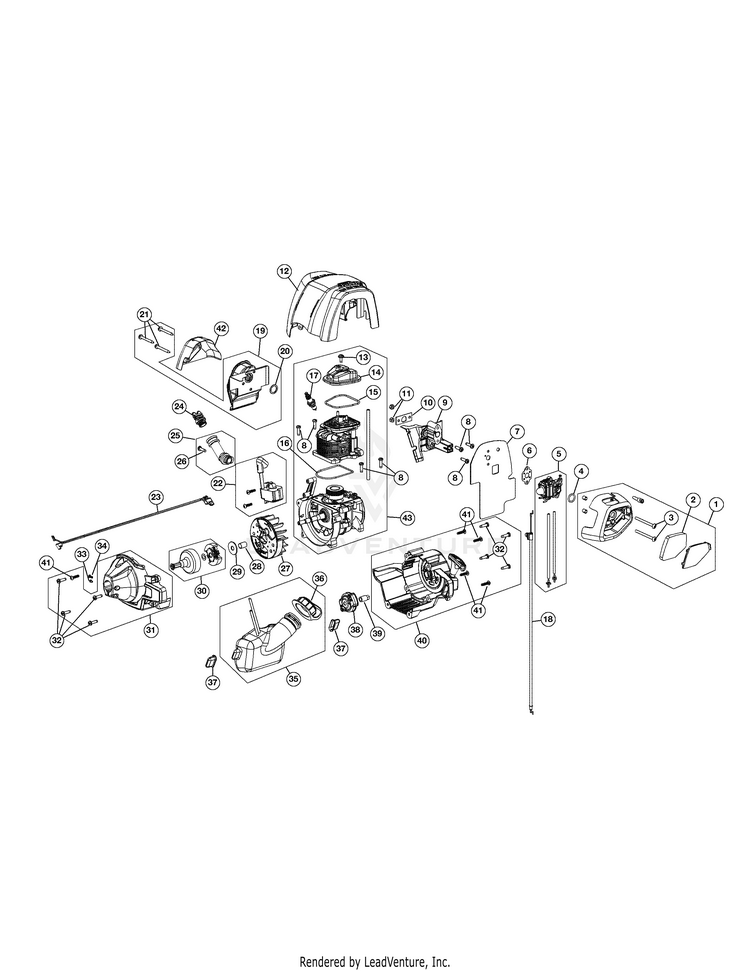

Engine Assembly

...
...
1
AIR CLEANER ASSEMBLY (Incl Ref No. 2 & 3) MTD-753-06084
...
2
Air Filter MTD-753-06085
...
3
Screw MTD-710-04517
...
4
Carburetor O-Ring MTD-791-181751
...
5
Carburetor Assembly Does not Incl. Fuel Line, order separately MTD-753-06083
...
6
Carburetor Gasket MTD-791-181709
...
7
Carburetor Baffle MTD-753-06082
...
8
SCREW, M5 X18 MTD-9052-1
...
9
Insulator MTD-753-05904
...
10
Insulator Gasket MTD-753-05673
...
11
Nut MTD-712-04099
...
12
ENGINE COVER TOP MTD-753-06097
...
13
Screw MTD-791-181025
...
14
Valve Cover MTD-753-05901
...
15
Valve O-Ring MTD-753-05902
...
16
Cylinder O-Ring MTD-753-05910
...
17
Spark Plug MTD-794-00082
...
18
Throttle Cable MTD-753-06166
...
19
MUFFLER ASSEMBLY AC5 (Incl Ref No. 20 & 21) MTD-753-06080
...
20
Muffler Gasket MTD-753-05244
...
21
Screw MTD-710-04809
...
22
Module Assembly MTD-753-05907
...
23
Lead Wire MTD-794-00047A
...
24
Oil Plug (Incl Ref No. 9) MTD-753-05408
...
25
OIL FILL TUBE (Incl Ref No. 26) MTD-753-06087
...
26
SCREW M5X0.8 MTD-710-04604A
...
27
FLYWHEEL AC4 MTD-753-05815
...
28
Spacer MTD-753-05814
...
29
Clutch Washer MTD-9162-1
...
30
Clutch Assembly MTD-753-05860
...
31
CLUTCH COVER ASSEMBLY (Incl Ref No. 32 & 41) MTD-753-06094
...
32
SCREW M5X0.8 MTD-710-04604A
...
33
Anti-rotation Screw MTD-791-182519
...
34
SCREW:CLMPNG W/NUT MTD-753-04291
...
35
Fuel Tank (Incl Ref No. 36) MTD-753-06093
...
36
Fuel Cap MTD-753-05289
...
37
Fuel Tank Pad MTD-753-05259
...
38
Pawl Assembly MTD-753-06091
...
39
Electric Start Adapter MTD-753-06104
...
40
STARTER HOUSING ASSEMBLY (Incl Ref No. 32 & 41) MTD-753-06096
...
41
Starter Screw MTD-710-04194
...
42
MUFFLER SHLD MTD-753-06101
...
43
SHORT BLOCK (Incl Ref No. Crankcase, Cylinder, 8 & 13-17) MTD-753-06088
...
xx
Electric Starter Accessory Craftsman Not shown MTD-625-04111-2
...
xx
Start Bit Craftsman Not shown MTD-753-06392

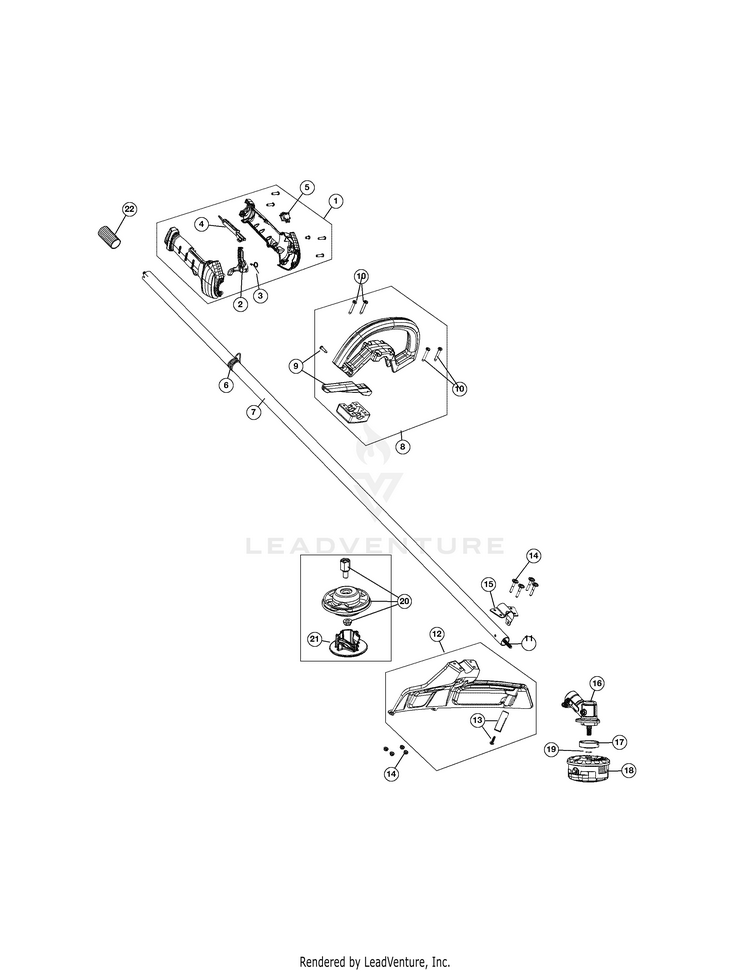

General Assembly

...
...
1
THROTTLE GRIP MTD-753-09645
...
2
Throttle Trigger MTD-731-04970B-10
...
3
TRIGGER SPRING MTD-753-05007
...
4
LOCK OUT LEVER MTD-731-04971B-10
...
5
Switch MTD-791-182405
...
6
SHOULDER STRAP CLAMP MTD-4301A
...
6
Shoulder Strap Clip MTD-791-610327
...
7
DRIVE SHAFT HOUSING MTD-753-05474
...
8
D-Handle Assembly (Incl Ref No. 9 & 10) MTD-753-05008
...
9
BARRIER BAR ASSEMBLY MTD-753-05295
...
10
Screw MTD-791-181070
...
11
FLEX SHAFT 55.6" MTD-753-06098
...
12
Shield Assembly (Incl Ref No. 13) MTD-753-05820
...
13
Blade Assembly MTD-753-05821
...
14
Screw MTD-753-05822
...
15
GUARD MOUNT BRACKET MTD-753-06089
...
16
Gearbox MTD-791-182193
...
17
Gearbox Spacer MTD-791-182196
...
18
Cutting Head Assembly MTD-753-06102
...
19
Palnut MTD-753-04348
...
20
HEAD ASSEMBLY W/HDW DE MTD-753-05779
...
21
Glide Plate MTD-753-05780
...
22
SPACER MTD-753-06168
...
xx
TUBE:LINE:SEARS DE Not shown MTD-697-00368
...
xx
Kit, Speed Spool Not shown, Kit contains head cover, spring and 4 eyelets for 753-06102 head assembly. MTD-753-06149
