Craftsman 41AJCS-C799 (316.792520) Attachment

Model: 41AJCS-C799 (316.792520)

Save Part Not Listed?
product name

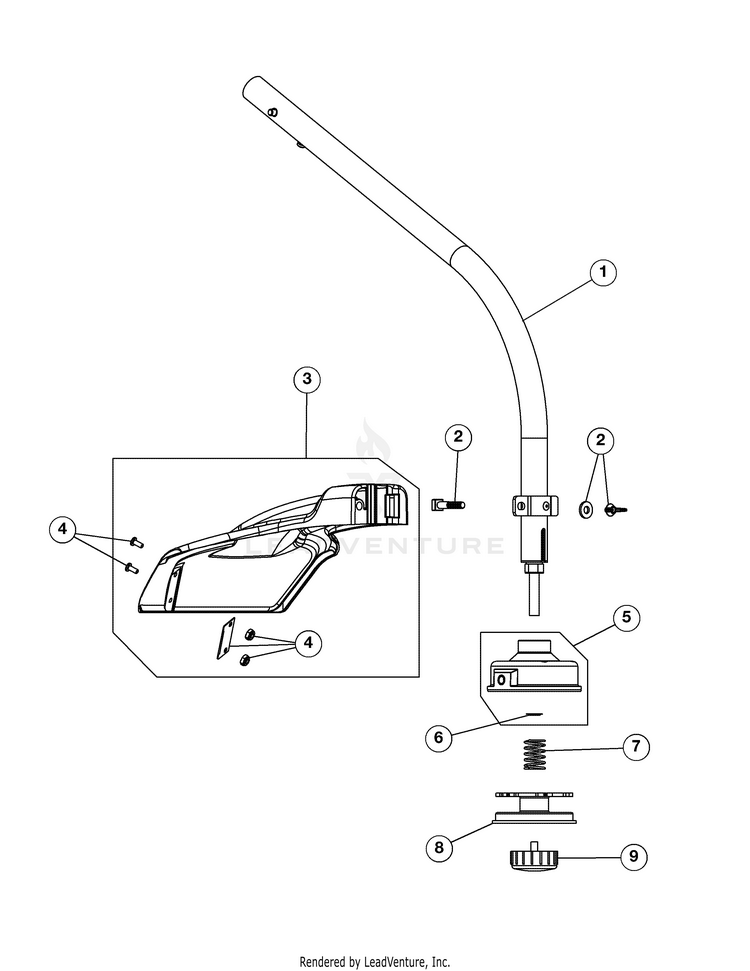

General Assembly

...
...
1
Lower Shaft Housing Assembly MTD-753-04508
...
2
Shield Mounting Hardware MTD-753-04282
...
3
Shield Assembly (includes 4) MTD-753-04283
...
4
Blade Assembly MTD-791-180553
...
5
OUTER REEL W/RETAINING RING MTD-753-04284
...
6
Retainer MTD-791-610660
...
7
Spring MTD-791-610317B
...
8
Inner Reel MTD-753-1155
...
9
Bump Knob Assembly MTD-791-153066B
...
xx
Reel & Line Assembly Not shown MTD-953-1156
