Craftsman 41ADZ46C799 (316.731970) Gas String Trimmer

Model: 41ADZ46C799 (316.731970)

Back To Assemblies

Save Part Not Listed?
product name

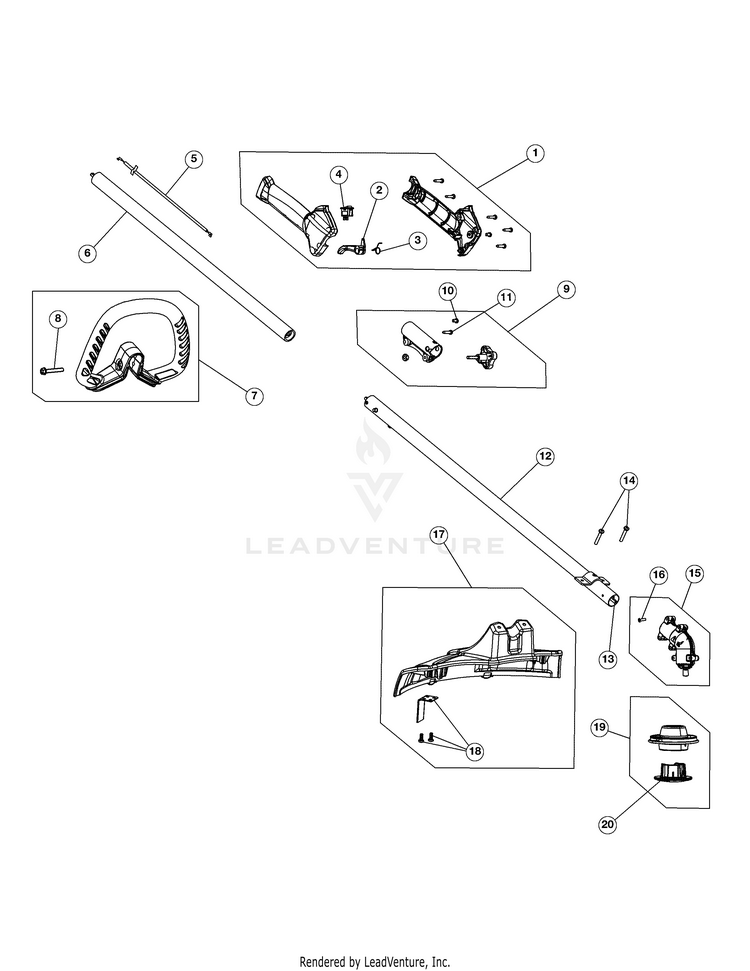

General Assembly

...
...
1
Throttle Housing Assembly (Incl. 2-4) MTD-753-06790
...
2
THROTTLE TRIGGER MTD-753-06791
...
3
Throttle Trigger Spring MTD-791-182690
...
4
Switch Assembly MTD-791-182405
...
5
Throttle Cable Assembly MTD-753-05266
...
6
Upper Drive Shaft Assembly MTD-753-04236
...
7
D-Handle Assembly (Incl. 8) MTD-753-06039
...
8
Bolt MTD-753-06040
...
9
Split Boom Coupler (Incl. 10-11) MTD-753-06793
...
10
Coupler Anti-Rotation Screw MTD-791-182057
...
11
Coupler Bolt MTD-791-181617
...
12
Lower Drive Shaft Housing MTD-753-06139
...
13
LOWER DRIVE SHAFT MTD-753-05267
...
14
Shield Mount Screw Assembly MTD-753-06125
...
15
Gearbox Assembly (Incl. 16) MTD-753-06882
...
16
Screw MTD-7039
...
17
Shield Assembly (Incl. 18) MTD-753-06123
...
18
Blade Assembly MTD-753-06126
...
19
HEAD ASSEMBLY DE MTD-753-06848
...
20
CAP DE MTD-753-06849
...
xx
TUBE:LINE:SEARS DE (optional) MTD-697-00368
