Craftsman 41ADZ42C799 (316.711930) Gas String Trimmer

Model: 41ADZ42C799 (316.711930)

Back To Assemblies

Save Part Not Listed?
product name

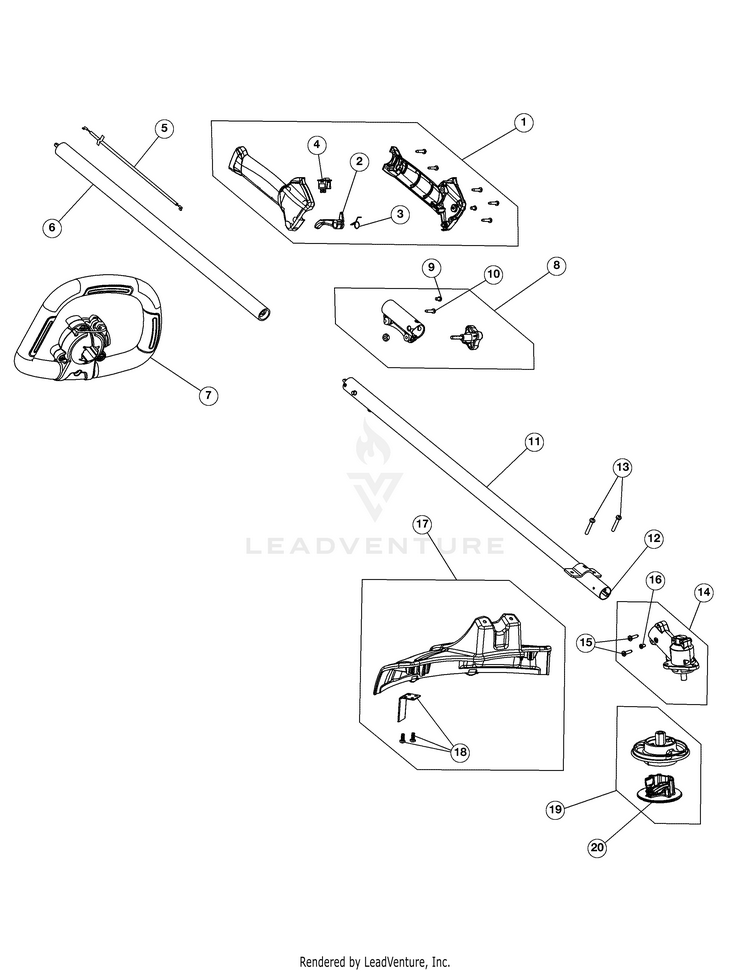

General Assembly

...
...
1
Throttle Housing Assembly (Incl. 2-4) MTD-753-06790
...
2
THROTTLE TRIGGER MTD-753-06791
...
3
Throttle Trigger Spring MTD-791-182690
...
4
Switch Assembly MTD-791-182405
...
5
Throttle Cable Assembly MTD-753-05266
...
6
Upper Drive Shaft Assembly MTD-753-04236
...
7
HANDLE ASSEMBLY D ADJ MTD-753-06873
...
8
Split Boom Coupler (Incl. 10-11) MTD-753-06793
...
9
Coupler Anti-Rotation Screw MTD-791-182057
...
10
Coupler Bolt MTD-791-181617
...
11
Lower Drive Shaft Housing MTD-753-06139
...
12
LOWER DRIVE SHAFT MTD-753-05267
...
13
Shield Mount Screw Assembly MTD-753-06125
...
14
Gearbox Assembly (Incl. 16 & 17) MTD-791-182193
...
15
SCREW #10-24X11/16 T-25 MTD-791-182195
...
16
Gearbox Anti-Rotation Screw MTD-791-182519
...
17
Shield Assembly (Incl. 19) MTD-753-06292
...
18
Blade Assembly MTD-753-06126
...
19
Cutting Head Assembly (Incl. 21) MTD-753-05045
...
20
FIXED HEAD CAP MTD-731-05193
...
xx
TUBE:LINE:SEARS DE Not shown MTD-697-00368
