Craftsman 41ADZ3CC799 (316.794460) Gas String Trimmer

Model: 41ADZ3CC799 (316.794460)

Back To Assemblies

Save Part Not Listed?
product name

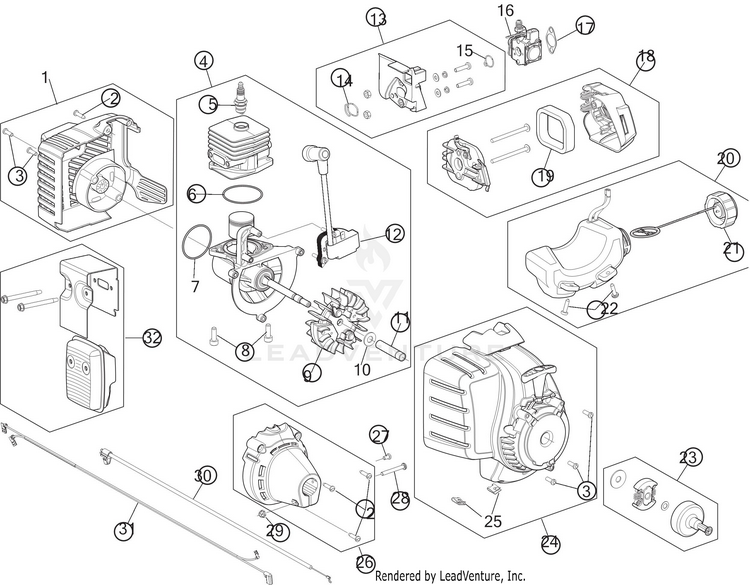

Engine Assembly

...
...
1
ENGINE COVER RR (includes 2 & 3) MTD-753-06919
...
2
SCREW, #8-16X.750 PH MTD-791-181345
...
3
SCREW:10-32X.5 MTD-1964
...
4
SHORTBLOCK (includes 5-12) MTD-753-06924
...
5
SPARK PLUG MTD-753-06847
...
6
O-RING MTD-753-06275
...
7
O-RING MTD-753-06174
...
8
SCREW, 1/4-20 x .75 MTD-791-182723
...
9
FLYWHEEL ASSEMBLY MTD-753-06175
...
10
BELL WASHER MTD-753-06247
...
11
SPACER MTD-753-06218
...
12
MODULE MA-103 MTD-753-06303
...
13
INTAKE ASSEMBLY (includes 14 & 15) MTD-753-06189
...
14
O-RING MTD-753-06184
...
15
O-RING MTD-753-06185
...
16
CARBURETOR MTD-753-06190
...
17
GASKET CARB MTD-753-06253
...
18
AIR CLEANER ASSEMBLY (includes 19) MTD-753-08366
...
19
AIR FLITER MTD-753-06417
...
20
FUEL TANK ASSEMBLY (includes 21 & 22) MTD-753-06183
...
21
FUEL CAP ASSEMBLY MTD-791-182612
...
22
SCREW 10-6 x .75 MTD-791-181930
...
23
SMALL CLUTCH ASSEMBLY W/SMALL DRUM MTD-753-05860
...
24
STARTER HOUSING RED (includes 3 & 25) MTD-753-06530
...
25
NUT, TINNERMAN U-T MTD-791-182366
...
26
CLUTCH COVER (includes 2) MTD-753-06181
...
27
SCREW, 8-32 x .312 P MTD-791-182519
...
28
SCREW MTD-9689A
...
29
HEX NUT MTD-712-0161
...
30
THROTTLE CABLE MTD-746P04754
...
31
LEAD WIRES MTD-753-06583
...
32
MUFFLER ASSEMBLY MTD-753-08745
