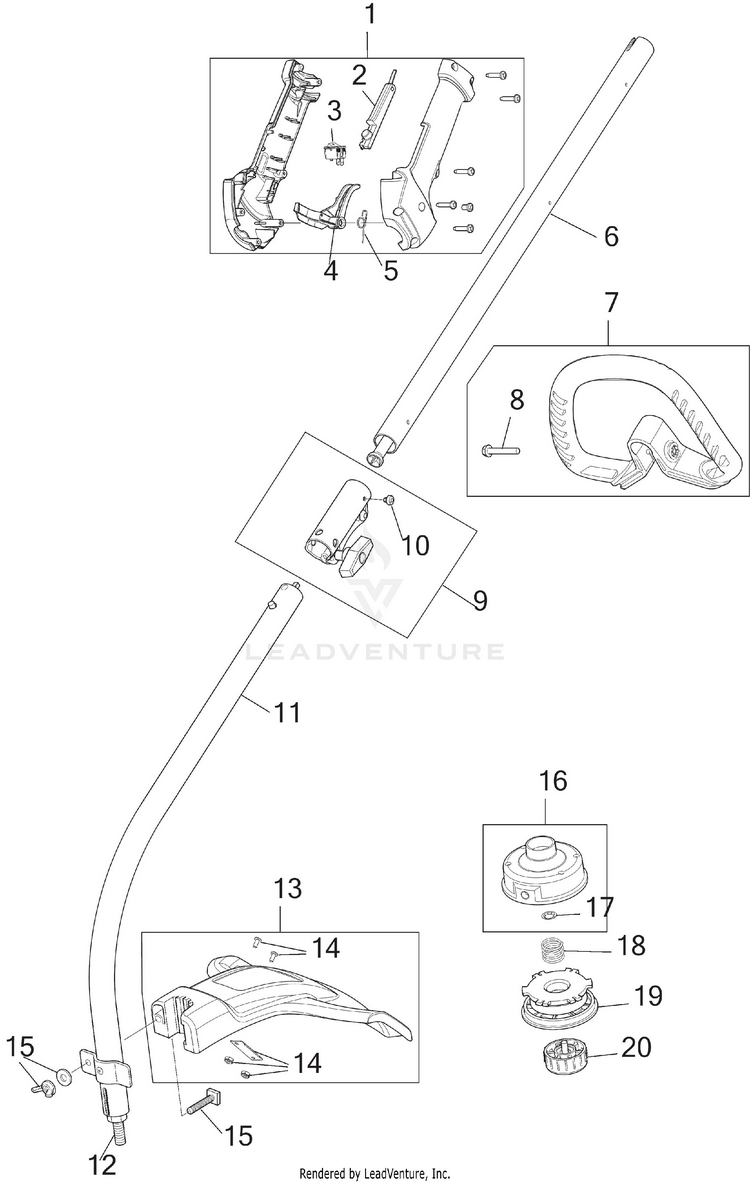

Craftsman 41ADZ3CC799 (316.794460) Gas String Trimmer

Model: 41ADZ3CC799 (316.794460)

Back To Assemblies

Save Part Not Listed?
product name

String Trimmer

...
...
xx
SPOOL ASSEMBLY-REEL (not shown) MTD-953-1156
...
1
THROTTLE GRIP ASSEMBLY (includes 2-5) MTD-753-06790
...
2
LOCK OUT LEVER MTD-731-08433C-5
...
3
SW, MOMENTARY ON/O MTD-791-182405
...
4
THROTTLE TRIGGER MTD-753-06861
...
5
TRIGGER SPRING MTD-753-05007
...
6
BOOM ASSEMBLY UPR MTD-753-06880
...
7
HANDLE ASSEMBLY (includes 8) MTD-753-06039
...
8
BOLT 1/4-20X1 1/2 MTD-753-06040
...
9
Split Boom Coupler (Incl Ref No. 10-13) (includes 10) MTD-753-1190
...
10
SCREW, 10-32X.250 TA MTD-791-182057
...
11
BOOM ASSEMBLY W/HEAD (includes 12) MTD-753-08612
...
12
LOWERIBLE DRIVE SHAFT MTD-791-181166
...
13
GUARD ASSEMBLY (includes 14) MTD-753-04283
...
14
ASSEMBLY, BLADE MTD-791-180553
...
15
BLADE GUARD MOUNTING HARDWARE MTD-753-04282
...
16
OUTER REEL W/RETAINING RING (includes 17) MTD-753-04284
...
17
RETAINER .625 OD 2 MTD-791-610660
...
18
SPRING-SPOOL MTD-791-610317B
...
19
REEL-INNER SPOOL MTD-753-1155
...
20
BUMP HEAD KNOB ASSEMBLY MTD-791-153066B
