Craftsman 41ADZ24C799 (316.711200) Gas String Trimmer

Model: 41ADZ24C799 (316.711200)

Back To Assemblies

Save Part Not Listed?
product name

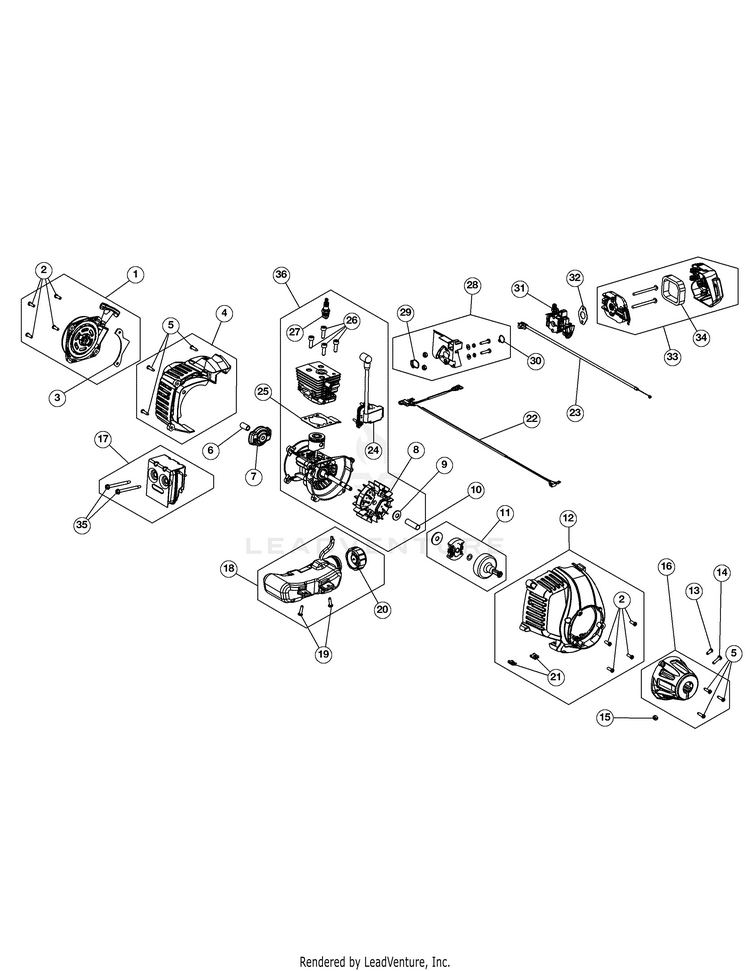

Engine Assembly

...
...
1
Rear Cover Assembly (Incl. 2 & 3) MTD-753-06829
...
2
SCREW:10-32X.5 MTD-1964
...
3
Starter Assembly Guard (Incl. 2) MTD-753-06244
...
4
Rear Engine Cover Assembly (Incl. 5) MTD-753-06854
...
5
Cover Screw MTD-791-181345
...
6
Adapter MTD-753-06104
...
7
Pawl Assembly MTD-753-06091
...
8
Flywheel Assembly MTD-753-06246
...
9
Washer MTD-753-06247
...
10
SPACER MTD-753-06820
...
11
Clutch Assembly MTD-753-05860
...
12
ENGINE COVER ASSEMBLY FRT MTD-753-06855
...
13
Anti-Rotation Screw MTD-791-182519
...
14
SCREW MTD-9689A
...
15
Clamp Nut MTD-712-0161
...
16
Clutch Cover Assembly (Incl. 5) MTD-753-06822
...
17
MUFFLER ASSEMBLY MTD-753-08745
...
18
FUEL TANK ASSEMBLY MTD-753-06250
...
19
Tank Screw MTD-791-181930
...
20
Fuel Cap MTD-753-06857
...
21
U-Shaped Nut MTD-791-182366
...
22
LEAD WIRES MTD-753-06870
...
23
Throttle Cable MTD-753-06825
...
24
Module Assembly MTD-753-06871
...
25
Cylinder Gasket MTD-753-06827
...
26
Cylinder Bolt MTD-710-04715
...
27
Spark Plug MTD-753-06847
...
28
Insulator Assembly (Incl. 29 & 30) MTD-753-06189
...
29
Insulator O-Ring MTD-753-06184
...
30
Carburetor O-Ring MTD-753-06185
...
31
CARBURETOR MTD-753-06872
...
32
Carburetor Gasket MTD-753-06253
...
33
AIRCLEANER ASSEMBLY MTD-753-06953
...
34
Air Cleaner Filter MTD-753-06954
...
35
Muffler Screws MTD-753-06294
...
36
Short Block Assembly (Incl. Crankcase,Cylinder, Piston, 8-10 & 24-27) MTD-753-06858
...
xx
Electric Start Not shown MTD-625-04111-2
...
xx
CRAFTSMAN START BIT Not shown MTD-651-04290
