Craftsman 41ADZ23C799 (316.711170) Gas String Trimmer

Model: 41ADZ23C799 (316.711170)

Back To Assemblies

Save Part Not Listed?
product name

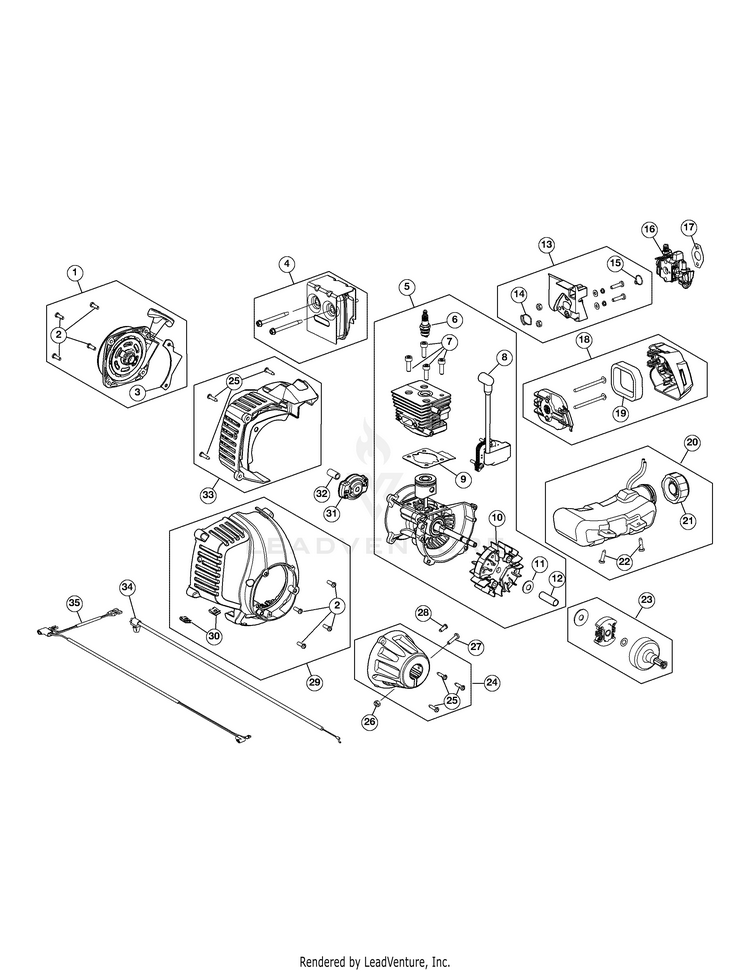

Engine Assembly (October 2014 & after)

...
...
1
Rear Cover Assembly (Incl. 2 & 3) MTD-753-06829
...
2
SCREW:10-32X.5 MTD-1964
...
3
Starter Assembly Guard (Incl. 2) MTD-753-06244
...
4
MUFFLER ASSEMBLY MTD-753-08745
...
5
Short Block Assembly (Incl. Crankcase, Cylinder, Piston, 6 - 12) MTD-753-06858
...
6
Spark Plug MTD-753-06847
...
7
Cylinder Bolt MTD-710-04715
...
8
Module Assembly MTD-753-06763
...
9
Cylinder Gasket MTD-753-06827
...
10
Flywheel Assembly MTD-753-06246
...
11
Washer MTD-753-06247
...
12
SPACER MTD-753-06820
...
13
Insulator Assembly (Incl. 14 & 15) MTD-753-06189
...
14
Insulator O-Ring MTD-753-06184
...
15
Carburetor O-Ring MTD-753-06185
...
16
Carburetor MTD-753-06288
...
17
Carburetor Gasket MTD-753-06253
...
18
AIRCLEANER ASSEMBLY MTD-753-06953
...
19
Air Cleaner Filter MTD-753-06954
...
20
Fuel Tank Assembly (Incl. 21 & 22) MTD-753-06250
...
21
Fuel Tank Cap MTD-753-06857
...
22
Fuel Tank Screw MTD-791-181930
...
23
Clutch Assembly MTD-753-05860
...
24
Clutch Cover Assembly (Incl. 25) MTD-753-06822
...
25
Cover Screw MTD-791-181345
...
26
Clamp Nut MTD-712-0161
...
27
SCREW MTD-9689A
...
28
Anti-Rotation Screw MTD-791-182519
...
29
ENGINE COVER ASSEMBLY FRT MTD-753-06855
...
30
U-Shaped Nut MTD-791-182366
...
31
Pawl Assembly MTD-753-06091
...
32
Adapter MTD-753-06104
...
33
Rear Engine Cover Assembly (Incl. 25) MTD-753-06854
...
34
Throttle Cable MTD-753-06251
...
35
Lead Wires MTD-753-05877
