Craftsman 41ADZ23C799 (316.711170) Gas String Trimmer

Model: 41ADZ23C799 (316.711170)

Back To Assemblies

Save Part Not Listed?
product name

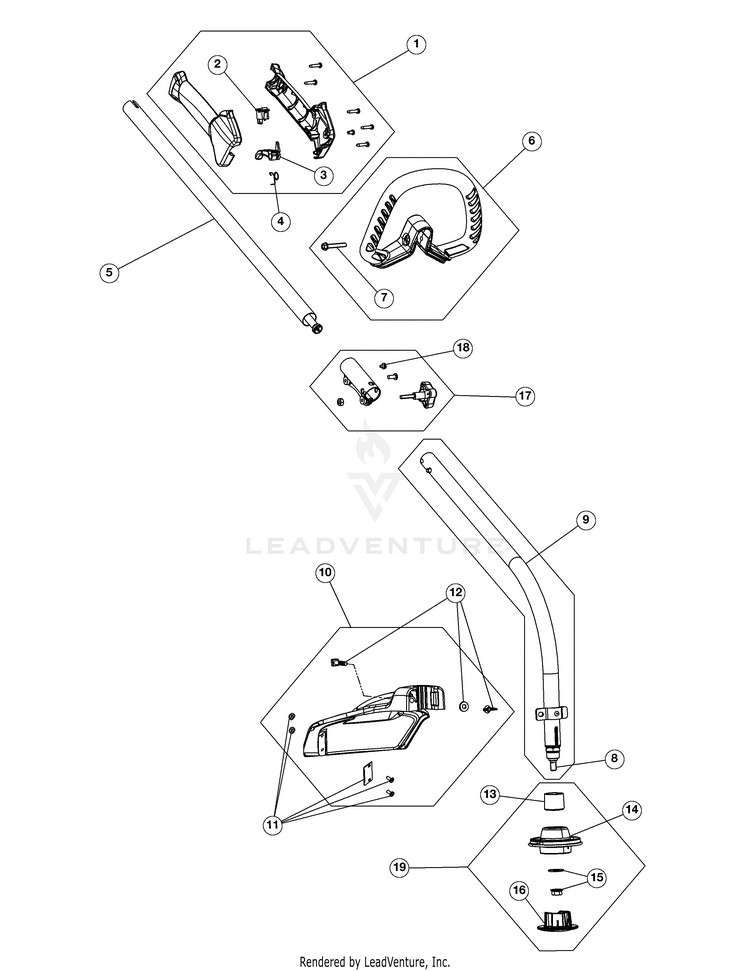

General Assembly (October 2014 & before)

...
...
1
THROTTLE GRIP ASSEMBLY MTD-753-06863
...
2
Switch MTD-791-182405
...
3
THROTTLE TRIGGER MTD-753-06791
...
4
Throttle Trigger Spring MTD-791-182690
...
5
Upper Shaft Housing Assembly MTD-753-04236
...
6
Deluxe D-Handle Assembly (Incl. 7) MTD-753-06039
...
7
Bolt MTD-753-06040
...
8
Lower Flexible Drive Shaft Assembly MTD-753-06864
...
9
BOOM ASSEMBLY LOWER MTD-753-06865
...
10
Shield Assembly (Incl. 11) MTD-753-04283
...
11
Blade Assembly MTD-791-180553
...
12
Shield Mounting Hardware MTD-753-04282
...
13
Weed Guard MTD-753-06866
...
14
HEAD DE HF MTD-753-06867
...
15
Spool Mounting Hardware MTD-753-06868
...
16
CAP DE MTD-753-06849
...
17
Split Boom Coupler (Incl Ref No. 10-13) MTD-753-1190
...
18
Screw MTD-791-182057
...
19
HEAD ASSEMBLY DE HF MTD-753-06869
