Craftsman 41ADZ22C799 (316.711190) Gas String Trimmer

Model: 41ADZ22C799 (316.711190)

Back To Assemblies

Save Part Not Listed?
product name

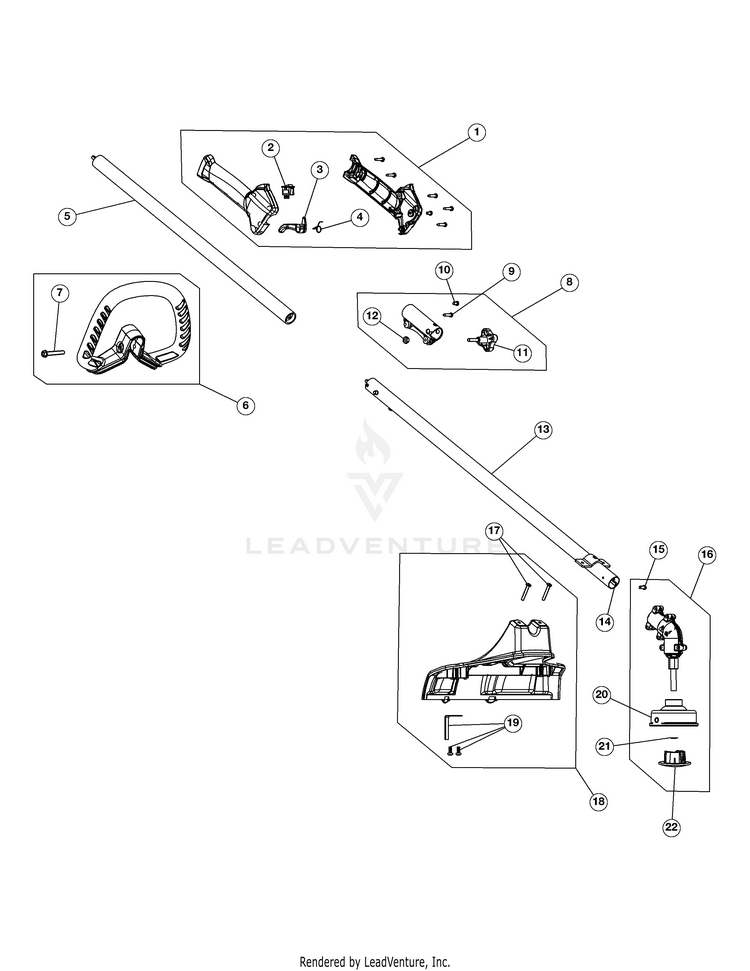

General Assembly

...
...
1
Throttle Housing Assembly (Incl. 2-4) MTD-753-06790
...
2
Switch MTD-791-182405
...
3
Throttle Trigger MTD-753-04119
...
4
Throttle Trigger Spring MTD-791-182690
...
5
Upper Shaft Housing Assembly MTD-753-04344
...
6
D-Handle (Incl. 7) MTD-753-06039
...
7
D-Handle Hardware MTD-753-06040
...
8
Split Boom Coupler (Incl. 9-12) MTD-753-1190
...
9
Anti-Rotation Screw MTD-791-182057
...
10
Screw MTD-791-181617
...
11
CLICK LINK CLAMP MTD-697-00661-9
...
12
Knob Retainer Nut MTD-712-04018A
...
13
Lower Shaft Housing Assembly MTD-753-06789
...
14
LOWER DRIVE SHAFT MTD-753-05267
...
15
Anti-Rotation Screw MTD-7039
...
16
GEAR BOX ASSEMBLY DE110 MTD-753-06897
...
17
Shield Mounting Screws MTD-753-06125
...
18
Shield Assembly (Incl. 17 & 19) MTD-753-06123
...
19
Blade Assembly MTD-753-06126
...
20
HEAD ASSEMBLY DE HF MTD-753-06764
...
21
PUSH NUT .375 MTD-791-610661
...
22
Fixed String Cap MTD-753-06765
...
xx
.110 Hassle Free™ XTRA QUIET Spiral Line Not shown MTD-753-06767
