Craftsman 41ADZ21C799 (316.794400) Gas String Trimmer

Model: 41ADZ21C799 (316.794400)

Back To Assemblies

Save Part Not Listed?
product name

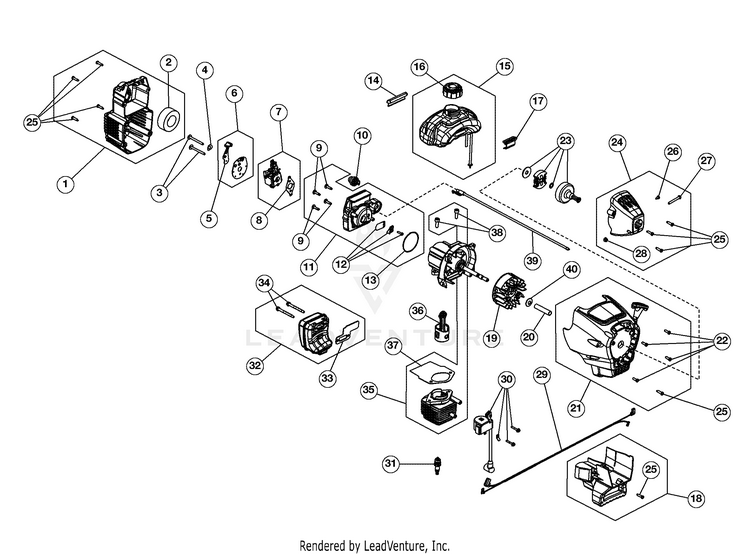

Engine Assembly

...
...
1
Air Cleaner Cover Assembly (Incl. 2 & 25) MTD-753-04511
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
Wavey Washer MTD-936-0271
...
5
CHOKE LEVER ASSEMBLY:W/ MTD-753-04418
...
6
PLATE ASSEMBLY:CHOKE:WV MTD-753-04419
...
7
DUAL CARBURETOR ASSEMBLY MTD-753-05133
...
8
CARBURETOR GASKET MTD-791P610675
...
9
SCREW, 10-24X.75 T-2 MTD-791-181860
...
10
Primer & Hose Assembly MTD-791-683974B
...
11
CARBURETOR MOUNT ASSEMBLY MTD-753-1196
...
12
REED VALVE ASSEMBLY MTD-791-684451
...
13
O-Ring MTD-721-04163
...
14
PAD, REAR MOUNT PAD MTD-791-612134
...
15
FUEL TANK ASSEMBLY WINES & CAP MTD-753-04606
...
16
Fuel Cap Assembly MTD-791-182529
...
17
PAD, FRONT MOUNTING MTD-791-145308
...
18
EXT ASSEMBLY:SHRD MTD-753-05091
...
19
Flywheel Assembly MTD-753-05240
...
20
Spacer MTD-791-181525
...
21
Starter Housing Assembly (Incl. 22 & 25) MTD-753-06721
...
22
SCREW:10-32X.5 MTD-1964
...
23
Clutch Rotor Assembly MTD-753-05860
...
24
HOUSING ASSEMBLY-CLUTCH MTD-753-04497
...
25
Cover Screw MTD-791-181345
...
26
Anti-Rotation Screw MTD-791-182519
...
27
SCREW MTD-9689A
...
28
Clamping Nut MTD-712-0161
...
29
WIRE:LEAD:RED/BK MTD-753-05025
...
30
PULSE MDL ASSEMBLY:W/HD MTD-753-04336
...
31
Spark Plug MTD-791-610311B
...
32
MUFFLER ASM CAT NLAUD (Incl. 33, 34 & Spark Arrestor) MTD-753-05169
...
33
Exhaust Gasket MTD-753-04619
...
34
Muffler Mounting Bolts MTD-710-04188A
...
35
Cylinder Assembly (Incl. 37 & 38) MTD-753-04814
...
36
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
37
Cylinder Gasket MTD-753-04182
...
38
Cylinder Bolt MTD-791-182723
...
39
Throttle Cable MTD-753-04405
...
40
Washer MTD-753-06247
...
xx
Piston Ring Set (not shown) MTD-753-1209
...
xx
SHORT BLOCK (Incl. Crankcase, 9, 31 & 35-38) MTD-753-04812
