Craftsman 41ADY23C799 (316.99010) Gas String Trimmer

Model: 41ADY23C799 (316.99010)

Back To Assemblies

Save Part Not Listed?
product name

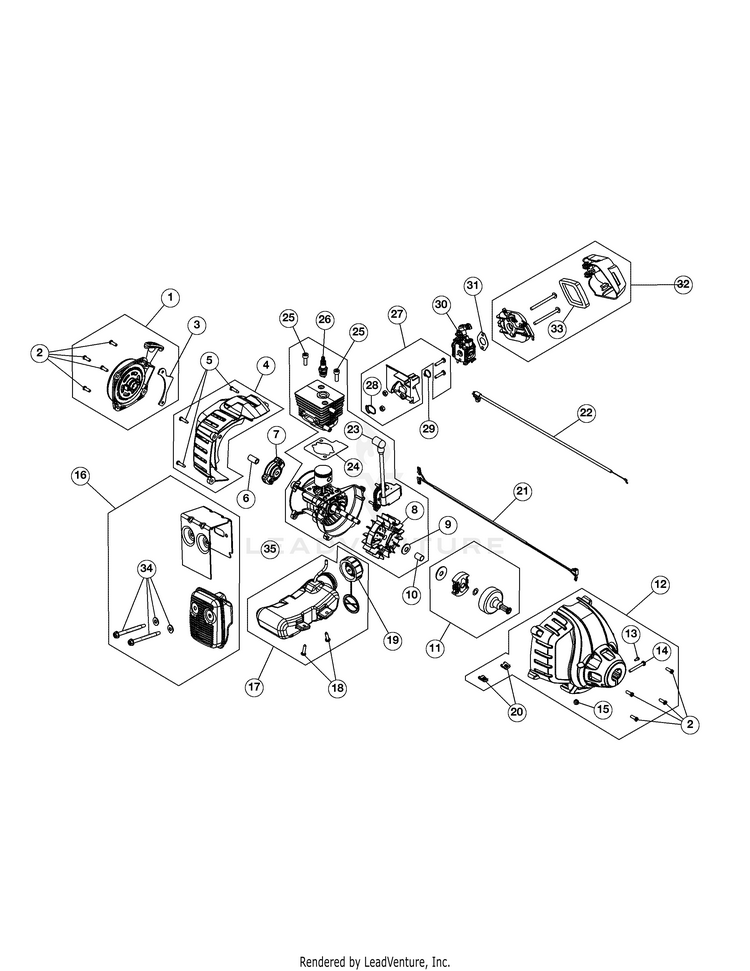

Engine Assembly

...
...
1
Rear Cover Assembly (Incl. 2 & 3) MTD-753-06829
...
2
SCREW:10-32X.5 MTD-1964
...
3
Starter Assembly Guard (Incl. 2) MTD-753-06244
...
4
REAR ENGINE COVER MTD-753-06245
...
5
Cover Screw MTD-791-181345
...
6
Adapter MTD-753-06104
...
7
Pawl Assembly MTD-753-06091
...
8
Flywheel Assembly MTD-753-06246
...
9
Washer MTD-753-06247
...
10
Spacer MTD-753-06248
...
11
Clutch Assembly MTD-753-05860
...
12
COVER ASSEMBLY FR MTD-753-07014
...
13
Anti-Rotation Screw MTD-791-182519
...
14
SCREW MTD-9689A
...
15
Clamp Nut MTD-712-0161
...
16
MUFFLER ASSEMBLY MTD-753-08745
...
17
Fuel Tank Assembly (Incl. 18 & 19) MTD-753-06250
...
18
Tank Screw MTD-791-181930
...
19
CAP ASSEMBLY:FUEL:BK MTD-753-05057
...
20
U-Shaped Nut MTD-791-182366
...
21
Lead Wires MTD-753-05877
...
22
Throttle Cable MTD-753-06251
...
23
Module Assembly MTD-753-06303
...
24
Cylinder Gasket MTD-753-06827
...
25
Cylinder Bolt MTD-710-04715
...
26
Spark Plug MTD-753-06847
...
27
Insulator Assembly (Incl. 28) MTD-753-06189
...
28
Insulator O-Ring MTD-753-06184
...
29
Carburetor O-Ring MTD-753-06185
...
30
Carburetor MTD-753-06288
...
31
Carburetor Gasket MTD-753-06253
...
32
AIRCLEANER ASSEMBLY MTD-753-06953
...
33
Aircleaner Filter MTD-753-06954
...
34
Muffler Screw MTD-753-06294
...
35
SHORT BLOCK MTD-753-06501
...
xx
Electric Start MTD-625-04111-2
...
xx
CRAFTSMAN START BIT MTD-651-04290
