Craftsman 41ADY20C799 (316.990110) Gas String Trimmer

Model: 41ADY20C799 (316.990110)

Back To Assemblies

Save Part Not Listed?
product name

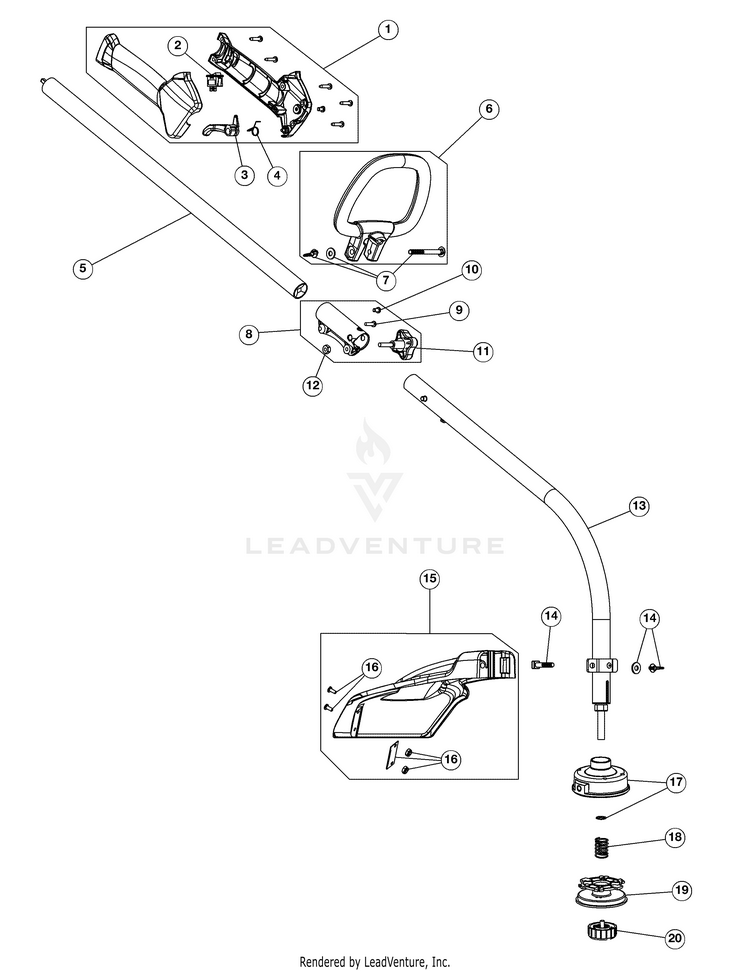

General Assembly

...
...
1
Throttle Housing Assembly (Incl. 2-4) MTD-753-06790
...
2
Switch MTD-791-182405
...
3
Throttle Trigger MTD-753-04119
...
4
Throttle Trigger Spring MTD-791-182690
...
5
Upper Shaft Housing Assembly MTD-753-04344
...
6
D-Handle (Incl. 7) MTD-753-05461
...
7
D-Handle Hardware Assembly MTD-791-181587
...
8
Split Boom Coupler (Incl. 9-12) MTD-753-1190
...
9
Anti-Rotation Screw MTD-791-182057
...
10
Screw MTD-791-181617
...
11
CLICK LINK CLAMP MTD-697-00661-9
...
12
Knob Retainer Nut MTD-712-04018A
...
13
Lower Shaft Housing Assembly MTD-753-04508
...
14
Shield Mounting Hardware MTD-753-04282
...
15
Shield Assembly (Incl. 16) MTD-753-04283
...
16
Blade Assembly MTD-791-180553
...
17
OUTER REEL W/RETAINING RING MTD-753-04284
...
18
Spring MTD-791-610317B
...
19
Inner Reel MTD-753-1155
...
20
Bump Head Knob Assembly MTD-791-153066B
...
xx
Reel & Line Assembly Not shown MTD-953-1156
