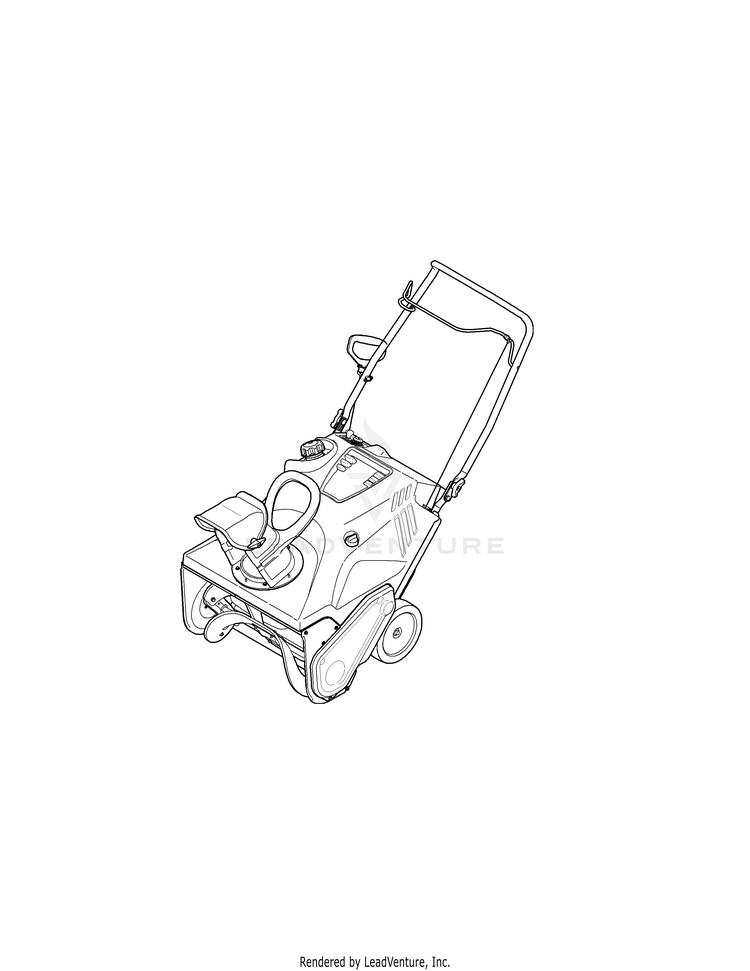

Craftsman 31AS2S5D799 (247.88780) (2010) Snow Blower

Model: 31AS2S5D799 (247.88780) (2010)

Save Part Not Listed?
product name

.Quick Reference

...
...
xx
Spark Plug MTD-951-10292A
...
xx
Ignition Key MTD-951-10630
...
xx
3-Prong Extension Cord MTD-929-0071B
...
xx
Snow Removal Tool MTD-NA
...
xx
Drive Cable MTD-NA
...
xx
Auger Cable MTD-946-04701
...
xx
Speed Cable MTD-NA
...
xx
Wheel Cable MTD-NA
...
xx
AUGER ASSEMBLY MTD-984-04364
...
xx
Shave Plate MTD-931-07667
...
xx
Impeller Assembly MTD-NA
...
xx
Shear Pin MTD-NA
...
xx
Bow Tie Cotter Pin MTD-NA
...
xx
Lamp MTD-NA
...
xx
Auger Belt MTD-NA
...
xx
Auger Drive Belt MTD-954-04050A
...
xx
Spiral Crescent MTD-NA
...
xx
Rubber Paddle MTD-753-06469
...
xx
Friction Wheel MTD-NA
...
xx
Friction Wheel Rubber MTD-NA
...
xx
Wheel, 8 x 1.7 MTD-734-1855
...
xx
Wheel, 8 x 1.7 MTD-734-1855
...
xx
MAT:FLOOR:SNOW THR accessory MTD-490-241-0030
...
xx
SIPHON PUMP accessory MTD-490-850-0008
...
xx
COATING-GRAPHITE MOWER accessory MTD-490-900-0062

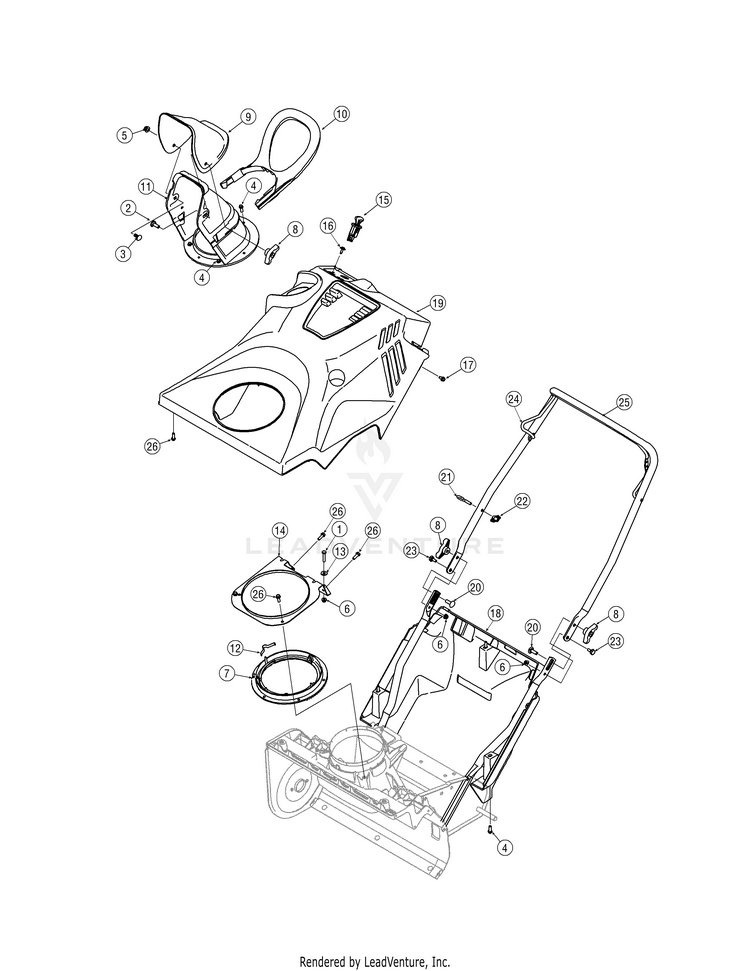

Chute & Handle Assembly

...
...
1
Hex Screw, 1/4-20 x 1.25 MTD-710-0106
...
2
Carriage Bolt, 5/16-18 x 1.00 MTD-710-04071
...
3
Carriage Bolt, 5/16-18 x .750 MTD-710-0451
...
4
Hex Washer Screw, 1/4 x .750 MTD-710-05108
...
5
Flange Lock Nut, 5/16-18 MTD-712-04063
...
6
Flange Lock Nut, 1/4-20 MTD-712-04064
...
7
BEVEL GEAR 95T MTD-917-04844B
...
8
Wing Knob, 5/16-18 MTD-720-04122
...
9
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
10
Chute Handle MTD-731-07644
...
11
LOWER CHUTE 6.5 MTD-931-07753A
...
12
Chute Adjustment Spring MTD-932-04111
...
13
Flat Washer, .28 x .74 x .063 MTD-736-0173
...
14
CHUTE BRACKET MTD-790-00401-0637
...
15
Ignition Switch MTD-951-10637
...
16
Hex Washer Screw, 10-16 x .625 MTD-710-04669
...
17
Hex Washer Screw, 1/4-20 x .500 MTD-710-0599
...
18
Bottom Cover MTD-731-07725B
...
19
COVER (D-STYLE) (W/O CRANK BLACK) MTD-931-04578F
...
20
Carriage Screw, 5/16-18 x 1.00 MTD-710-04998
...
21
Eye Bolt, 1/4-20 MTD-710-1205
...
22
Handle Knob MTD-720-0279
...
23
Shoulder Screw, 1/4-20 x .375 x .148 MTD-738-04419A
...
24
AUGER BAIL MTD-747-05327C-0637
...
25
UPPER HANDLE (POWDER BLACK) MTD-749-04703D-0637
...
26
Screw, Hi-Lo:1/4-15, 0.75 MTD-710-0895

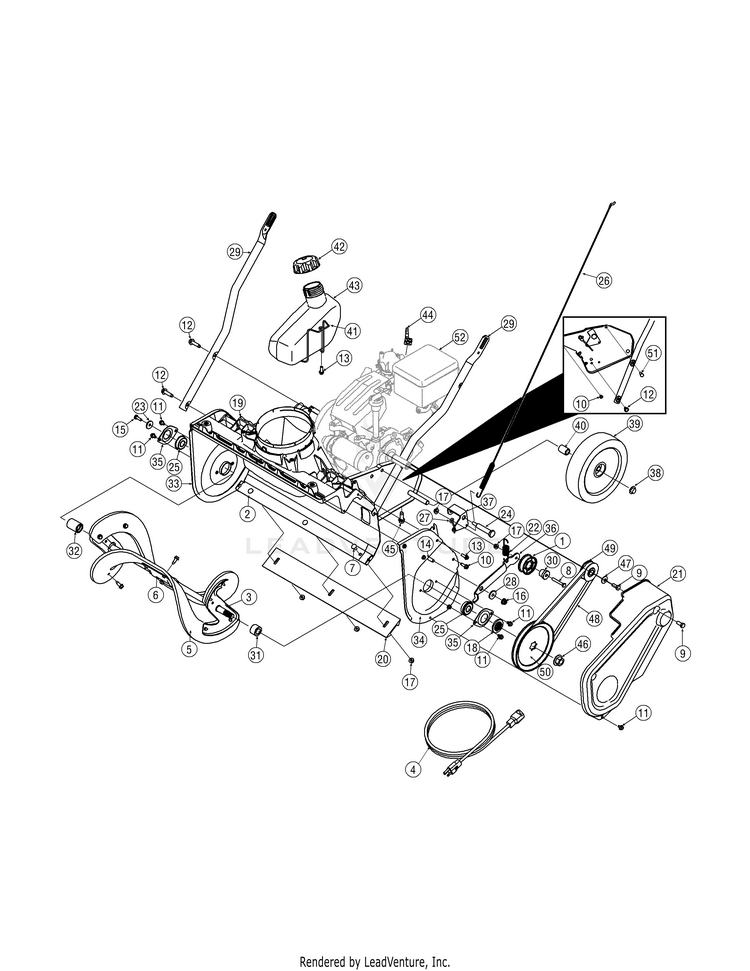

Drive & Auger Assembly

...
...
1
Idler Pulley Assembly MTD-684-04168
...
2
SINGLE STAGE SNOW FRAME KIT MTD-753-11131B
...
3
AUGER ASSEMBLY MTD-984-04364
...
3
AUGER MOUNT ASSEMBLY (POWDER BLACK) (Not shown, w/o paddles and center auger bracket) MTD-684-04362-0637
...
4
3-Prong Extension Cord MTD-929-0071B
...
5
Auger Paddle Replacement Kit (Includes 2 Paddles and 12 Hex Washer Screws) MTD-753-06469
...
6
Center Auger Bracket MTD-790-00427-0637
...
7
Carriage Screw, 1/4-20 x .62 MTD-710-0134
...
8
Hex Screw, 1/4-20 x 1.757 MTD-710-0136
...
9
Hex Lock Screw, 5/16-24 x .750 MTD-710-0627
...
10
Hex Washer Screw, 1/4-20 x .750 MTD-710-0642
...
11
Hex Washer Screw, 1/4-20 x .375 MTD-710-0653
...
12
Hex Washer Screw, 5/16-18 x 1.250 MTD-710-0817
...
13
Hex Washer Screw, 1/4-15 x .750 MTD-710-0895
...
14
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
15
Hex Lock Screw, 1/4-20 x .750 MTD-710-3296
...
16
Flange Lock Nut, 5/16-18 MTD-712-04063
...
17
Flange Lock Nut, 1/4-20 MTD-712-04064
...
18
Pulley Hub MTD-718-04737
...
19
CHUTE ADAPTER MTD-931-07626B
...
20
Shave Plate MTD-931-07667
...
21
Belt Cover MTD-731-07737A
...
22
Extension Spring, .70 x 3.035 MTD-732-04748
...
23
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
24
SHOULDER BOLT MTD-738-04456
...
25
Ball Bearing, .625 x 37 x 12 MTD-741-04188A
...
26
Clutch Cable MTD-946-04701
...
27
Drive Cable Wire Support MTD-747-05360A
...
28
Shoulder Spacer MTD-748-0234
...
29
LOWER HANDLE (ADJUSTABLE) MTD-749-04694-0637
...
30
Shoulder Spacer, .260 x .785 x .538 MTD-750-04571
...
31
LH Auger Spacer MTD-750-04758
...
32
RH Auger Spacer MTD-750-05393
...
33
AUGER HOUSING PLATE (RH) (BLACK) MTD-790-00390-0691
...
34
AUGER HOUSING PLATE (RH) (CRAFTSMAN RED) MTD-790-00390-4044
...
34
AUGER HOUSING PLATE (LH) (BLACK) MTD-790-00391
...
35
AUGER HOUSING PLATE (LH) (CRAFTSMAN RED) MTD-790-00391-4044
...
35
AUGER HOUSING BEARING CUP (BLACK) MTD-790-00403-0691
...
36
AUGER HOUSING BEARING CUP (CRAFTSMAN RED) MTD-790-00403-4044
...
36
IDLER BRACKET MTD-790-00406-0637
...
37
Cable Idler Bracket MTD-790-00426
...
38
Push Cap, 1/2 MTD-726-0299
...
39
Wheel, 8 x 1.7 MTD-734-1855
...
40
Sleeve Spacer, .525 x .78 x 1.00 MTD-750-05417
...
41
FUEL TANK SUPPORT MTD-747-05341
...
42
FUEL CAP MTD-751-10487C
...
43
FUEL TANK (2 QT) MTD-751-14001B
...
44
Choke Extension Lever MTD-731-07664
...
45
Hex Washer Screw, 3/8-16 x 1.000 MTD-710-0654A
...
46
Flange Nut, 9/16-18 MTD-712-0700
...
47
Flat Washer, .343 x .88 x .062 MTD-736-0371
...
48
Auger Drive Belt MTD-954-04050A
...
49
Pulley Half, .625 x 2.25 MTD-956-0416B
...
50
Pulley, 1/2 x 6.00 MTD-756-04443
...
51
Hex Screw, 5/16-24 x 1.25 MTD-710-05183
...
52
Complete Engine MTD-952Z265-JU-12

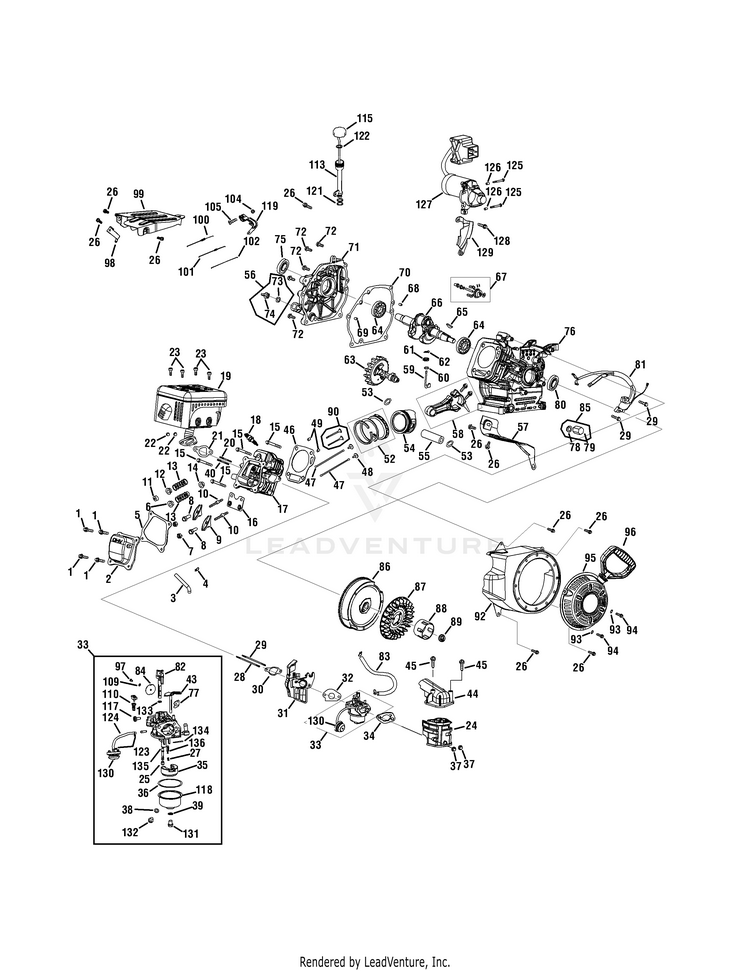

Engine Assembly 265-JU

...
...
1
Bolt MTD-710-04968
...
2
Valve Cover MTD-951-11054B
...
2
Valve Cover Furnish 951-11063, Valve Cover Kit MTD-951-11054B
...
3
Breather Hose MTD-731-07059
...
4
Hose Clamp MTD-726-04101
...
5
VALVE COVER GASKET Furnish 951-11063, Valve Cover Kit MTD-751P11565B
...
5
VALVE COVER GASKET Furnish 951-12028, Gasket Kit Complete MTD-751P11565B
...
5
VALVE COVER GASKET Furnish 951-10722A, Cylinder Head Assy MTD-751P11565B
...
5
VALVE COVER GASKET Furnish 951-12029, Short Block Assy MTD-751P11565B
...
5
VALVE COVER GASKET Furnish 951-12026, Gasket Kit External MTD-751P11565B
...
6
Intake Valve Spring Seat Furnish 951-10722A, Cylinder Head Assy MTD-951-12000
...
7
Pivot Locking Nut MTD-751-11124
...
7
Pivot Locking Nut Furnish 951-10722A, Cylinder Head Assy MTD-751-11124
...
8
Valve Adjusting Nut MTD-751-11123
...
8
Valve Adjusting Nut Furnish 951-10722A, Cylinder Head Assy MTD-751-11123
...
9
Rocker Arm Furnish 951-10722A, Cylinder Head Assy MTD-951-11893
...
10
Pivot Bolt MTD-710-04902
...
10
Pivot Bolt Furnish 951-10722A, Cylinder Head Assy MTD-710-04902
...
11
EXHAUST VALVE ADJUSTER Furnish 951-10722A, Cylinder Head Assy MTD-751P12002A
...
12
Exhaust Valve Spring Seat Furnish 951-10722A, Cylinder Head Assy MTD-951-12003
...
13
VALVE SPRING Furnish 951-10722A, Cylinder Head Assy MTD-751P12004A
...
14
Intake Valve Seal Furnish 951-10722A, Cylinder Head Assy MTD-951-11894
...
15
Bolt MTD-710-04933
...
16
Push Rod Guide Plate Furnish 951-10722A, Cylinder Head Assy MTD-951-11895
...
17
Cylinder Head - Complete Furnish 951-10722A, Cylinder Head Assy MTD-NA
...
18
Spark Plug MTD-951-10292A
...
19
MUFFLER ASSEMBLY MTD-951-12010A
...
20
Stud, M8×34, Exhaust MTD-710-04911
...
20
Stud, M8×34, Exhaust Furnish 951-12027, Muffler Stud Assembly MTD-710-04911
...
21
MUFFLER GASKET MTD-751P11289A
...
21
MUFFLER GASKET Furnish 951-12028, Gasket Kit Complete MTD-751P11289A
...
21
MUFFLER GASKET Furnish 951-10722A, Cylinder Head Assy MTD-751P11289A
...
21
MUFFLER GASKET Furnish 951-12029, Short Block Assy MTD-751P11289A
...
21
MUFFLER GASKET Furnish 951-12026, Gasket Kit External MTD-751P11289A
...
22
Nut MTD-712-04214
...
23
HEX FLANGE BOLT M5x10 MTD-710-09956
...
24
Heater Box Base MTD-951-10962
...
25
Main Jet Furnish 951-12011, Carburetor Assy MTD-NA
...
25
Main Jet Choose a Carburetor Kit Below MTD-NA
...
26
Bolt MTD-710-04915
...
27
Needle Valve Spring Furnish 951-12011, Carburetor Assy MTD-NA
...
27
Needle Valve Spring Choose a Carburetor Kit Below MTD-NA
...
28
Stud, M6 x110 MTD-710-05101
...
29
Bolt MTD-710-04919
...
30
CARBURETOR INSULATOR GASKET Furnish 951-12028, Gasket Kit Complete MTD-751P11567B
...
30
CARBURETOR INSULATOR GASKET Furnish 951-10722A, Cylinder Head Assy MTD-751P11567B
...
30
CARBURETOR INSULATOR GASKET Furnish 951-12029, Short Block Assy MTD-751P11567B
...
30
CARBURETOR INSULATOR GASKET Furnish 951-12026, Gasket Kit External MTD-751P11567B
...
31
INSULATOR Furnish 951-12028, Gasket Kit Complete MTD-751P11568A
...
31
INSULATOR Furnish 951-10722A, Cylinder Head Assy MTD-751P11568A
...
31
INSULATOR Furnish 951-12029, Short Block Assy MTD-751P11568A
...
31
INSULATOR Furnish 951-12026, Gasket Kit External MTD-751P11568A
...
32
CARBURETOR GASKET Furnish 951-12028, Gasket Kit Complete MTD-751P12005B
...
32
CARBURETOR GASKET Furnish 951-12026, Gasket Kit External MTD-751P12005B
...
33
CARBURETOR ASSEMBLY Incl. Ref No. 25,27,36,36,38,39,43,77,82,84,97,109,110,117,118,123,124,130-136 MTD-951-12704A
...
34
CARBURETOR GASKET PLATE Furnish 951-12028, Gasket Kit Complete MTD-951-11571
...
34
CARBURETOR GASKET PLATE Furnish 951-12026, Gasket Kit External MTD-951-11571
...
35
FLOAT Furnish 951-12011, Carburetor Assy MTD-731P09132A
...
35
FLOAT Choose a Carburetor Kit Below MTD-731P09132A
...
36
Fuel Bowl Gasket Furnish 951-12011, Carburetor Assy MTD-951-11589
...
36
Fuel Bowl Gasket Choose a Carburetor Kit Below MTD-951-11589
...
37
Nut MTD-712-04213
...
38
FUEL DRAIN PLUG GASKET Furnish 951-12011, Carburetor Assy MTD-951-11349A
...
38
FUEL DRAIN PLUG GASKET Choose a Carburetor Kit Below MTD-951-11349A
...
39
FUEL BOWL GASKET Furnish 951-12011, Carburetor Assy MTD-951-11348A
...
39
FUEL BOWL GASKET Choose a Carburetor Kit Below MTD-951-11348A
...
40
EXHAUST STUD KIT Incl. Ref No. 20 MTD-951-14190
...
43
Choke Shaft Furnish 951-12011, Carburetor Assy MTD-NA
...
44
Heater Box MTD-951-10961
...
45
Bolt MTD-710-05275
...
46
Cylinder Head Gasket Furnish 951-12028, Gasket Kit Complete MTD-951-11898
...
46
Cylinder Head Gasket Furnish 951-10722A, Cylinder Head Assy MTD-951-11898
...
46
Cylinder Head Gasket Furnish 951-12029, Short Block Assy MTD-951-11898
...
47
Push Rod Kit (incl. intake and exhaust rod) MTD-951-10648
...
48
Tappet Furnish 951-12029, Short Block Assy MTD-951-11899
...
49
Dowel Pin 10×16 MTD-715-04108
...
49
Dowel Pin 10×16 Furnish 951-12029, Short Block Assy MTD-715-04108
...
52
Piston Ring Set Furnish 951-12029, Short Block Assy MTD-951-11688
...
53
PISTON PIN SNAP RING Furnish 951-12029, Short Block Assy MTD-951-11632
...
54
Piston Furnish 951-12029, Short Block Assy MTD-951-11900
...
55
Piston Pin Furnish 951-12029, Short Block Assy MTD-951-11901
...
56
Oil Fill Plug Assembly Incl. Ref No. 43,74 MTD-951-11283
...
57
Air Shield MTD-951-11113
...
58
CONNECTING ROD Furnish 951-12029, Short Block Assy MTD-751P11573A
...
59
Governor Shaft MTD-951-14053
...
59
Governor Shaft Furnish 951-12029, Short Block Assy MTD-951-14053
...
60
Washer MTD-736-04461
...
60
Washer Furnish 951-12028, Gasket Kit Complete MTD-736-04461
...
60
Washer Furnish 951-12029, Short Block Assy MTD-736-04461
...
61
OIL SEAL Furnish 951-12028, Gasket Kit Complete MTD-951-11902A
...
61
OIL SEAL Furnish 951-12031, Crankcase Kit MTD-951-11902A
...
61
OIL SEAL Furnish 951-12029, Short Block Assy MTD-951-11902A
...
62
Cotter Pin MTD-714-04078
...
62
Cotter Pin Furnish 951-12028, Gasket Kit Complete MTD-714-04078
...
62
Cotter Pin Furnish 951-12029, Short Block Assy MTD-714-04078
...
63
CAMSHAFT ASSEMBLY Furnish 951-12029, Short Block Assy MTD-951-11575
...
64
Radial Ball Bearing MTD-951-11369
...
64
Radial Ball Bearing Furnish 951-12031, Crankcase Kit MTD-951-11369
...
64
Radial Ball Bearing Furnish 951-12029, Short Block Assy MTD-951-11369
...
64
Radial Ball Bearing Furnish 951-11246, Crankcase Cover Kit MTD-951-11369
...
64
Radial Ball Bearing Furnish 951-12030, Crankcshaft Kit MTD-951-11369
...
65
WOODRUFF KEY MTD-751P10307A
...
65
WOODRUFF KEY Furnish 951-12029, Short Block Assy MTD-751P10307A
...
65
WOODRUFF KEY Furnish 951-12030, Crankcshaft Kit MTD-751P10307A
...
66
Crankshaft Assembly Furnish 951-12029, Short Block Assy MTD-NA
...
66
Crankshaft Assembly Furnish 951-12030, Crankcshaft Kit MTD-NA
...
67
GOVERNOR GEAR Furnish 951-12029, Short Block Assy MTD-751P11576A
...
68
DOWEL PIN 9 X 14 MTD-715-04096A
...
68
DOWEL PIN 9 X 14 Furnish 951-12029, Short Block Assy MTD-715-04096A
...
69
DOWEL PIN 9 X 14 MTD-715-04096A
...
69
DOWEL PIN 9 X 14 Furnish 951-12029, Short Block Assy MTD-715-04096A
...
70
CRANKCASE GASKET MTD-751P11371B
...
70
CRANKCASE GASKET Furnish 951-12028, Gasket Kit Complete MTD-751P11371B
...
70
CRANKCASE GASKET Furnish 951-12031, Crankcase Kit MTD-751P11371B
...
70
CRANKCASE GASKET Furnish 951-12029, Short Block Assy MTD-751P11371B
...
70
CRANKCASE GASKET Furnish 951-11246, Crankcase Cover Kit MTD-751P11371B
...
71
Cover Complete, Left Crankcase Furnish 951-12029, Short Block Assy MTD-NA
...
71
Case Cover Furnish 951-11246, Crankcase Cover Kit MTD-NA
...
72
Cover Bolt MTD-710-04932
...
72
Cover Bolt Furnish 951-12029, Short Block Assy MTD-710-04932
...
72
Cover Bolt Furnish 951-11246, Crankcase Cover Kit MTD-710-04932
...
73
O-RING 15.8 x 2.5 Furnish 951-11283, Oil Fill Plug Assy MTD-951-11577
...
73
O-RING 15.8 x 2.5 Furnish 951-12029, Short Block Assy MTD-951-11577
...
73
O-RING 15.8 x 2.5 Furnish 951-11246, Crankcase Cover Kit MTD-951-11577
...
74
Oil FIll Plug Furnish 951-11283, Oil Fill Plug Assy MTD-NA
...
74
Oil Fill Plug Furnish 951-12029, Short Block Assy MTD-NA
...
74
Oil Fill Plug Furnish 951-11246, Crankcase Cover Kit MTD-NA
...
75
OIL SEAL MTD-751P11368A
...
75
OIL SEAL Furnish 951-12028, Gasket Kit Complete MTD-751P11368A
...
75
OIL SEAL Furnish 951-12029, Short Block Assy MTD-751P11368A
...
75
OIL SEAL Furnish 951-11246, Crankcase Cover Kit MTD-751P11368A
...
75
OIL SEAL Furnish 951-12030, Crankcshaft Kit MTD-751P11368A
...
76
Crankcase Furnish 951-12031, Crankcase Kit MTD-NA
...
76
Crankcase Furnish 951-12029, Short Block Assy MTD-NA
...
77
Choke Plate Furnish 951-12011, Carburetor Assy MTD-NA
...
78
FLAT WASHER MTD-736-04440A
...
78
FLAT WASHER Furnish 951-12028, Gasket Kit Complete MTD-736-04440A
...
78
FLAT WASHER Furnish 951-12029, Short Block Assy MTD-736-04440A
...
78
FLAT WASHER Furnish 951-12026, Gasket Kit External MTD-736-04440A
...
79
Oil Drain Plug Washer Furnish 951-12029, Short Block Assy MTD-710-04906
...
80
OIL SEAL MTD-751P11370A
...
80
OIL SEAL Furnish 951-12028, Gasket Kit Complete MTD-751P11370A
...
80
OIL SEAL Furnish 951-12031, Crankcase Kit MTD-751P11370A
...
80
OIL SEAL Furnish 951-12029, Short Block Assy MTD-751P11370A
...
80
OIL SEAL Furnish 951-12030, Crankcshaft Kit MTD-751P11370A
...
81
Ignition Coil MTD-951-12013
...
82
Throttle Shaft Furnish 951-12011, Carburetor Assy MTD-NA
...
83
Fuel Line Kit (incl. clamps and fuel line) MTD-951-12012
...
84
Throttle Plate Furnish 951-12011, Carburetor Assy MTD-NA
...
85
Oil Drain Assembly, includes 78, 79 MTD-951-10370
...
86
Flywheel MTD-951-10805
...
87
COOLING FAN MTD-951-10909B
...
88
Starter Cup MTD-951-10911
...
89
FLYWHEEL NUT M14-1.5 MTD-712-04287A
...
90
Valve Kit MTD-951-10647A
...
90
Valve Kit Furnish 951-10722A, Cylinder Head Assy MTD-951-10647A
...
92
BLOWER HOUSING MTD-951-12099
...
93
FLAT WASHER MTD-736-04455B
...
94
Bolt MTD-710-04974
...
95
Recoil Starter MTD-951-14152
...
96
Starter Handle MTD-731-05696
...
97
Screw, M3×5 Furnish 951-12011, Carburetor Assy MTD-NA
...
98
Governor Spring Bracket MTD-951-11104
...
99
Governor Shield MTD-951-12016
...
100
Governor Spring MTD-951-12100
...
101
THROTTLE SPRING MTD-751P10664A
...
102
THROTTLE LINKAGE MTD-751P10665A
...
104
Nut M6 MTD-712-05015
...
105
Bolt MTD-710-04908
...
109
Lock Washer Furnish 951-12011, Carburetor Assy MTD-NA
...
110
Idle Jet Assembly Furnish 951-12011, Carburetor Assy MTD-NA
...
113
Dipstick Tube MTD-NA
...
113
Dipstick Tube Furnish 951-11913, Oil Fill Tube Assy MTD-NA
...
115
Dipstick MTD-NA
...
115
Dipstick Furnish 951-11912, Dipstick Assy MTD-NA
...
117
Idle Speed Adjusting Screw Furnish 951-12011, Carburetor Assy MTD-NA
...
118
Fuel Bowl Furnish 951-12011, Carburetor Assy MTD-NA
...
119
Governor Arm Bracket MTD-951-11106
...
121
Oil Fill Tube O-Ring MTD-951-11381
...
121
Oil Fill Tube O-Ring Furnish 951-11913, Oil Fill Tube Assy MTD-951-11381
...
122
Dipstick O-Ring MTD-951-11904
...
122
Dipstick O-Ring Furnish 951-11912, Dipstick Assy MTD-951-11904
...
123
Hose Clamp Furnish 951-12011, Carburetor Assy MTD-951-11906
...
124
PRIMER HOSE Furnish 951-12011, Carburetor Assy MTD-951-12019A
...
125
Bolt MTD-710-05182
...
126
DOWEL PIN MTD-715-04088A
...
127
Electric Starter MTD-951-10645A
...
128
Bolt MTD-710-04979
...
129
Blower Housing Shield MTD-951-11109
...
130
PRIMER MTD-951-10639B
...
130
PRIMER Furnish 951-12011, Carburetor Assy MTD-951-10639B
...
131
Bolt MTD-710-04945
...
131
Bolt Furnish 951-12011, Carburetor Assy MTD-710-04945
...
132
FUEL DRAIN PLUG MTD-710-04938
...
132
FUEL DRAIN PLUG Furnish 951-12011, Carburetor Assy MTD-710-04938
...
133
Gasket, Throttle Plate Furnish 951-12011, Carburetor Assy MTD-NA
...
133
Gasket, Throttle Plate Choose a Carburetor Kit Below MTD-NA
...
134
Float Pin Furnish 951-12011, Carburetor Assy MTD-NA
...
134
Float Pin Choose a Carburetor Kit Below MTD-NA
...
135
Emulsion Tube Furnish 951-12011, Carburetor Assy MTD-NA
...
135
Emulsion Tube Choose a Carburetor Kit Below MTD-NA
...
136
Needle Valve Furnish 951-12011, Carburetor Assy MTD-NA
...
136
Needle Valve Choose a Carburetor Kit Below MTD-NA
...
xx
Cylinder Head Assembly Incl. Ref No. 5-14,16,17,21,30,31,46,90 (Not Shown) MTD-951-10722B
...
xx
Carburetor Repair Kit - HAUYI Incl. Ref No. 25,27,35,36,38,39,133-136 (Not Shown) MTD-951-14050
...
xx
Carburetor Repair Kit - DENI Incl. Ref No. 25,27,35,36,38,39,133-136 (Not Shown) MTD-951-12712
...
xx
Valve Cover Kit Incl. Ref No. 2,5 (Not Shown) MTD-951-12626
...
xx
Crankcase Cover Kit Incl. Ref No. 64,70-75 (Not Shown) MTD-951-11246
...
xx
Dipstick Assembly Incl. Ref No. 115,122 (Not Shown) MTD-951-11912
...
xx
Oil Fill Tube Assembly Incl. Ref No. 113,121 (Not Shown) MTD-951-11913
...
xx
Gasket Kit-External Incl. Ref No. 5,21,30-32,34,78 (Not Shown) MTD-951-12026A
...
xx
Gasket Kit, Complete Incl. Ref No. 5,21,30-32,34,46,60-62,70,75,78,80 (Not Shown) MTD-951-12028
...
xx
Short Block Incl. Ref No. 5,21,30,31,46,48,49,52-55,58-76,78-80 (Not Shown) MTD-951-12648
...
xx
Crankshaft Kit Incl. Ref No. 64-66,75,80 (Not Shown) MTD-951-12102
...
xx
CRANKCASE KIT Incl. Ref No. 61,64,70,76,80 (Not Shown) MTD-951-12031
...
xx
Complete Engine (Not Shown) MTD-952Z265-JU-12

Label Map

...
...
777I22139
LBL:SNOW:HANDLE MTD-777I22139
...
777I23401
LABEL-ELC START/PRIMER DOM 21" MTD-777I23462
...
777X43688
LABEL-ETHANOL MTD-777X43688
...
777X43293
LABEL-SNOW ELECTRIC START MTD-777X43293
...
777S33118
LABEL-SNOW FRONT AUGER DANGER MTD-777S33118
...
777X43243
LBL:SNW:MTD ENG OIL HANG TAG MTD-NA
...
777S33636
LABEL-DNGR/WARNG/START DOM 21" MTD-777S33636
...
777D14845
LABEL-SNOW SHROUD CRAFTSMAN MTD-777D14845
...
777S32236
LABEL:SNOW CHUTE MTD-777S32236
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
