Craftsman 31AE5HTG799 (247.887900) (2007) Snow Blower

Model: 31AE5HTG799 (247.887900) (2007)

Back To Assemblies

Save Part Not Listed?
product name

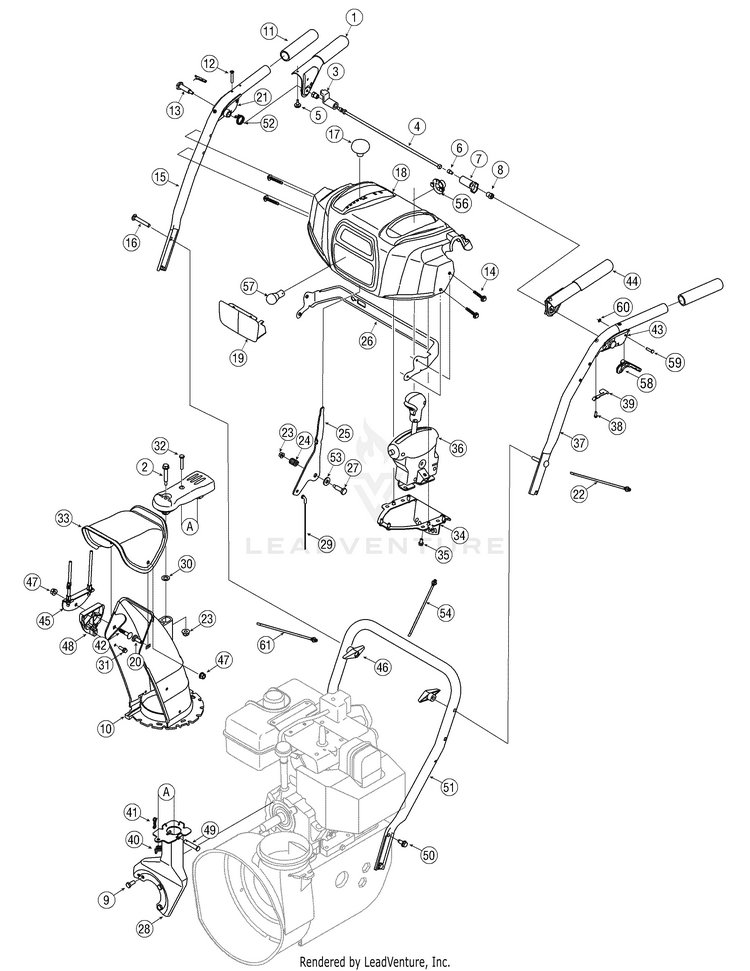

Handlebar Assembly

...
...
1
HANDLE ASSEMBLY (RH) MTD-684-04112D
...
2
Flange Shoulder Screw MTD-738-04194
...
3
LOCK PLATE MTD-731-04894D
...
4
Pivot Rod MTD-684-04250
...
5
Rubber Bumper MTD-735-0199A
...
6
Screw, 1/4-20 x.375 MTD-710-04354
...
7
CLUTCH LOCK CAM MTD-731-04896C
...
8
Shoulder Nut, 1/4-20 MTD-712-04081A
...
9
Hex Screw, 5/16-24 x .750 MTD-710-0627
...
10
Lower Chute MTD-731-04861B
...
11
Handle Grip MTD-720-0274
...
12
Screw, #10-24 x 0.375 MTD-710-1233
...
13
SHOULDER SCREW .437 x 1.345 1/4-20 MTD-738-04348
...
14
Screw, 1/4-20 x 1.625 MTD-710-04586
...
15
Upper Handle, RH MTD-749-04190A
...
16
Carrriage Bolt, 5/16-18 2.50 MTD-710-0572
...
17
Shift Knob MTD-720-04039
...
18
Handle Panel MTD-931-04187A
...
19
Lens MTD-731-05324
...
20
Carriage Bolt, 5/16-18 x 1.0 MTD-710-04071
...
21
Handle Clutch Lock RH Assy MTD-631-04134B
...
22
Cable Tie MTD-725-0157
...
23
Flange Lock Nut, 1/4-20 MTD-712-04064
...
24
Compression Spring MTD-732-0193
...
25
SHIFT LEVER MTD-790-00311C-0637
...
26
HANDLE SUPPORT BRACKET MTD-790-00248E-0637
...
27
Shoulder Screw MTD-738-04125
...
28
CHUTE SUPPORT BRACKET ASSEMBLY (POWDER BLACK) (use with 684-04116B 4 Way Chute Control Assembly) MTD-684-04162B-0637
...
28
CHUTE SUPPORT BRACKET (POWDER BLACK) (use with 753-08388 4 Way Chute Control Assembly Service Kit) MTD-684-04310B-0637
...
29
Speed Cable MTD-946-04396A
...
30
Flat Washer, .25 x .630 x .0515 MTD-736-0463
...
31
Hi-Lo Screw, 1/4-15 x .75 MTD-710-0895
...
32
Hex Screw, 1/4-20 x 1.50 MTD-710-0606
...
33
UPPER REMOTE CHUTE WITH LABEL MTD-731-04427B
...
34
JOYSTICK MOUNTING BRACKET MTD-790-00155A-0637
...
35
HEX SCREW 1/4-15 x .50 MTD-710-04187A
...
36
SERVICE KIT 4-WAY CHUTE CONTROL (Also order 684-04310A-0637 support bracket in this application) (Replaces 684-04116B 4 Way Chute Control) (Discard the support bracket furnished in the 753-08388 service kit) MTD-753-08388A
...
37
Upper Handle, LH MTD-749-04191A
...
38
Screw, #8-16 x 0.50 MTD-710-04326
...
39
CLUTCH SPRING MTD-732-04219C
...
40
WING NUT 1/4-20 MTD-712-3087
...
41
Bow Tie Cotter Pin MTD-714-04040
...
42
Carriage Bolt, 5/16-18 x 1.50 MTD-710-0262
...
43
Handle Clutch Lock LH Assy MTD-631-04133A
...
44
ENGAGEMENT HANDLE (RED) (LH) MTD-684-04111D
...
45
Cable Bracket MTD-784-5594
...
46
Wing Knob MTD-720-0284
...
47
Flange Lock Nut, 5/16-18 MTD-712-04063
...
48
Chute Tilt Cable Guide MTD-731-1313C
...
49
Clevis Pin MTD-711-04469A
...
50
SCREW 5/16-18 x .750 MTD-710-04484
...
51
Lower Handle MTD-749-04138A
...
52
TORSION SPRING MTD-732-04238B
...
53
FLAT WASHER .38X.88 MTD-736-0267
...
54
Cable Tie MTD-726-0470
...
56
HEADLIGHT SOCKET (1/4 TURN) MTD-925-1649A
...
57
Lamp MTD-925-1629
...
58
Steering Control MTD-731-06113
...
59
Pin, 3/16 MTD-738-04126
...
60
E-Ring MTD-716-04036
...
xx
HARNESS (Not Shown) MTD-725-04214
