Craftsman 31AE5D8E099 (247.888160) (2003) Snow Blower

Model: 31AE5D8E099 (247.888160) (2003)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

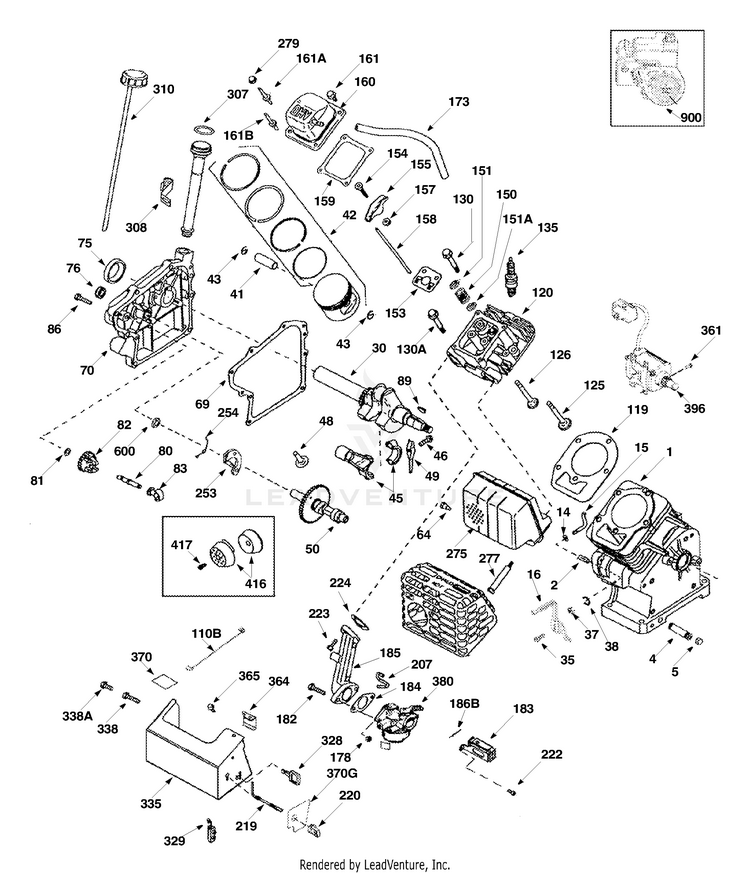

Craftsman Engine Model 143.026503 (Part 1)

...
...
1
Cylinder (Incl. 2 & 20) MTD-37120B
...
2
Dowel Pin MTD-26727
...
4
Oil Drain Extension MTD-31857
...
5
Extension Cap MTD-30969
...
14
Washer MTD-651052
...
15
Governor Rod MTD-37108
...
16
Governor Lever MTD-37110
...
30
Crankshaft MTD-35975
...
35
Screw, 10-32 x 63/64" MTD-651053
...
37
Lock Nut, 10-32 MTD-29216
...
38
Retaining Ring MTD-37109
...
41
Piston & Pin Ass'y (Std.) (Incl. 43) MTD-36070
...
41
Piston & Pin Ass'y (.010" OS) (Incl. MTD-36071
...
42
Ring Set (Std.) MTD-40006
...
42
Ring Set (.010" OS) MTD-40007
...
43
Piston Pin Retaining Ring MTD-20381
...
45
Connecting Rod Ass'y (Incl. 46 & 49) MTD-32875A
...
46
Connecting Rod Bolt MTD-32610A
...
48
Valve Lifter MTD-35616
...
49
Oil Dipper MTD-36611
...
50
Camshaft (Incl. 253 & 254) MTD-36903
...
64
Screw, 1/4-20 x 27/32" MTD-651027
...
69
Cylinder Cover Gasket MTD-36624
...
70
Cylinder Cover (Incl. 75 thru 83) MTD-36724
...
75
OIL SEAL MTD-TC-27897
...
76
Camshaft Seal MTD-30318
...
80
Governor Shaft MTD-30574A
...
81
Washer MTD-30590A
...
82
GEAR (Incl. 81) MTD-TC-30591
...
83
Governor Spool MTD-36057
...
86
Screw, 1/4-20 x 1-1/4" MTD-650488
...
89
KEY MTD-TC-610961
...
110B
Ground Wire MTD-36874
...
119
Cylinder Head Gasket MTD-36719
...
120
Cylinder Head MTD-37474
...
125
Exhaust Valve (Std.) (Incl. 151) MTD-36471
...
125
Exhaust Valve (1/32" OS) (Incl. 151) MTD-36472
...
126
Intake Valve (Std.) (Incl. 151) MTD-29314C
...
130
Screw, 5/16-18 x 1-1/2" MTD-650912
...
130A
Screw, 5/16-18 x 2-41/64" MTD-650999
...
135
SPARK PLUG MTD-RN4C
...
150
Valve Spring MTD-37039
...
151
Valve Spring Cap MTD-31673
...
151A
Intake Valve Seal MTD-40016A
...
153
Push Rod Guide MTD-36649
...
154
Rocker Arm Stud MTD-650913
...
155
Rocker Arm MTD-35624A
...
157
Nut, 1/4-28 MTD-650914
...
158
Push Rod MTD-36629
...
159
Rocker Arm Cover Gasket MTD-35626
...
160
Rocker Arm Cover MTD-36630A
...
161
Screw, 1/4-20 x 31/64" MTD-651008
...
161A
RING UPPER MTD-651034
...
161B
Stud MTD-651012
...
173
Breather Tube MTD-37676
...
178
Nut, 1/4-20 MTD-650852
...
182
Screw, 1/4-20 x 1" MTD-650451
...
183
Choke Bracket MTD-36867
...
184
GASKET MTD-TC-26756
...
185
INTAKE PIPE MTD-36631
...
186B
Choke Spring MTD-36652
...
207
Throttle Link MTD-36632
...
219
Choke Rod MTD-36868
...
220
KNOB-CHOKE MTD-TC-35438
...
222
Screw, 10-32 x 1/2" MTD-28820
...
223
Screw, 1/4-20 x 1" MTD-650451
...
224
Intake Pipe Gasket MTD-36581
...
253
Compression Release Weight MTD-36701
...
254
Compression Release Spring MTD-36702
...
275
Muffler MTD-36722
...
277
Screw, 1/4-20 x 2-9/32" MTD-650988
...
279
Nut & Lock Washer MTD-650852
...
307
O-RING MTD-TC-35499
...
308
Fill Tube Clip MTD-37079
...
310
Dipstick MTD-36878
...
328
Key MTD-TC-35062
...
329
TERMINAL MTD-TC-610973
...
335
Carburetor Cover MTD-36873
...
338
SCREW MTD-TC-650821
...
338A
SCREW MTD-TC-28942
...
361
Screw, T-30, 1/4-20 x 15/32" MTD-650990
...
364
Carburetor Cover Bracket MTD-36872
...
365
SCREW MTD-TC-650821
...
370
UNKNOWN MTD-NA
...
370G
Instruction Decal MTD-36534
...
380
Carburetor (Incl. 184) MTD-TC-640058A
...
396
Electric Starter Motor MTD-33290E
...
416
Spark Arrestor Kit (Incl. 417) (Optional) MTD-36085
...
417
SCREW (Optional) MTD-TC-650821
...
600
Washer MTD-651013
...
900
Shortblock MTD-754322A
...
...
...
...
...
