Craftsman 31AE5D8E099 (247.888160) (2003) Snow Blower

Model: 31AE5D8E099 (247.888160) (2003)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

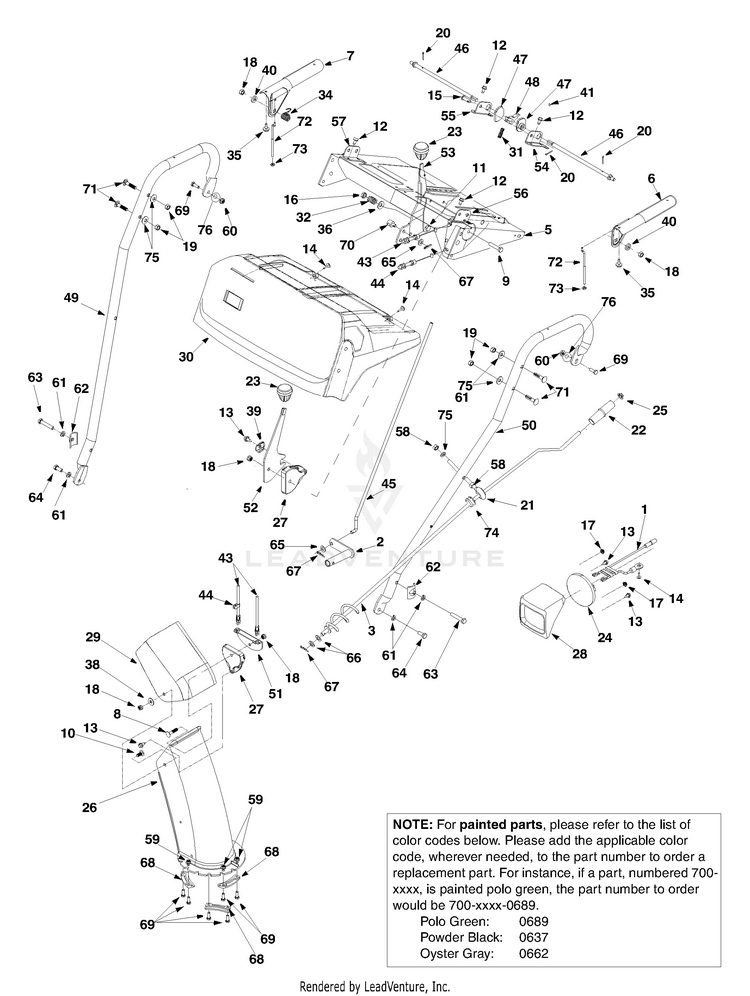

Handle & Chute Assembly

...
...
1
LIGHT HARNESS ASSEMBLY MTD-929-0058B
...
2
SHIFT ARM ASSEMBLY (POWDER BLACK) MTD-684-0008A-0637
...
3
Chute Crank Ass'y MTD-984-0022
...
?4
HARDWARE MTD-684-0066
...
5
Panel, Handle MTD-684-0102A
...
6
ENGAGEMENT HANDLE MTD-684-0111B
...
7
ENGAGEMENT HANDLE MTD-684-0112
...
8
Carriage Bolt 5/16-18 x 1.50 MTD-710-04071
...
9
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
10
Carriage Bolt 5/16-18 x.75 MTD-710-0451
...
11
Hex Screw 3/8-24 x 1.5 MTD-710-0459A
...
12
TT Screw 1/4-20 x 0.5" MTD-710-0599
...
13
Hex AB Tap Screw 1/4 x .62 MTD-710-0896
...
14
Special Screw, #10-16 x .625 MTD-710-04669
...
15
Clevis Pin MTD-711-0653
...
16
Hex Ins. Lock Nut 3/8-24 MTD-712-0116
...
17
SELF TAPP NUT MTD-712-0415
...
18
Lock Nut 5/16-18 MTD-712-0429
...
19
Hex L-Nut 5/16-18 Thd. MTD-712-3009
...
20
Cotter Pin MTD-714-0104
...
21
EYEBOLT MTD-747-0697
...
22
Chute Directional Control Knob MTD-720-0201A
...
23
SHIFT KNOB RED MTD-720-0300
...
24
HEADLIGHT MTD-925-1300
...
25
Push Cap MTD-726-0100
...
26
Lower Chute MTD-731-1300E
...
27
Cable Guide MTD-731-1313C
...
28
HEAD LIGHT BEZEL MTD-731-1317
...
29
UPPER REMOTE CHUTE WITH LABEL MTD-731-04427B
...
30
HANDLE PANEL MTD-731-1773A
...
31
Compression Spring MTD-732-0145
...
32
Compression Spring MTD-732-0193
...
34
Torsion Spring MTD-732-0746
...
35
Rubber Bumper MTD-735-0199A
...
36
Bell Washer .380 x .880 x .062 MTD-736-0105
...
?37
Washer 5/6 I.D. MTD-736-0159
...
38
SPECIAL WASHER MTD-736-0506A
...
39
Special Washer MTD-736-0509
...
40
Grease, Benalene 8 oz tube MTD-737-0300A
...
41
UNKNOWN MTD-NA
...
43
Chute Deflector Control Cable MTD-946-0896
...
44
Chute Deflector Cable w/ Clip MTD-946-0901
...
45
Shift Rod MTD-747-0798A
...
46
Cam Rod MTD-747-0877
...
47
Cam Handle Lock MTD-748-0362
...
48
Handle Lock Pawl MTD-948-0363
...
49
HANDLE (RH) MTD-749-0908A
...
50
HANDLE (LH) MTD-749-0909-0637
...
51
Cable Bracket MTD-784-5594
...
52
Handle, Chute Tilt MTD-784-5604A-0637
...
53
KIT-SHIFT HANDLE:S MTD-753-05395
...
54
HANDLE BRACKET (LH) MTD-784-5679-0637
...
55
Brkt., Handle Support - RH MTD-784-5680-0637
...
56
Handle Support Bracket 3/8 LH MTD-784-5681
...
57
Brkt., Handle Support - RH MTD-784-5682-0637
...
58
HEX NUT 5/16-18 MTD-712-3010
...
59
LOCK NUT 1/4 MTD-912-3027
...
60
HEX NUT 1/4-20 MTD-912-0287
...
61
Lock Wash. 5/16" I.D. MTD-936-0119
...
62
Handle Tab MTD-984-5599
...
63
SCREW 5/16-18 x 1.75 GR5 MTD-710-3259
...
64
Hex Bolt 5/16-18 x 0.75" Gr. 5 MTD-710-1880
...
65
FLAT WASHER MTD-736-0275
...
66
Flat Washer 3/8 x .738 x .063" MTD-736-0185
...
67
Hairpin Clip MTD-714-0104
...
68
Chute Flange Keeper MTD-731-0851A
...
69
Hex Bolt 1/4-20 x 0.75" Gr.5 MTD-710-3015
...
70
Engagement Ferru MTD-911-0677
...
71
Carriage Bolt 5/16-18 x 1.50 MTD-710-0262
...
72
Cable "Z" Fitting MTD-946-0778
...
73
Hex Nut # 10-24 MTD-712-0121
...
74
Rubber Grommet MTD-735-0234
...
75
Cupped Washer MTD-736-0242
...
76
SPRING WASHER BELL MTD-736-0270
...
...
...
...
...
