Craftsman 31AE5D8E099 (247.888160) (2003) Snow Blower

Model: 31AE5D8E099 (247.888160) (2003)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

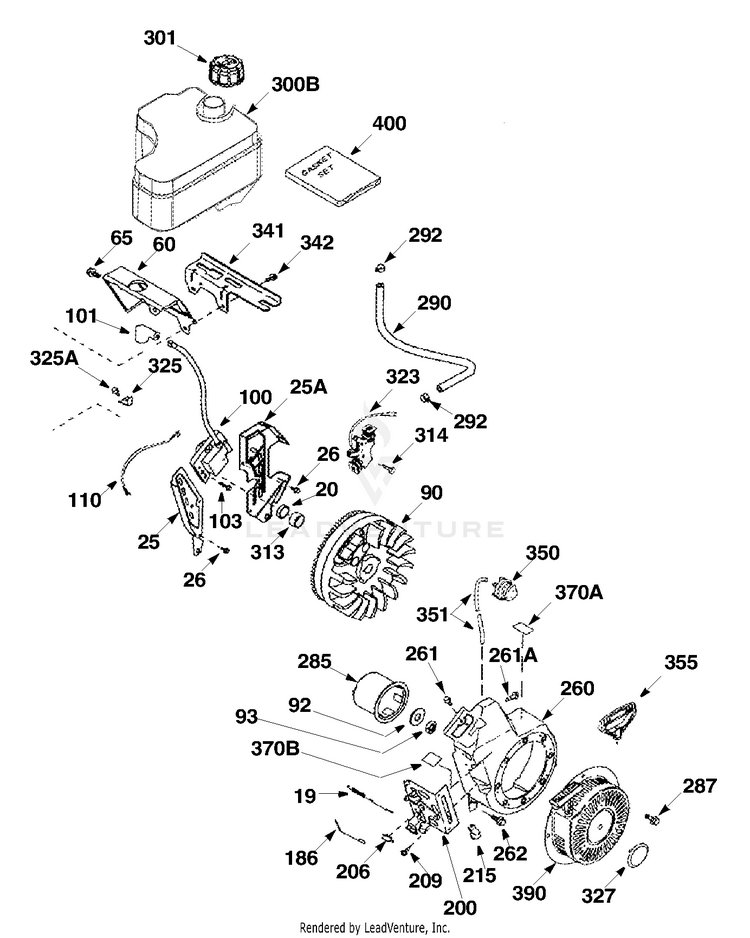

Craftsman Engine Model 143.026503 (Part 2)

...
...
19
EXTENSION SPRING MTD-TC-37111
...
20
Oil Seal MTD-32600
...
25
Air Baffle (Left) MTD-36621
...
25A
Air Baffle (Right) MTD-36869
...
26
SCREW (10-24x9/16") MTD-TC-30200
...
60
Blower Housing Extension MTD-36623A
...
65
SCREW (10-24x9/16") MTD-TC-30200
...
90
Flywheel MTD-611216
...
92
Belleville Washer MTD-650815
...
93
Flywheel Nut MTD-650816
...
100
Solid State Ignition MTD-34443B
...
101
Spark Plug Cover MTD-610118
...
103
Screw, T-15, 10-24 x 15/16" MTD-651007
...
110
Ground Wire MTD-36230
...
186
Governor Link MTD-36711
...
200
Control Bracket (Incl. 206) MTD-36824A
...
206
TERMINAL MTD-TC-610973
...
209
SCREW MTD-TC-650821
...
215
Control Knob MTD-32410
...
260
Blower Housing MTD-36901
...
261
Screw, 1/4-20 x 31/64" MTD-651008
...
261A
SCREW MTD-TC-650821
...
262
Screw, 1/4-20 x 31/64" MTD-651008
...
285
Starter Cup MTD-35985B
...
287
Screw, 1/4-20 x 31/64" MTD-651008
...
290
FUEL LINE MTD-TC-30705
...
292
CLAMP MTD-TC-26460
...
300B
Fuel Tank (Incl. 292 & 301) MTD-37048
...
301
Fuel Cap MTD-35355
...
313
Spacer MTD-34080
...
314
Screw, 1/4-20 x 3/4" MTD-650873
...
323
UNKNOWN MTD-NA
...
325
Fuel Line Bracket MTD-37471
...
325A
SCREW (10-24x9/16") MTD-TC-30200
...
327
Starter Plug MTD-35392
...
341
Fuel Tank Bracket (Lower) MTD-36644
...
342
Screw, 1/4-20 x 7/8" MTD-651010
...
350
Primer MTD-TC-570682A
...
351
LINE-PRIMER MTD-TC-32180C
...
355
HANDLE-STARTER MTD-TC-590574
...
370A
Lubrication Decal MTD-36261
...
370B
Control Decal MTD-36899
...
390
Rewind Starter MTD-590749
...
400
Gasket Set MTD-36720
...
...
...
...
...
