Craftsman 315E748F099 (247.885680) (1995) Snow Thrower

Model: 315E748F099 (247.885680) (1995)

Save
 Part Not Listed?Part Not Listed?
product name

Blower Housing - 26"

...
...
1
Bearing Hsg.-Spiral Hsg. MTD-05845C-0637
...
2
Bearing Housing MTD-05931A
...
3
GEARBOX ASSEMBLY 24" W FITTING MTD-918-0414B
...
xx
Gear Assembly: Auger 26" MTD-918-0415B
...
4
24" HOUSING ASSEMBLY MTD-684-0039D
...
xx
26" HOUSING ASSEMBLY MTD-684-0040D
...
5
12" IMPELLER (3 BLADE) (POWDER BLACK) MTD-684-06276-0637
...
6
24" SPIRAL ASSEMBLY (RH) (POWDER BLACK) MTD-684-04180-0637
...
xx
Spiral Assembly: RH 26" MTD-684-04182-0637
...
7
Spiral 24" LH MTD-684-04181-0637
...
xx
26" SPIRAL ASSEMBLY (LH) (POWDER BLACK) MTD-684-04183-0637
...
8
Reinforcement, Chute 5.0 MTD-705-5226
...
9
Bolt, Carriage MTD-710-0134
...
10
Screw, Hex MTD-710-0157
...
11
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
12
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
13
Screw, Carriage MTD-710-0451
...
14
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
15
SCREW 1/4-20X.75 GR5 MTD-710-0812
...
16
Shear Bolt 5/16-18 x 1.5" Lg. MTD-710-0890A
...
17
Hex Bolt 5/16-18 x .88" Lg. - 650C MTD-710-3038
...
18
Hex Lock Nut MTD-712-0116
...
19
Hex Nut 5/16-24 Thd. MTD-912-3057
...
20
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
21
HEX NUT 5/16-18 MTD-712-3010
...
22
HEX NUT 1/4-20 MTD-912-0287
...
23
LOCK NUT 1/4 MTD-912-3027
...
24
Spring Pin MTD-715-0114
...
25
Adapter Chute MTD-731-1379D
...
26
Ext. Spring 3.6" Lg. MTD-932-0611
...
27
Lock Wash. 5/16" I.D. MTD-936-0119
...
28
Wave Washer MTD-936-0167
...
29
Washer, Flat, .76 I.D. x 1.49 O.D. x .06 MTD-736-0188
...
30
Washer, Bell MTD-736-0242
...
31
L-Wash. 1/4" I.D. MTD-936-0329
...
32
Screw, Shoulder MTD-738-0281
...
33
Plastic Bearing w/Flats MTD-941-0300
...
34
Flange Ball Bearing MTD-941-0309
...
35
BUSHING .380 ID MTD-941-0475
...
36
FLANGE BUSHING MTD-741-0493C
...
37
Idler, Flat MTD-756-0178
...
38
Shoe, Slide MTD-784-5580
...
39
Shave Plate MTD-790-00120-0637
...
3
Shave Plate: Auger 26" MTD-790-00121-0637
...
40
Auger Idler Brkt. MTD-984-0064-0637
...
41
Chute Crank Bracket MTD-784-5647-0637

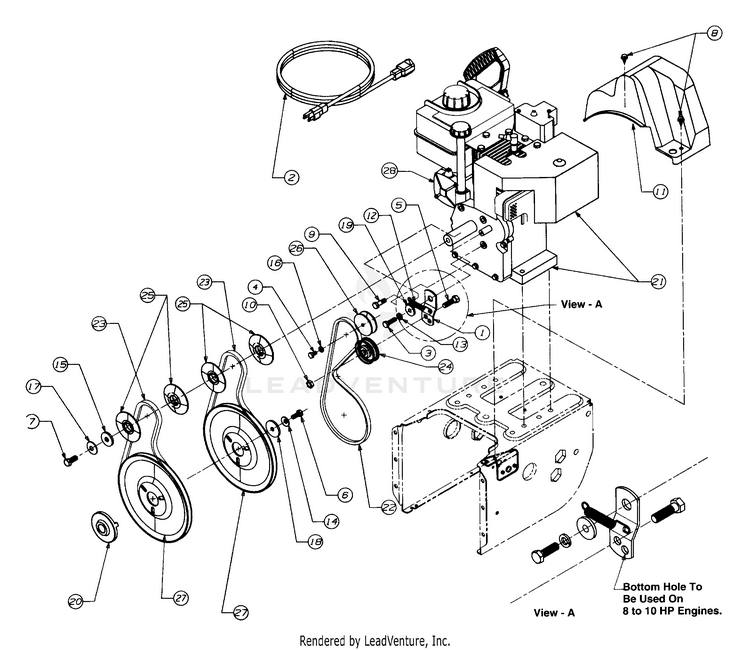

Engine And V-Belts

...
...
1
BRACKET-IDLR- MTD-05896A
...
2
3-Prong Extension Cord MTD-929-0071B
...
3
Hex Bolt 5/16-24 x 1" Lg. MTD-710-0888
...
4
HEX SCREW 1/4-28 x .50 GR5 MTD-710-0230
...
5
Hex Bolt 3/8-16 x 1.25" Lg. MTD-710-3005
...
6
Screw, Hex MTD-710-0627
...
7
Screw, Hex MTD-710-0696
...
8
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
9
Screw, Hex MTD-710-0888
...
10
Hex Jam Nut MTD-712-0181
...
11
Belt Cover MTD-731-1324
...
12
Extension Spring MTD-932-0710
...
13
Lock Wash. 5/16" I.D. MTD-936-0119
...
14
Washer, Bell MTD-736-0242
...
15
Flat Washer MTD-736-0247
...
16
L-Wash. 1/4" I.D. MTD-936-0329
...
17
Washer, Bell MTD-736-0331
...
18
Washer, Flat MTD-736-0505
...
19
Shoulder Spacer MTD-748-0234
...
20
Adapter Pulley MTD-948-0360
...
21
Eng., HMSK, Tec. 8.0 HP, Horz. MTD-NA
...
xx
Eng., HMSK, Tec. 9.0 HP, HOrz. MTD-NA
...
22
V - Belt MTD-954-0346
...
23
BELT: 3V X 35.00 LG MTD-954-0430C
...
24
Idler, Flat MTD-756-0313
...
25
Pulley, Half MTD-756-0569
...
26
PULLEY MTD-956-0959
...
27
Pulley, Auger MTD-756-0967
...
28
STARTER MOTOR MTD-TC-33329H

Frame and Drive Assembly

...
...
1
DOG ASSEMBLY (RH) MTD-618-0043
...
2
Dog Assembly, L.H. MTD-618-0044
...
3
DRIVE SHAFT ASSEMBLY MTD-618-0045
...
4
FRICTION WHEEL BEARING ASSEMBLY MTD-618-0063
...
7
Friction Wheel Disc Ass'y. MTD-956-0012A
...
8
Hub Assembly MTD-683-0024-0637
...
10
SHAFT ASSEMBLY (POWDER BLACK) MTD-684-0014B-0637
...
11
BRACKET ASSEMBLY MTD-984-0021-0637
...
13
FRAME ASSEMBLY MTD-984-0031
...
15
Wheel Assembly Friction MTD-984-0042C
...
16
Hex Cap Screw MTD-710-0118
...
18
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
19
Hex Self-Tap Screw MTD-710-0502A
...
20
Hex Self-Tap Screw MTD-710-0538
...
21
Screw, 5/16-18 x .625 MTD-710-0604A
...
22
Screw, Hex MTD-710-0642
...
23
Screw, Hex MTD-710-0653
...
24
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
25
Screw, Hex MTD-710-0788
...
26
BOLT-SHLD 5/16-18X1.5LG MTD-710-1227
...
27
BOLT ASSEMBLY-HEX 5/16-18X9.81LG MTD-710-1230
...
29
Scr., Oval MTD-710-1233
...
30
ACTUATOR SHAFT MTD-711-0911
...
31
AXLE-DRIVE MTD-711-0941
...
32
DRIVE SHAFT MTD-711-0944A
...
33
FLAT WELD NUT MTD-712-0127
...
34
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
37
Hex Jam Nut 1/4-20 Thd. MTD-912-0298
...
38
Hex Ins. Jam MTD-712-0346
...
39
Hex L-Nut MTD-712-0429
...
40
Jam Nut, Hex MTD-712-0711
...
41
SPROCKET-24T MTD-713-0115
...
42
#420 CHAIN 1/2 PIT MTD-713-0267
...
43
11 TOOTH SPROCKET MTD-713-0415
...
44
Chain, Endless MTD-713-0437
...
45
Pin, Cotter MTD-714-0474
...
46
Ring, Snap MTD-716-0102
...
47
Ring, Retainer MTD-716-0185
...
48
TRACK HOUSING MTD-719-0295A
...
50
Cable Tie MTD-725-0157
...
52
Spring MTD-932-0209
...
53
Ext. Spring .38n O.D. x 2.5" MTD-932-0264
...
54
Washer MTD-736-0105
...
56
Washer, Flat MTD-736-0160
...
57
Washer, Flat MTD-736-0176
...
58
Washer, Bell MTD-736-0242
...
59
Washer, Bell MTD-736-0255
...
60
SPRING WASHER BELL MTD-736-0270
...
61
Washer, Flat MTD-736-0287
...
62
Washer, Flat MTD-736-0300
...
63
L-Wash. 1/4" I.D. MTD-936-0329
...
64
Fl-Wash. 7/16" I.D. x 1-3/8" O.D. MTD-936-0406
...
65
Washer, Flat MTD-736-3052
...
68
SCREW, SHOULDER MTD-738-0870
...
69
Flange Bearing 3/4" I.D. x 15/16" Lg. MTD-941-0339
...
70
BALL BEARING MTD-941-0563
...
71
HEX FLANGE BEARING MTD-941-0597
...
72
Cable-Auger Clutch MTD-946-0897
...
73
Cable-Drive Clutch MTD-946-0898
...
74
Cable with Trigger Lever MTD-753-0707
...
75
Spacer MTD-748-0190
...
76
Shoulder Spacer MTD-748-0234
...
80
SPLIT SPACER MTD-750-0903B
...
81
SPLIT SPACER MTD-750-0904
...
83
SPACER MTD-950-0920
...
84
Roller, Cable MTD-756-0625
...
85
Frame, Shift Bracket MTD-784-5590
...
86
STEERING BRACKET MTD-784-5609
...
89
BRACKET-DR MTD-784-5644
...
90
AUGER CABLE GUIDE BRKT MTD-784-5646
...
91
TRACK FRAME COVER (POWDER BLACK) MTD-784-5648A-0637
...
92
SUPPORT BRACKET MTD-784-5658-0637

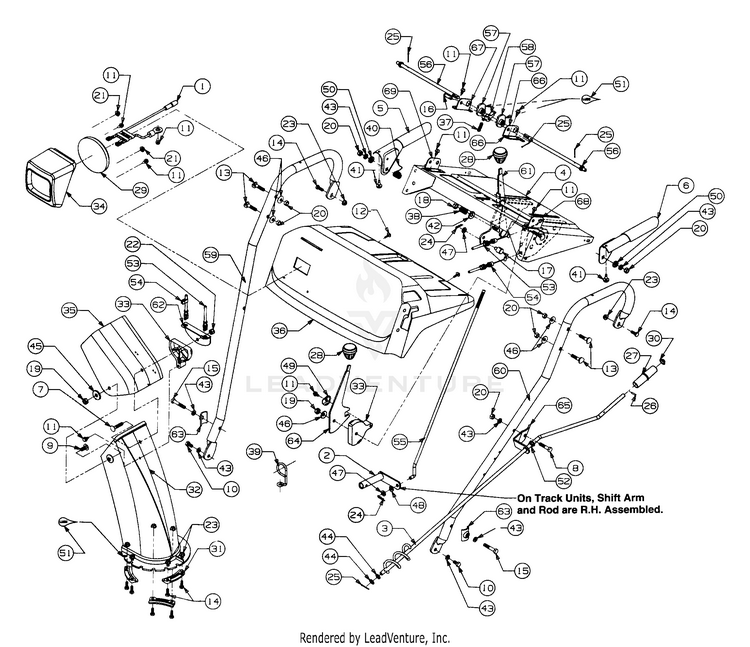

Handle Assembly

...
...
1
LIGHT HARNESS ASSEMBLY MTD-929-0058B
...
2
SHIFT ARM ASSEMBLY (POWDER BLACK) MTD-684-0008A-0637
...
3
Crank, Chute MTD-984-0022
...
4
HANDLE PANEL SUPPORT No Longer Available MTD-684-0032A
...
5
HANDLE-ENGAGEMENT (RH) MTD-684-0036A
...
6
HANDLE-ENGAGEMENT (LH) MTD-684-0037B
...
7
Bolt Carriage MTD-710-0262
...
8
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
9
Bolt, Carriage MTD-710-0451
...
10
Hex Screw MTD-710-0538
...
11
Hex Screw MTD-710-0896
...
12
Special Screw, #10-16 x .625 MTD-710-04669
...
13
Bolt, Curved Carriage MTD-710-1250
...
14
Hex Cap Screw MTD-710-3015
...
15
Hex Screw MTD-710-3180
...
16
Pin, Clevis MTD-711-0653
...
17
Ferrule, Engagement MTD-911-0677
...
18
Hex L-Nut 3/8-24 Thd. MTD-712-0116
...
19
Nut, Hex Lock MTD-912-0158
...
20
HEX NUT 5/16-18 MTD-712-3010
...
21
SELF TAPP NUT MTD-712-0415
...
22
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
23
Nut, Lock, Hex, Flanged MTD-912-3027
...
24
Hairpin Clip MTD-714-0104
...
25
Pin, Cotter MTD-914-0507
...
26
Roll Pin MTD-915-0138
...
27
Knob, Chute Crank MTD-720-0201A
...
28
Knob, Shift MTD-920-0232
...
29
HEADLIGHT MTD-925-1300
...
30
Push Cap 3/8" Rod MTD-726-0100
...
31
Chute, Flange Keeper MTD-731-0851A
...
32
Lower Chute, 5" Dia. Plastic MTD-731-1300E
...
33
Cable Guide MTD-731-1313C
...
34
HEAD LIGHT BEZEL MTD-731-1317
...
35
UPPER REMOTE CHUTE WITH LABEL MTD-731-04427B
...
36
HANDLE W/TILT No Longer Available MTD-731-1576
...
36
PANEL HANDLE W/TITL AND LIGHT No Longer Available MTD-731-1580
...
37
Spring MTD-732-0145
...
38
Spring MTD-732-0193
...
39
Cable Control Wire MTD-732-0705
...
40
Spring MTD-732-0746
...
41
Bumper, Rubber MTD-735-0199A
...
42
Washer, Bell MTD-736-0105
...
43
Lock Washer MTD-936-0119
...
44
Fl-Wash. .344" I.D. x .62" MTD-736-0140
...
45
Fl Wash. .34" I.D.x 1.12" O.D. MTD-736-0231
...
46
Washer, Bell MTD-736-0242
...
47
Washer, Flat MTD-936-0264
...
48
Washer MTD-936-0271
...
49
SPECIAL WASHER MTD-736-0506A
...
50
Washer MTD-736-0509
...
51
Lubricant MTD-NA
...
52
Bushing, Plastic MTD-941-0475
...
53
Cable, Chute Deflector MTD-946-0896
...
54
Cable, Chute Deflector w/Clip MTD-946-0901
...
55
Rod, Shift MTD-747-0798A
...
56
Rod, Cam MTD-747-0877
...
57
Cam Handle Lock MTD-748-0362
...
58
Pawl Handle Lock MTD-948-0363
...
59
HANDLE (RH) MTD-749-0908A-0637
...
60
HANDLE (LH) MTD-749-0909-0637
...
61
SHIFT HANDLE 6/01/95 & Before MTD-784-0297A
...
61
KIT-SHIFT HANDLE:S 6/01/95 & After MTD-753-05395
...
62
Brkt., Cable MTD-784-5594
...
63
Handle Tab MTD-984-5599
...
64
Handle Chute Tilt MTD-784-5604A-0637
...
65
BRACKET No Longer Available MTD-784-5678
...
66
HANDLE BRACKET (LH) MTD-784-5679-0637
...
67
Brkt., Handle Support R.H. MTD-784-5680-0637
...
68
Brkt., Handle Support L.H. MTD-784-5681
...
69
Brkt., Handle Support R.H. MTD-784-5682-0637

Track & Frame

...
...
0
UNKNOWN MTD-NA
...
3
DRIVE SHAFT ASSEMBLY MTD-618-0045
...
5
WHEEL ASSEMBLY-DRIVE MTD-631-0002
...
6
Wheel Assembly Idler MTD-631-0032A
...
9
PIVOT ROD ASSEMBLY MTD-684-0009A
...
12
KIT-REPLACEMENT MTD-753-05977
...
14
HANDLE ASSEMBLY MTD-684-0038
...
15
Wheel Assembly Friction MTD-984-0042C
...
17
Screw, Hex MTD-710-0157
...
18
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
21
Screw, 5/16-18 x .625 MTD-710-0604A
...
28
EYEBOLT5/16-18 x 3.0 MTD-710-1231
...
35
Nut, Lock MTD-712-0214
...
36
HEX NUT 5/16-18 MTD-712-3010
...
38
Hex Ins. Jam MTD-712-0346
...
39
Hex L-Nut MTD-712-0429
...
49
Grip MTD-720-0223
...
51
SNOW TRACK MTD-731-1292
...
55
Lock Wash. 5/16" I.D. MTD-936-0119
...
58
Washer, Bell MTD-736-0242
...
59
Washer, Bell MTD-736-0255
...
61
Washer, Flat MTD-736-0287
...
64
Fl-Wash. 7/16" I.D. x 1-3/8" O.D. MTD-936-0406
...
66
Lubricant MTD-NA
...
67
Shoulder Screw MTD-738-0140
...
77
LIFT SHAFT DRIVE MTD-748-0353A
...
78
Spacer MTD-750-0499
...
79
Spacer MTD-750-0547
...
82
SPACER-.51IDX1.34LG MTD-750-0909
...
87
TRACK SIDE PLATE MTD-784-5639
...
88
TRACK LOCKOUT PLATE MTD-784-5642
...
93
Carrier MTD-918-0576A
...
94
5/16" Dowel Pin MTD-741-0542
...
95
GEAR-12T MTD-717-1209A
...
96
Gear 18-Tooth MTD-717-1210A
...
97
RING GEAR MTD-717-1211B
...
99
Self-Tap Screw MTD-710-0599
...
100
FRICTION PLATE MTD-784-5677
...
101
HUB-FRICTION WHEEL MTD-718-0240
...
102
Rubber Only MTD-935-0243B
...
...
...
...
...
