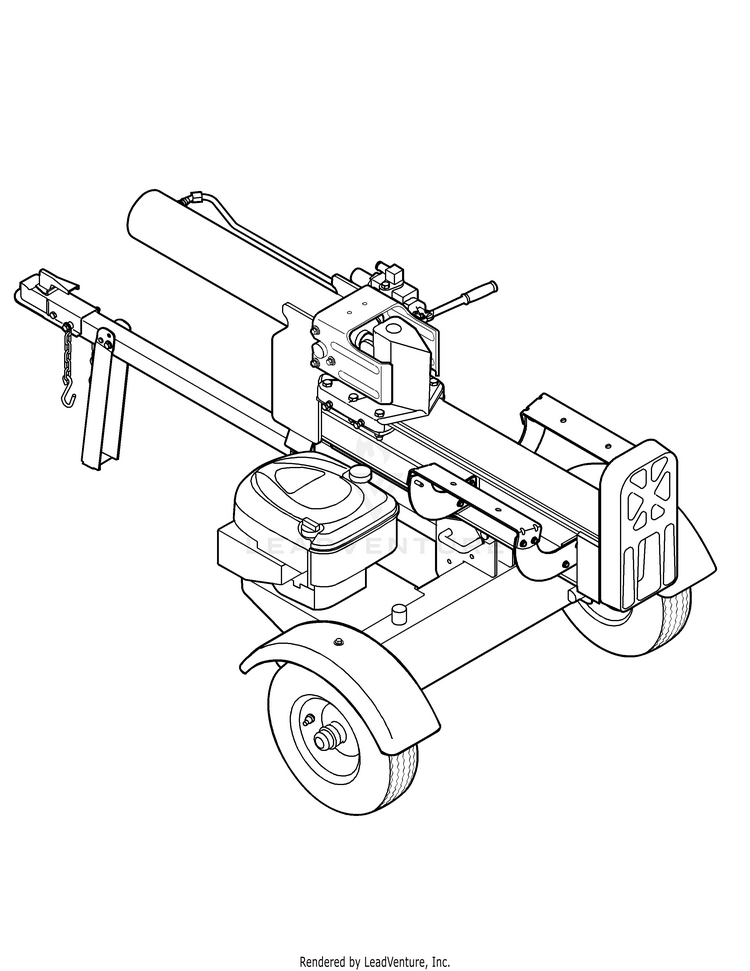

Craftsman 24BF570F299 (247.776411) (2011) Log Splitter

Model: 24BF570F299 (247.776411) (2011)

Back To Assemblies

Save Part Not Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG RJ19LM MTD-759-3338
...
xx
Pre Filter MTD-NA
...
xx
AIR FILTER MTD-BS-491588S
...
xx
Fuel Filter MTD-BS-298090S
...
xx
FUEL CAP MTD-BS-794793
...
xx
Cylinder Assembly MTD-918-04713
...
xx
FILTER ELEMENT (10 MICRON LFP-1652) MTD-723P0405
...
xx
INLET FILTER MTD-737-04308
...
xx
Vented Dipstick MTD-737-0348A
...
xx
Coupling, .875 MTD-718-04395
...
xx
Coupling, .500 MTD-718-04392
...
xx
Adjustable Gibbs MTD-NA
...
xx
Hydraulic Valve Control MTD-747-04539A
...
xx
Grip MTD-720-04088
...
xx
Valve Handle Link MTD-913-04036
...
xx
Chain Hitch MTD-713-0433A
...
xx
Wheel Assembly MTD-634-0186
...
xx
Hub Cap MTD-734-0873
