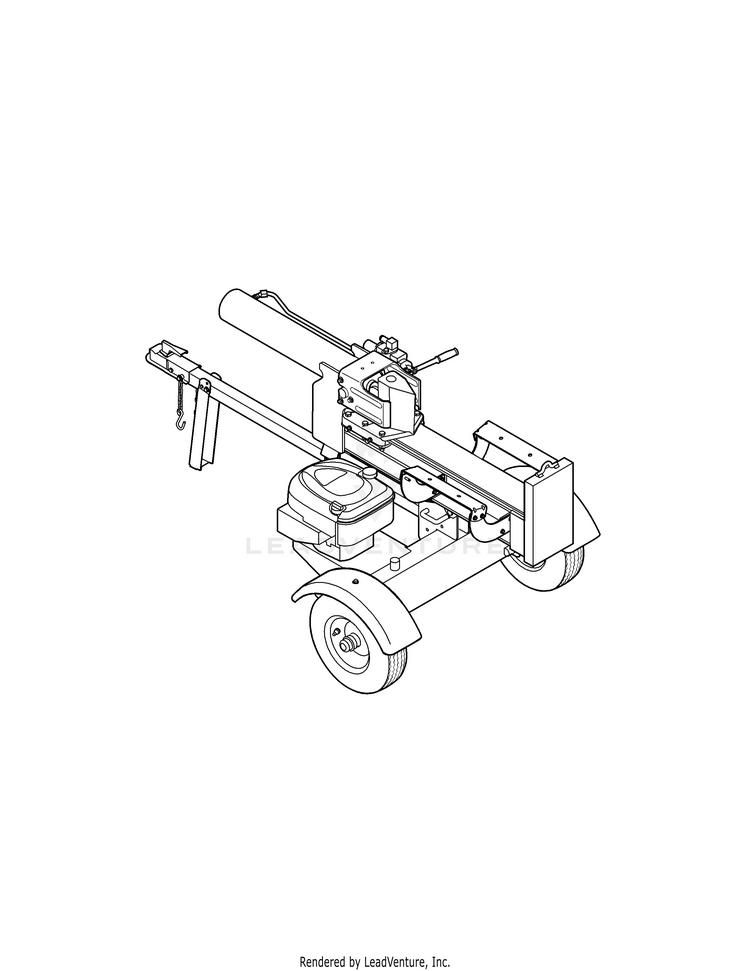

Craftsman 24BF570F299 (247.77641) (2010) Log Splitter

Model: 24BF570F299 (247.77641) (2010)

Back To Assemblies

Save Part Not Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG RJ19LM MTD-759-3338
...
xx
Pre Filter MTD-BS-493537S
...
xx
AIR FILTER MTD-BS-491588S
...
xx
Fuel Filter MTD-NA
...
xx
Cap-Fuel Tank (Service Cap) MTD-BS-796577
...
xx
Cylinder Assembly MTD-918-0769A
...
xx
FILTER ELEMENT (10 MICRON LFP-1652) MTD-723P0405
...
xx
Inlet Filter MTD-737-04093
...
xx
Vented Dipstick MTD-737-0348A
...
xx
Coupling, .500 MTD-718-04392
...
xx
Coupling, .875 MTD-718-04395
...
xx
Spider Coupling MTD-735-04103
...
xx
Adjustable Gibs MTD-781-0351
...
xx
Hydraulic Valve Control MTD-747-04539A
...
xx
Grip MTD-720-04088
...
xx
Valve Handle Link MTD-913-04036
...
xx
Chain Hitch MTD-713-0433A
...
xx
Wheel Assembly MTD-634-0186
...
xx
Hub Cap MTD-734-0873
