Craftsman 24BF570F299 (247.77641) (2009) Log Splitter

Model: 24BF570F299 (247.77641) (2009)

Save Part Not Listed?
product name

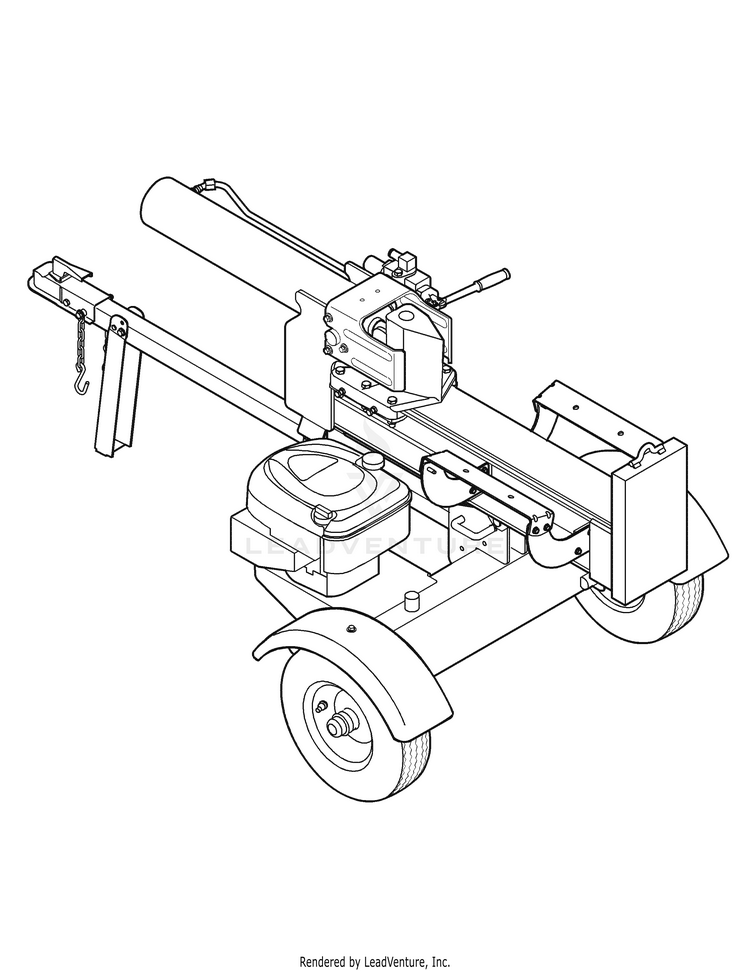

.Quick Reference

...
...
xx
SPARK PLUG RJ19LM MTD-759-3338
...
xx
Pre Filter MTD-BS-493537S
...
xx
AIR FILTER MTD-BS-491588S
...
xx
Cap-Fuel Tank (Service Cap) MTD-BS-796577
...
xx
Cylinder Assembly MTD-918-0769A
...
xx
FILTER ELEMENT (10 MICRON LFP-1652) MTD-723P0405
...
xx
Inlet Filter MTD-737-04093
...
xx
Vented Dipstick MTD-737-0348A
...
xx
Flexible Coupling .500 MTD-718-04392
...
xx
Flexible Coupling .875 MTD-718-04395
...
xx
Spider Coupling MTD-735-04103
...
xx
Adjustable Gibbs MTD-781-0351
...
xx
Hydraulic Valve Control MTD-747-04539A
...
xx
Grip MTD-720-04088
...
xx
Valve Handle Link MTD-913-04036
...
xx
Chain Hitch MTD-713-0433A
...
xx
Wheel Assembly MTD-634-0186
...
xx
Hub Cap MTD-734-0873

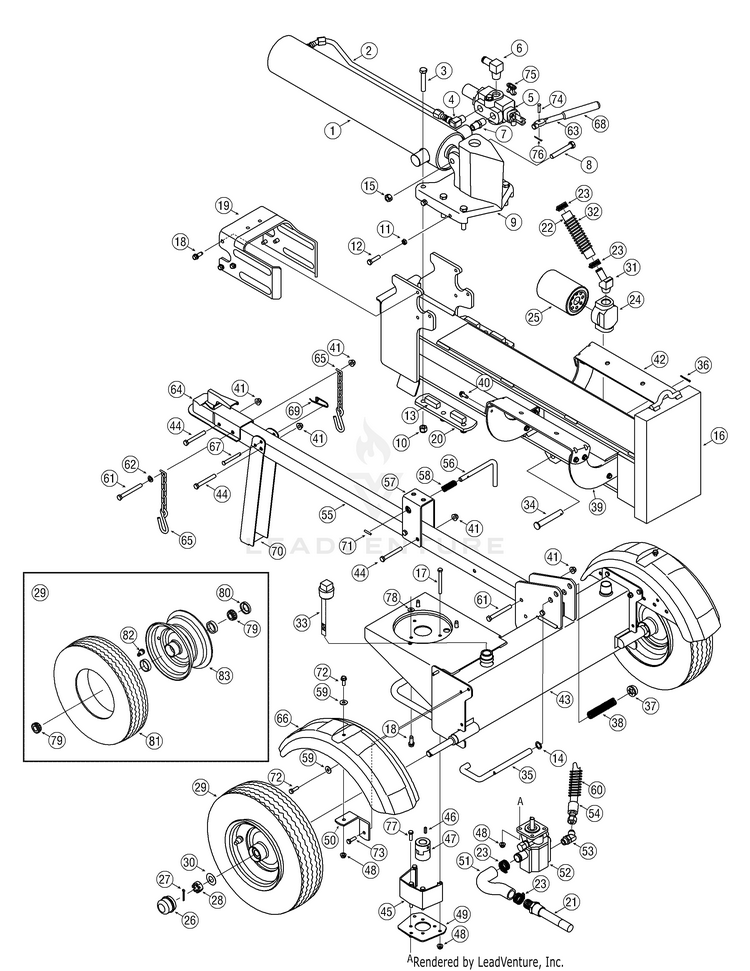

General Assembly

...
...
1
Hydraulic Cylinder MTD-918-0769A
...
2
Hydraulic Tube MTD-727-04166
...
3
Hex Cap Screw 1/2-20 x 2.75 MTD-710-1018
...
4
90 Degree Solid Adapter MTD-737-0192
...
5
Control Valve MTD-918-0481A
...
6
Return Elbow MTD-737-0153
...
7
Nipple Pipe 1/2-14 MTD-737-0238
...
8
Hex Cap Screw 1/2-13 x 3.25 MTD-710-1806
...
9
Wedge Assembly MTD-719-0550A
...
10
Hex Lock Nut, 1/2-20 MTD-912-3058
...
11
Hex Jam Nut 3/8-24 MTD-712-0711
...
12
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
13
Adjustable Gib MTD-781-0351
...
14
Flat Washer.635 x.93 x.06 MTD-936-0116
...
15
Hex Lock Nut 1/2-13 MTD-712-3022
...
16
BEAM ASSEMBLY (POWDER BLACK) MTD-681-04071A-0637
...
17
Hex Screw, 5/16-18 x 3.25 MTD-710-3056
...
18
Hex Washer Screw 3/8-16 x 1.0 MTD-710-0654A
...
19
Dislodger Bracket MTD-781-04426-0637
...
20
Back Plate MTD-781-0790A-0637
...
21
Inlet Filter MTD-737-04093
...
22
Return Hose 3/4" ID x 44" Lg. MTD-727-0443
...
23
Hose Clamp 5/8" MTD-726-0132
...
24
Filter Housing MTD-753-06643
...
25
FILTER ELEMENT (10 MICRON LFP-1652) MTD-723P0405
...
26
Hub Cap MTD-734-0873
...
27
Cotter Pin MTD-714-0162
...
28
Slotted Nut 3/4-16 MTD-712-0359
...
29
Wheel Assembly MTD-634-0186
...
29
Cone Bearing MTD-941-04298
...
29
Grease Retainer/Dust Seal MTD-921-0168
...
30
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. MTD-736-0351
...
31
ADAPTER MTD-737-0312
...
32
Hose Guard MTD-781-0526A
...
33
Vented Dipstick MTD-737-0348A
...
34
CLEVIS PIN MTD-711-1587
...
35
Lock Rod MTD-781-0690
...
36
Cotter Pin 1/8" Dia. MTD-714-0470
...
37
Push Cap MTD-726-0214
...
38
Compression Spring MTD-732-0583
...
39
Log Tray Bracket MTD-781-04180-0637
...
40
SCREW 5/16-18 x .750 MTD-710-04484
...
41
Flange Lock Nut, 3/8-16 MTD-712-04065
...
42
Log Tray MTD-781-04179-0637
...
43
FRAME (POWDER BLACK) MTD-981-04040A-0637
...
44
Hex Bolt 3/8-16 x 3" MTD-710-0521
...
45
COUPLING SHIELD MTD-719-0353
...
46
Square Key 3/16" x .75 MTD-714-0122
...
47
Set Screws MTD-710-1842A
...
47
Coupling, .500 MTD-718-04392
...
47
Coupling, .875 MTD-718-04395
...
47
Spider Coupling MTD-735-04103
...
48
Flange Lock Nut, 5/16-18 MTD-712-04063
...
49
Rear Coupling Support Bracket MTD-781-0097-0637
...
50
Fender Mounting Bracket MTD-781-1024A-0637
...
51
Hose MTD-727-04130
...
52
Gear Pump MTD-918-04127
...
53
45 DEGREE PIPE ELBOW MTD-737-0329
...
54
High Pressure Hydraulic Hose MTD-727-0502
...
55
TONGUE TUBE (CRAFTSMAN RED) MTD-781-0788-4044
...
56
Latch Rod MTD-747-1261
...
57
Latch MTD-781-1045-0637
...
58
Compression Spring MTD-932-3127
...
59
Flat Washer MTD-736-0371
...
60
Hose Guard MTD-781-0538A
...
61
Hex Cap Screw, 3/8-16 x 3.50 MTD-710-3085
...
62
Flat Washer .375 ID x .738 OD MTD-736-0185
...
63
Hydraulic Valve Control MTD-747-04539A
...
64
Hitch Coupling Assembly MTD-681-04030
...
65
Chain MTD-713-0433A
...
66
Fender MTD-731-2496A
...
67
Clevis Pin MTD-911-0813
...
68
Grip MTD-720-04088
...
69
Spring Pin MTD-732-0194
...
70
JACK STAND(POWDER BLACK) MTD-781-0789-0637
...
71
Spiral Pin MTD-715-0120
...
72
TT Screw, 5/16-18 x 0.875" MTD-710-0650
...
73
TT Screw, 5/16-18 x 1.00 MTD-710-0602
...
74
Clevis Pin MTD-711-04585
...
75
Valve Handle Link MTD-913-04036
...
76
Cotter Pin 3/32" Dia. x 1.0" MTD-714-0111
...
77
Hex Screw, 5/16-18 x 1.00 MTD-710-0376
...
78
Flat Washer, .407 x .812 x .135 MTD-736-3010

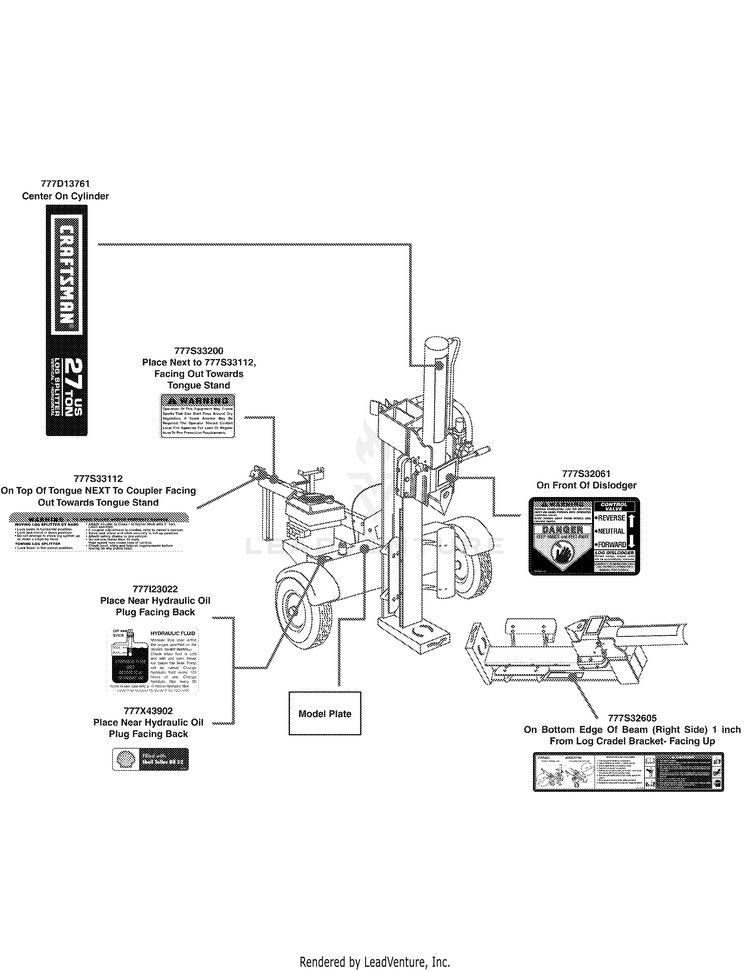

Label Map

...
...
777D13761
LABEL-LOGSPLITTER CRAFTSMAN 27 TON MTD-777D19964
...
777S33200
LABEL-WARNING SPARKS MTD-777S33200
...
777S33112
LABEL-LOGSPLITTER TOW WARNING MTD-777S33112
...
777I23022
Label-Logsplitter MTD-777I23426
...
777X43902
Label-Shell Tellus S MTD-777X45191
...
777S32605
LABEL-BEAM DNGR IN MTD-777S32605
...
777S32061
Label-Logsplitter MTD-777S33682
