Craftsman 24AF571C099 (247.774500) (2002) Log Splitter

Model: 24AF571C099 (247.774500) (2002)

Save Part Not Listed?
product name

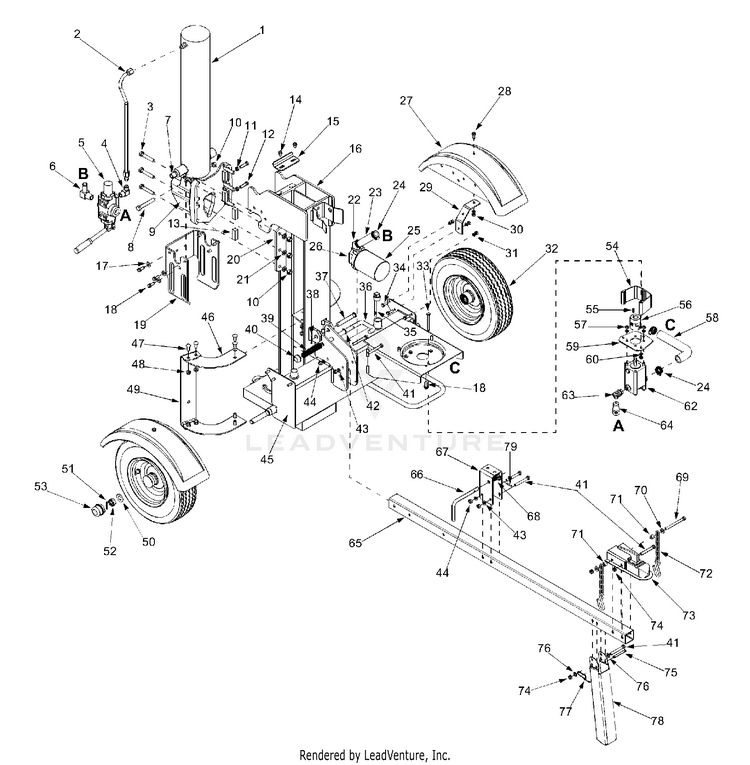

General Assembly

...
...
1
Hydraulic Cylinder replace with 718-0769A MTD-918-0769A
...
1
Seal Kit 4.5" for Fisher Cylinder 718-0769 Fisher cylinders use a snap ring retainer system to secure the piston assembly into the cylinder. MTD-753-0563
...
1
Hydraulic Cylinder replaces 718-0769 MTD-918-0769A
...
1
Kit Seal 4.5" for XINGHUI cylinder 718-0769A See Service Kit 753-05607 MTD-953-05607
...
1
Kit Seal 4.5" for ENERGY cylinder 718-0769A See Service Kit 753-05608 MTD-953-05608
...
2
HYDRAULIC TUBE MTD-727-0634
...
3
Hex Cap Screw 1/2-20 x 2.75 MTD-710-1018
...
4
90 Degree Solid Adapter MTD-737-0192
...
5
Control Valve MTD-918-0481A
...
6
Return Elbow MTD-737-0153
...
7
Nipple Pipe 1/2-14 MTD-737-0238
...
8
Hex Cap Screw 1/2-20 x 3.50 MTD-710-0515
...
9
Wedge Assembly MTD-719-0550A
...
10
Lock Nut 1/2-20 MTD-712-0239
...
11
Hex Jam Nut 3/8-24 MTD-712-0711
...
12
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
13
Adjustable Gib MTD-781-0351
...
14
Hex Washer Screw 5/16-18 x .625 MTD-710-0604A
...
15
SUPPORT BRACKET MTD-781-1054-0637
...
16
BEAM ASSEMBLY (POWDER BLACK) MTD-681-04071A-0637
...
17
Flat Washer .406 ID x .875 OD MTD-736-0300
...
18
Hex Washer Screw 3/8-16 x 1.0 MTD-710-0654A
...
19
Dislodger MTD-781-04426
...
20
Back Plate MTD-781-0790A-0637
...
21
Lock Washer 1/2 MTD-736-0921
...
22
ADAPTER MTD-737-0312
...
23
Return Hose 3/4" ID x 44" Lg. MTD-727-0443
...
24
Hose Clamp 5/8" MTD-726-0132
...
25
FILTER ELEMENT (10 MICRON LFP-1652) MTD-723P0405
...
26
Filter Housing MTD-753-06643
...
27
Fender MTD-731-2499A
...
27
Fender MTD-731-2496A
...
28
SCREW 5/16-18 x .875 GR5 HXFLG HD MTD-710-1238A
...
29
Fender Mounting Bracket MTD-781-1024A-0637
...
30
HEX NUT 5/16-18 MTD-712-3010
...
31
Lock Wash. 5/16" I.D. MTD-936-0119
...
32
Wheel Assembly MTD-634-0186
...
33
SCREW 5/16-24X3.25 GR5 MTD-710-1338
...
34
Hex Cap Screw 5/16-18 x 1.0 MTD-710-0376
...
35
Vented Dipstick MTD-737-0348A
...
36
Lock Rod MTD-781-0690
...
37
CLEVIS PIN MTD-711-1587
...
38
Cotter Pin MTD-714-0470
...
39
Compression Spring MTD-732-0583
...
40
Push Cap MTD-726-0214
...
41
Hex Bolt 3/8-16 x 3" MTD-710-0521
...
42
Flat Washer .635 ID x .93 OD MTD-736-0116
...
43
L-Washer 3/8" MTD-736-0169
...
44
Hex Nut 3/8-16 MTD-712-0798
...
45
KIT-SERVICE LOGSPL MTD-753-05565
...
46
LOGSPLITTER TRAY ARM KIT MTD-781-0686
...
47
Carriage Bolt 3/8-16 x 1.0 MTD-710-3097
...
48
Flange Lock Nut 3/8-16 MTD-912-0431
...
49
Log Cradle MTD-753-05424
...
50
Flat Washer .760 ID x .500 OD MTD-736-0351
...
51
Cotter Pin MTD-714-0162
...
52
Slotted Nut 3/4-16 MTD-712-0359
...
53
Hub Cap MTD-734-0873
...
54
COUPLING SHIELD MTD-719-0353
...
55
Square Key 3/16" x .75 MTD-714-0122
...
56
FLEXIBLE COUPLING 7/16"& 7/8"ID MTD-918-0686
...
57
Hex Nut 5/16-24 Thd. MTD-912-3057
...
58
HOSE MTD-727-0633
...
59
Rear Coupling Support Bracket MTD-781-0097-0637
...
60
Lock Wash. 5/16" I.D. MTD-936-0119
...
62
Gear Pump (11 GPM) MTD-753-05194
...
63
45 DEGREE PIPE ELBOW MTD-737-0329
...
64
High Pressure Hydraulic Hose MTD-727-0502
...
65
TONGUE TUBE MTD-781-0788
...
66
Latch Rod MTD-747-1261
...
67
Latch MTD-781-1045
...
68
COMPRESSION SPRING MTD-932-3127
...
69
Hex Cap Screw 3/8-16 x 4.25 MTD-710-0944
...
70
Flat Washer .385 ID x .870 OD MTD-736-0262
...
71
Spacer .375 ID x .625 OD MTD-750-0497
...
72
LOGSPLITTER TOW CHAIN MTD-713-0433A
...
73
COUPLER-HITCH 1-7 MTD-727-0311
...
74
Hex Lock Nut 3/8-16 MTD-712-0375
...
75
CLEVIS PIN 5/16 x 2.5 MTD-911-0813
...
76
Flat Washer .375 ID x .738 OD MTD-736-0185
...
77
Spring Pin MTD-732-0194
...
78
JACK STAND MTD-781-0789
...
79
Spiral Pin MTD-715-0120

Service Kit 753-05607

...
...
1
Piston Seal: 2 piece set (White outer ring w/ black flat under ring) Not Available Separately MTD-NA
...
2
O-ring (Large, Black) Not Available Separately MTD-NA
...
3
Backup Ring (Black) Not Available Separately MTD-NA
...
4
Rod-Guide U-Cup (Dark Blue) Not Available Separately MTD-NA
...
5
Scraper: Rod (Black) Not Available Separately MTD-NA
...
6
O-ring (Small, Black) NOT USED Not Available Separately MTD-NA
...
7
INSTRUCTION SHEET Not Available Separately MTD-NA

Service Kit 753-05608

...
...
1
Zurcon U-Cup RU3 (Blue) Not Available Separately MTD-NA
...
2
Scraper DA17 (Black) Not Available Separately MTD-NA
...
3
Retaining-Ring (Metal) Not Available Separately MTD-NA
...
4
Zurcon Wynseal (Blue) Not Available Separately MTD-NA
...
5
O-Ring (Black) Not Available Separately MTD-NA
...
6
Back-up Ring (White) Not Available Separately MTD-NA
...
7
INSTRUCTION SHEET Not Available Separately MTD-NA
