Craftsman 21B-154A799 (316.292601) Tiller

Model: 21B-154A799 (316.292601)

Save Part Not Listed?
product name

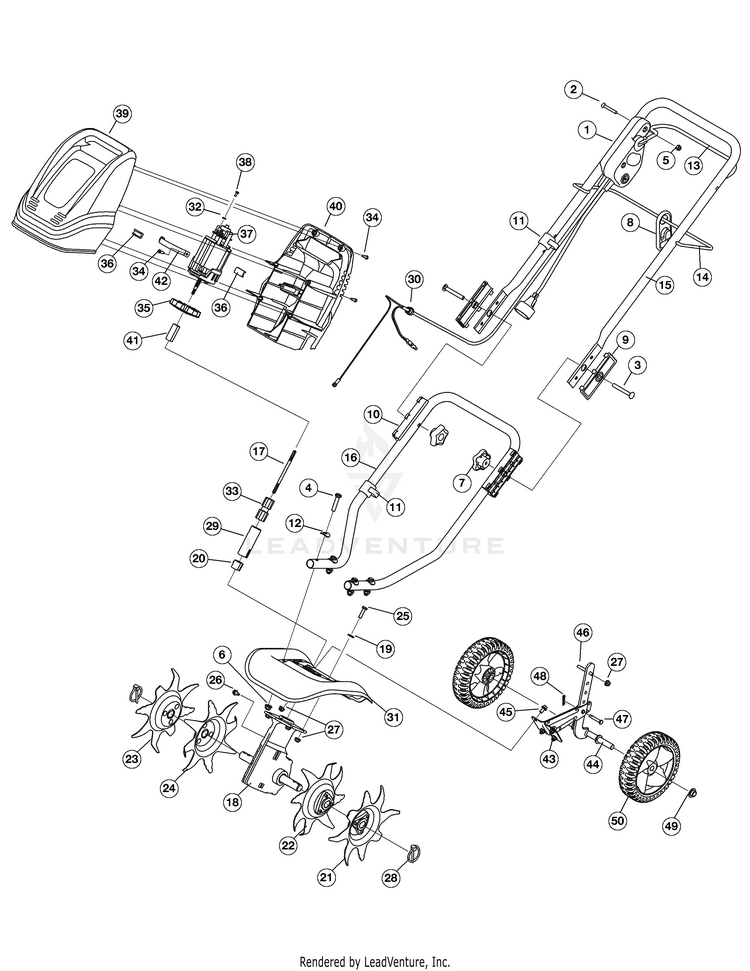

General Asssembly

...
...
1
Switch Assembly MTD-625-04027AS
...
2
Flat Screw, 1/4-20 1.75 MTD-753-04430
...
3
Bolt MTD-710-0572
...
4
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
5
Hex Lock Nut MTD-712-0324
...
6
Nut MTD-712-04063
...
7
Star Knob MTD-720-04072A
...
8
CORD RESTRAINT MTD-726-0368
...
9
Upper Handle Insulator MTD-731-05178
...
10
Lower Handle Insulator MTD-791-05186
...
11
Cable Guide MTD-731-1820
...
12
Saddle Washer MTD-736-0451
...
13
CONTROL BAIL MTD-747-04375-0637
...
14
GUIDE ROD MTD-747-04376A-0637
...
15
UPPER HANDLE MTD-749-04210
...
16
Lower Handle MTD-749-1295A-0637
...
17
SHAFT-FLEX 4.5" MTD-10055-20
...
18
Gearbox MTD-753-04075
...
19
WASH, FLAT SPECIAL MTD-4150
...
20
Sleeve MTD-753-04078
...
21
TINE-OUTER (LH) MTD-753-04071
...
22
TINE (INNER) (LH) MTD-753-04072
...
23
TINE (OUTER) (RH) MTD-753-04073
...
24
TINE (INNER) (RH) MTD-753-04074
...
25
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
26
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
27
Nut MTD-712-04064
...
28
Lynch Pin MTD-753-04070
...
29
BRACKET:MT:CABLE MTD-753-04441
...
30
BUSH:CORD:GRIP MTD-753-04428
...
31
TINE SHIELD RED MTD-753-04067
...
32
Lock Washer MTD-1625
...
33
TUBE W/ SPACERS MTD-1A2679
...
34
Screw MTD-710-04508
...
35
Fan MTD-791-180155
...
36
MOTOR PAD MTD-50545
...
37
MOTOR ASSEMBLY - 12V MTD-924-04008
...
38
Screw MTD-791-145569
...
39
FRONT MOTOR COVER MTD-731-05207
...
40
REAR MOTOR COVER MTD-731-05208
...
41
MOTOR HUB MTD-748-04085
...
42
MOTOR-STRAP MTD-786-04268
...
43
Bracket Assembly MTD-753-04058
...
44
Wheel Support Bracket Assembly MTD-753-04063
...
45
SCREW 1/4-20 x .50 GR5 MTD-710-04468
...
46
Belt Guard Pin MTD-911-0993
...
47
Clevis Pin MTD-711-1017
...
48
Hairpin Clip MTD-714-0104
...
49
Push Cap MTD-726-0299
...
50
Wheel MTD-734-1988
