Craftsman 19A70072791 50 54 60-Inch Double Bagger (2023) Attachment

Model: 19A70072791 50 54 60-Inch Dbl Bag (2023)

Save
 Part Not Listed?Part Not Listed?
product name

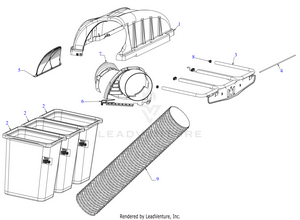

General Assembly

...
...
1
TRIPLE BAGGER COVER MTD-631-06539
...
2
GRASSBAG ASSEMBLY W/ HARD BOTTOM (STD) MTD-964-05104
...
3
SUPPORT ASSEMBLY (POWDER BLACK) MTD-683-04498B-0637
...
4
HINGE PIN MTD-711-05079
...
5
BAGGER COVER SCREEN MTD-731-06504
...
6
UPPER CHUTE SUPPORT MTD-731-17272
...
7
BAGGER DEFLECTOR MTD-731-18471
...
8
END PLUG MTD-735-0246A
...
9
9" BAGGER HOSE MTD-764-05275
...
xx
LABEL-DO NOT PL (Not shown) MTD-777X43322
...
xx
LABEL - BAGGER SAFETY MTD-777S35836

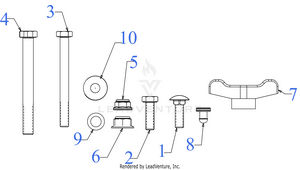

Hardware Pack - Bagger

...
...
1
CARRIAGE BOLT 5/16-18 x 1.00 MTD-710-0276
...
2
SCREW 5/16-18 x 1.0 GR5 MTD-710-0376
...
3
SCREW 5/16-18 x 3.25 GR5 MTD-710-3056
...
4
SCREW 3/8-16 x 3.50 GR5 MTD-710-3085
...
5
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
6
NUT MTD-712-04065
...
7
WING KNOB 5/16-18 MTD-720-04122
...
8
RUBBER PAD MTD-735-05938
...
9
FLAT WASHER (4/1/23 & Before) MTD-936-0117
...
9
FLAT WASHER (4/1/23 & After) MTD-736-0140
...
10
BELL WASHER .337 X.867 x .057 MTD-736-0242
...
xx
HARDWARE PACK MTD-689-01419

Hardware Pack - Chute

...
...
1
FLANGE LOCK NUT MTD-712-04064
...
2
Shoulder Screw MTD-738-1225
...
3
LOWER CHUTE MOUNTING ROD MTD-747-06309

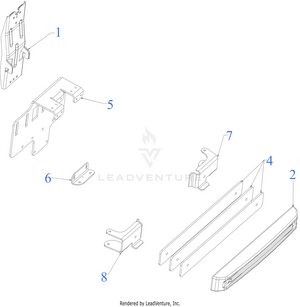

Hitch & Weight

...
...
1
VERTICAL SUPPORT BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-683-04519C
...
2
BAGGER WEIGHT MTD-719-04271A
...
4
WEIGHT PLATE *CHOOSE COLOR WHEN ORDERING* MTD-789-02137
...
5
ADAPTER BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-789-02278
...
6
HITCH ADAPTER BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-789-02298
...
7
WEIGHT HANGER BRACKET (LH) MTD-789-06919
...
8
WEIGHT HANGER BRACKET (RH) MTD-789-06920

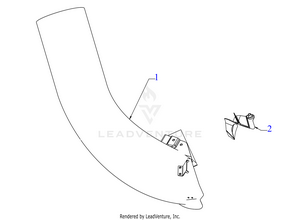

Lower Chute

...
...
1
DISCHARGE CHUTE (50/54/60) MTD-631-18371
...
2
CHUTE ADAPTER MTD-731-10133
...
...
...
...
...
