Craftsman 19A40026100 Hauler (2015) Attachment

Model: 19A40026100 Hauler (2015)

Save Part Not Listed?
product name

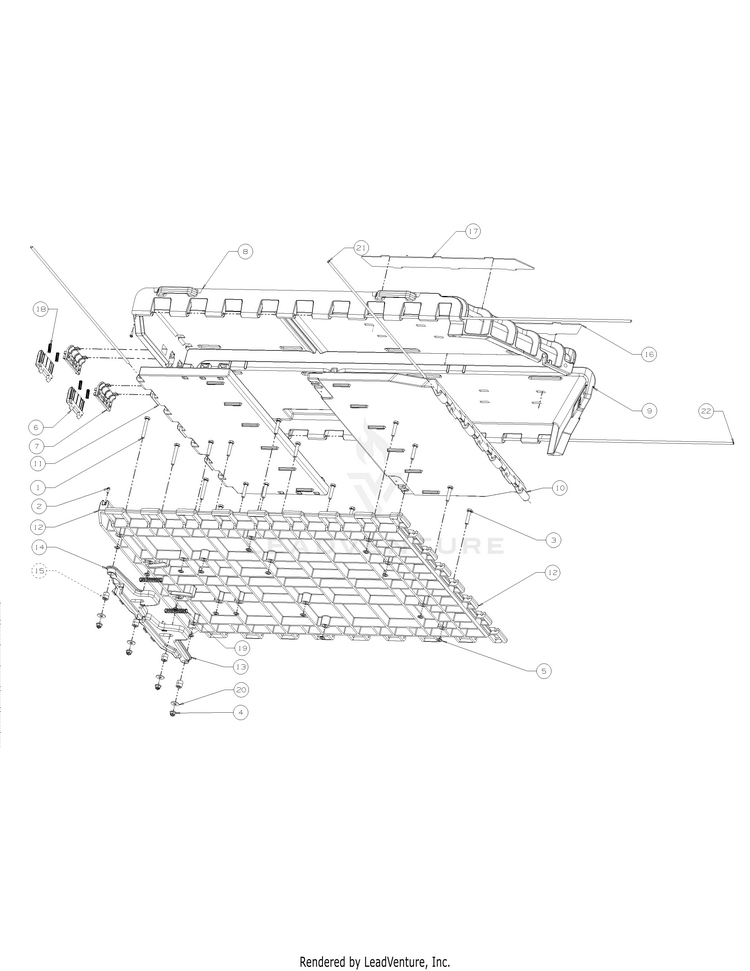

Bed Assembly

...
...
1
Screw-Hex 5/16-18 MTD-710-0395
...
2
Screw-Plastite MTD-710-04326
...
3
Screw-Hex Cap MTD-710-0805A
...
4
Nut-Flglk 5/16-18 MTD-712-04063
...
5
Nut-Push MTD-726-0201
...
6
Latch-Panel MTD-731-11047
...
7
Latch:Retaining-Panel MTD-731-11048
...
8
Panel, SD LH MTD-NA
...
9
Panel, SD RH MTD-NA
...
10
Panel, Tail Gate RR MTD-NA
...
11
Panel, SD Front MTD-NA
...
12
Panel, Base MTD-NA
...
13
Lever:Release-Rh Door MTD-731-11058
...
14
Lever:Release-Lh Door MTD-731-11059
...
15
LEVER SPACER MTD-731-11060
...
16
Plate, RH Logo MTD-NA
...
17
Plate, LH Logo MTD-NA
...
18
Spring:Compression MTD-732-05329
...
19
Spring:Compression MTD-732-05330
...
20
Fl-Wash. .344" I.D. MTD-736-0159
...
21
Rod:Hinge .25 X 27.7 MTD-747-06517
...
22
HINGE ROD .25 x 36.8 MTD-747-06518
...
xx
Hauler Tool Holder Kit (not shown, optional) MTD-19A40030OEM

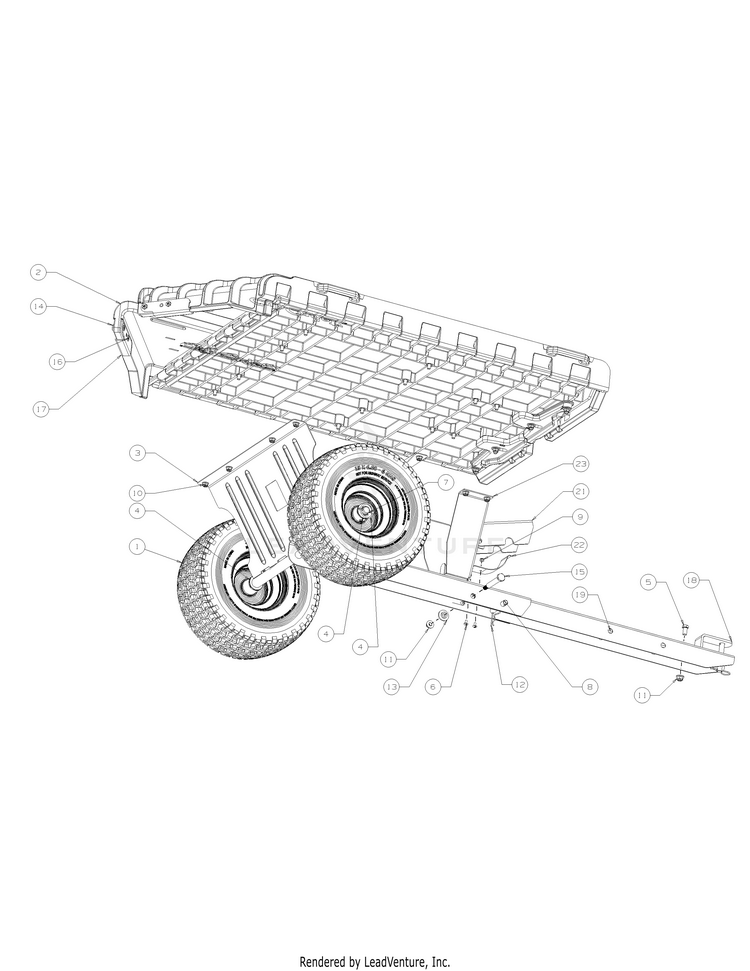

General Assembly

...
...
1
WHEEL ASSEMBLY (15 x 6 x 6) (Beige) MTD-634-05166
...
2
Bed Asm: See Breakdown MTD-NA
...
3
Bracket Asm-Axle Support MTD-689-00389
...
4
Hdwr Asm:Hauler See Breakdown MTD-NA
...
5
Screw-Hex 3/8-16 X MTD-710-0216
...
6
Screw-10 X .393 MTD-710-04838
...
7
Axle Shaft-.75 X 29.1 MTD-711-06444
...
8
Clevis Pin: 0.5 X 3.25 MTD-711-06472
...
9
Nut-Hex Ins L-#10- MTD-712-0161
...
10
Nut-Flglk 5/16-18 MTD-712-04063
...
11
Nut-Flange Lk.Nylo MTD-712-04065
...
12
Pin-Internal Cotte MTD-714-3020
...
13
Spacer-Shld MTD-938-0347
...
14
Nut-Shoulder .375 MTD-738-04240
...
15
SHOULDER SCREW 3/8-16 MTD-738-05140
...
16
SHOULDER SCREW: 1/4-20 MTD-738-05145
...
17
DOOR LATCH MTD-789-00231A
...
18
TOUNGE BRACKET MTD-789-00233A
...
19
TOUNGE BRACKET MTD-989-00234A
...
20
TOUNGE BRACKET MTD-789-00235A
...
21
DUMP RELEASE PEDAL MTD-789-00237A
...
22
Bracket-Release MTD-789-00239
...
23
LOCK BRACKET MTD-789-00240A

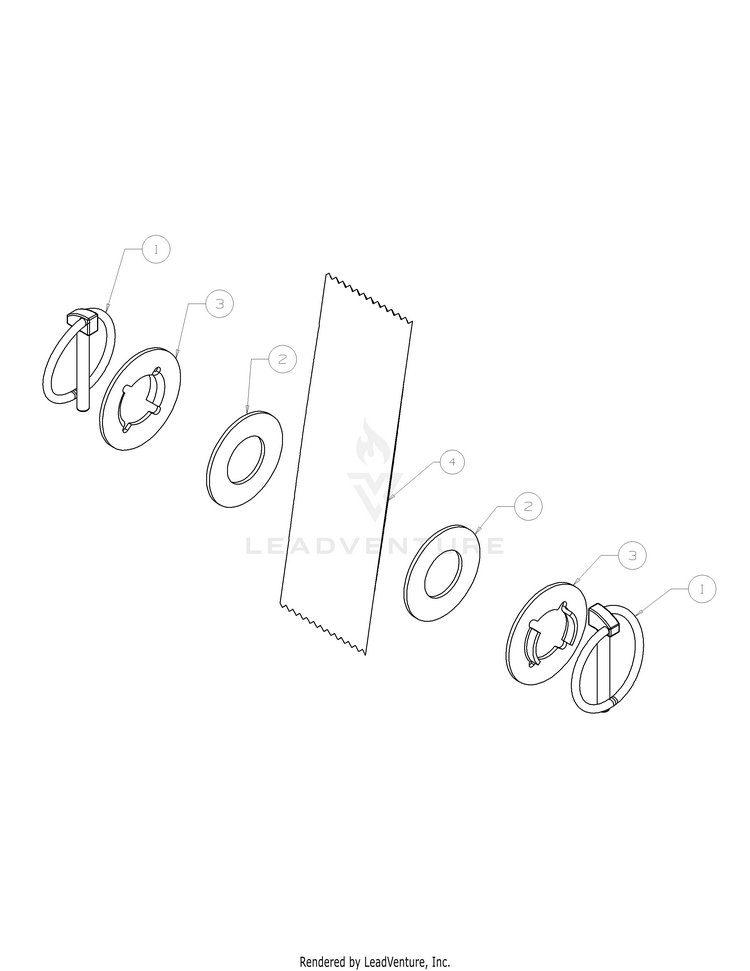

Hardware

...
...
1
Pin-Lynch MTD-753-04070
...
2
Washer-Fl-.760Id X MTD-736-0188
...
3
FLAT WASHER .781 ID x1.590 OD MTD-736-04228B
...
4
Grease MTD-NA

19A40027OEM EZ-Stow Hauler Handle (2015)

...

No Parts Available for this Schematic
