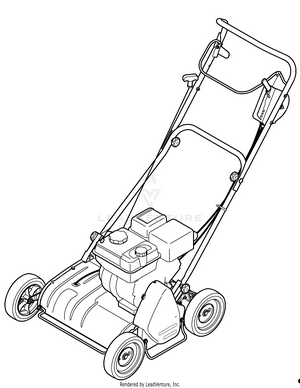

Craftsman 16CG5AMQ099 (247.282820) (2009) Dethatchers & Verticutters

Model: 16CG5AMQ099 (247.282820) (2009)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
xx
Fuel Filter MTD-951-10651
...
xx
FUEL CAP MTD-951-10917B
...
xx
Clutch Cable MTD-946-04444
...
xx
Height Cable Adjustment MTD-946-04443
...
xx
Height Adjustment Lift Handle MTD-781-04258-0637
...
xx
Blade Assembly MTD-981-04164
...
xx
Wheels - Front MTD-753-08093
...
xx
V Belt MTD-954-04028

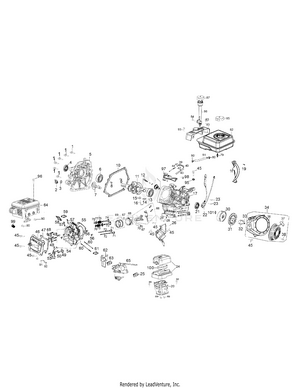

Engine Assembly

...
...
1
Bolt Flange ×28 Furnish 951-10902 Short Block MTD-NA
...
1
Bolt Flange ×28 Furnish 951-11155 Crankcase Cover Kit MTD-NA
...
1
Bolt M6×28 MTD-710-04931
...
2
Dipstick Comp Furnish 951-10902 Short Block MTD-NA
...
2
Dipstick Comp Furnish 951-11158 Oil Plug Assembly MTD-NA
...
2
Dipstick Comp Furnish 951-11155 Crankcase Cover Kit MTD-NA
...
3
O-Ring Furnish 951-10902 Short Block MTD-NA
...
3
O-Ring Furnish 951-10922 Gasket Kit - Enternal MTD-NA
...
3
O-Ring Furnish 951-10923 Gasket Kit Complete MTD-NA
...
3
O-Ring Furnish 951-11158 Oil Plug Assembly MTD-NA
...
3
O-Ring Furnish 951-11155 Crankcase Cover Kit MTD-NA
...
4
Oil Seal 25×41.25×6 Furnish 951-10902 Short Block MTD-NA
...
4
Oil Seal 25×41.25×6 Furnish 951-10923 Gasket Kit Complete MTD-NA
...
4
Oil Seal 25×41.25×6 Furnish 951-11155 Crankcase Cover Kit MTD-NA
...
4
Oil Seal 25×41.25×6 Furnish 951-11156 Crankshaft Kit MTD-NA
...
5
Cover Comp Left Crankcase Furnish 951-10902 Short Block MTD-NA
...
5
Cover Comp Left Crankcase Furnish 951-11155 Crankcase Cover Kit MTD-NA
...
6
Bearing 6205 Furnish 951-10902 Short Block MTD-NA
...
6
Bearing 6205 Furnish 951-11155 Crankcase Cover Kit MTD-NA
...
6
Bearing 6205 Furnish 951-11156 Crankshaft Kit MTD-NA
...
7
Camshaft Assy. Furnish 951-10902 Short Block MTD-NA
...
8
Pin Dowel 7×14 Furnish 951-10902 Short Block MTD-NA
...
8
Pin Dowel 7×14 MTD-710-04092
...
9
Pin Dowel 9×14 Furnish 951-10902 Short Block MTD-NA
...
9
Pin Dowel 9×14 MTD-715-04089
...
10
Gasket Case Cover Furnish 951-10902 Short Block MTD-NA
...
10
Gasket Case Cover Furnish 951-10923 Gasket Kit Complete MTD-NA
...
10
Gasket Case Cover Furnish 951-11155 Crankcase Cover Kit MTD-NA
...
11
Crankshaft Comp Furnish 951-10902 Short Block MTD-NA
...
11
Crankshaft Comp Furnish 951-11156 Crankshaft Kit MTD-NA
...
12
Governor Gear Kit Furnish 951-10902 Short Block MTD-NA
...
13
Radial Ball Bearing(6205) Furnish 951-10902 Short Block MTD-NA
...
13
Radial Ball Bearing(6205) Furnish 951-11157 Crankcase Kit MTD-NA
...
13
Radial Ball Bearing(6205) Furnish 951-11155 Crankcase Cover Kit MTD-NA
...
13
Radial Ball Bearing(6205) Furnish 951-11156 Crankshaft Kit MTD-NA
...
14
Pin Lock Furnish 951-10902 Short Block MTD-NA
...
14
Cotter Pin MTD-714-04078
...
15
O-Ring Furnish 951-10902 Short Block MTD-NA
...
15
O-Ring Furnish 951-10923 Gasket Kit Complete MTD-NA
...
15
O-Ring Furnish 951-11157 Crankcase Kit MTD-NA
...
16
Governor Arm Furnish 951-10902 Short Block MTD-NA
...
17
Crankcase Comp. Furnish 951-10902 Short Block MTD-NA
...
17
Crankcase Comp. Furnish 951-11157 Crankcase Kit MTD-NA
...
18
Flywheel Baffle MTD-951-11102
...
19
Flange Bolt MTD-710-04918
...
20
Intake Heatening Pipe Seat MTD-951-10806
...
21
Oil Seal 22×35×7 Furnish 951-10902 Short Block MTD-NA
...
21
Oil Seal 22×35×7 Furnish 951-10923 Gasket Kit Complete MTD-NA
...
21
Oil Seal 22×35×7 Furnish 951-11157 Crankcase Kit MTD-NA
...
21
Oil Seal 22×35×7 Furnish 951-11155 Crankcase Cover Kit MTD-NA
...
21
Oil Seal 22×35×7 Furnish 951-11156 Crankshaft Kit MTD-NA
...
22
Ignition Coil MTD-951-10916
...
23
Flange Bolt MTD-710-04919
...
24
Air Cleaner Housing Assembly MTD-951-10818
...
25
Packing Furnish 951-10902 Short Block MTD-NA
...
25
Packing Furnish 951-10923 Gasket Kit Complete MTD-NA
...
26
Air Baffle MTD-951-11151
...
28
Bolt Drain Plug Furnish 951-10902 Short Block MTD-NA
...
28
Drain Plug MTD-710-04906
...
29
Washer.10×16×1.5 Furnish 951-10902 Short Block MTD-NA
...
29
Washer.10×16×1.5 Furnish 951-10923 Gasket Kit Complete MTD-NA
...
29
FLAT WASHER MTD-736-04440A
...
30
Flywheel MTD-951-10908
...
31
Cooling Fan MTD-951-10910
...
32
Starter Cup MTD-951-10911
...
33
Flywheel Nut M14 MTD-712-04287
...
36
Fan Housing Cover MTD-951-11107
...
37
Recoil Starter Assembly MTD-951-10914
...
38
Bolt MTD-710-04914
...
39
Nut M6 MTD-712-05015
...
40
Governor Arm MTD-951-11106
...
41
Bolt MTD-710-04908
...
42
Throttle Return Spring MTD-951-10954
...
43
Governor Rod MTD-951-11152
...
44
Governor Return Spring MTD-951-10915
...
45
Bolt Flange 6×14 Furnish 951-10922 Gasket Kit - Enternal MTD-NA
...
45
Bolt Flange 6×14 MTD-710-04916
...
46
Cover Comp Head Furnish 951-10922 Gasket Kit - Enternal MTD-NA
...
47
Gasket Cover Head Furnish 951-10902 Short Block MTD-NA
...
47
Gasket Cover Head Furnish 951-10922 Gasket Kit - Enternal MTD-NA
...
47
Gasket Cover Head Furnish 951-10923 Gasket Kit Complete MTD-NA
...
47
Gasket, Cover Head Furnish 951-10903 Cylinder Head Assembly MTD-NA
...
47
Gasket, Cover Head MTD-NA
...
48
Bolt Flange 8×50 Furnish 951-10922 Gasket Kit - Enternal MTD-NA
...
48
Bolt Flange 8×50 MTD-NA
...
48
Bolt Flange 8×50 MTD-710-04922
...
49
Plate Push Rod Guide Furnish 951-10903 Cylinder Head Assembly MTD-NA
...
50
Bolt Pivot Furnish 951-10903 Cylinder Head Assembly MTD-NA
...
50
Pivot Bolt MTD-710-04902
...
51
Arm Valve Rocker Furnish 951-10903 Cylinder Head Assembly MTD-NA
...
52
Adjusting Nut ,Valve Furnish 951-10903 Cylinder Head Assembly MTD-NA
...
52
Valve Adjusting Nut MTD-751-11123
...
53
Nutt Pivot Locking Furnish 951-10903 Cylinder Head Assembly MTD-NA
...
53
Pivot Locking Nut MTD-751-11124
...
55
Gasket, Cylinder Head Furnish 951-10902 Short Block MTD-NA
...
55
Gasket Cylinder Head Furnish 951-10922 Gasket Kit - Enternal MTD-NA
...
55
Gasket Cylinder Head Furnish 951-10923 Gasket Kit Complete MTD-NA
...
55
Gasket Cylinder Head Furnish 951-10903 Cylinder Head Assembly MTD-NA
...
55
Gasket, Cylinder Head MTD-NA
...
56
Dowel Pin 10×16 MTD-715-04108
...
57
Muffler Stud Assembly MTD-951-10657
...
58
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
59
Packing Furnish 951-10902 Short Block MTD-NA
...
59
Packing Furnish 951-10923 Gasket Kit Complete MTD-NA
...
59
Packing Furnish 951-10903 Cylinder Head Assembly MTD-NA
...
60
Stud Bolt MTD-710-04909
...
61
Packing,Insulator Furnish 951-10902 Short Block MTD-NA
...
61
Packing,Insulator Furnish 951-10922 Gasket Kit - Enternal MTD-NA
...
61
Packing,Insulator Furnish 951-10923 Gasket Kit Complete MTD-NA
...
61
Packing,Insulator Furnish 951-10903 Cylinder Head Assembly MTD-NA
...
62
Packing,Insulator Furnish 951-10902 Short Block MTD-NA
...
62
Packing,Insulator Furnish 951-10923 Gasket Kit Complete MTD-NA
...
62
Packing,Insulator Furnish 951-10903 Cylinder Head Assembly MTD-NA
...
63
Packing Furnish 951-10922 Gasket Kit - Enternal MTD-NA
...
63
Packing Furnish 951-10923 Gasket Kit Complete MTD-NA
...
63
Packing Furnish 951-10903 Cylinder Head Assembly MTD-NA
...
64
Muffler Complete MTD-951-10901
...
65
CARBURETOR ASSEMBLY 161HC MTD-951-05519
...
66
Connecting Rod Comp Furnish 951-10902 Short Block MTD-NA
...
67
Clip Piston Pin 18mm Furnish 951-10902 Short Block MTD-NA
...
68
Piston Furnish 951-10902 Short Block MTD-NA
...
69
Ring Set Comp,Piston Furnish 951-10902 Short Block MTD-NA
...
70
Pin Piston Furnish 951-10902 Short Block MTD-NA
...
71
Lifter Valve Furnish 951-10902 Short Block MTD-NA
...
72
Push Rod Kit MTD-951-12614
...
73
Valve Inlet Furnish 951-10903 Cylinder Head Assembly MTD-NA
...
73
Valve Inlet Furnish 951-10912 Valve Kit MTD-NA
...
74
Valve Exhaust Furnish 951-10903 Cylinder Head Assembly MTD-NA
...
74
Valve Exhaust Furnish 951-10912 Valve Kit MTD-NA
...
75
Spring Valve Furnish 951-10903 Cylinder Head Assembly MTD-NA
...
76
Intake Valve Spring Seat Furnish 951-10903 Cylinder Head Assembly MTD-NA
...
77
Exhaust Valve Spring Seat Furnish 951-10903 Cylinder Head Assembly MTD-NA
...
78
Adjuster Ex. Valve Furnish 951-10903 Cylinder Head Assembly MTD-NA
...
79
Fuel Tank Filter MTD-951-10651
...
80
Clip,Tube Furnish 951-10918 Fuel Line Kit MTD-NA
...
81
Tube,Fuel Furnish 951-10918 Fuel Line Kit MTD-NA
...
82
Fuel Tank MTD-951-10920
...
83
Engine Cover MTD-951-11128
...
84
Bolt M6×12 MTD-710-04915
...
85
FUEL CAP MTD-951-10917B
...
86
Dipstick Assembly MTD-631-05020AP
...
87
Dipstick Assembly MTD-631-05020AP
...
88
Bolt MTD-710-04948
...
89
Nut MTD-712-04213
...
90
Flange Nut MTD-712-04214
...
91
Hose Clamp MTD-726-04101
...
92
Breather Hose MTD-731-07059
...
93
Panel Bolt MTD-710-04950
...
95
Nut M6 MTD-712-05015
...
96
Bolt MTD-710-04927
...
97
Throttle Control Assembly MTD-951-11071
...
98
Throttle Control Knob MTD-951-11067
...
99
Spark Arrestor MTD-951-10829
...
100
Air Cleaner MTD-951-10794
...
101
WOODRUFF KEY MTD-751P10307A
...
xx
Complete Engine Not Shown MTD-952Z161-VH
...
xx
Short Block Not Shown MTD-951-10902
...
xx
Gasket Kit External Not Shown MTD-951-10922
...
xx
Gasket Kit Complete Not Shown MTD-951-10923
...
xx
Cylinder Head Assembly Not Shown MTD-951-10949A
...
xx
Fuel Line Kit Not Shown MTD-951-10918
...
xx
Valve Kit Not Shown MTD-951-10912
...
xx
Crankcase Kit Not Shown MTD-951-11157
...
xx
Oil Plug Assembly Not Shown MTD-951-11158
...
xx
Crankcase Cover Kit Not Shown MTD-951-11155
...
xx
Crankshaft Kit Not Shown MTD-951-11156
...
xx
Cylinder Head Kit Not Shown MTD-951-10925
...
xx
Carburetor Kit Not Shown MTD-951-11048
...
xx
Recoil Spring and Pulley Not Shown MTD-951-10826

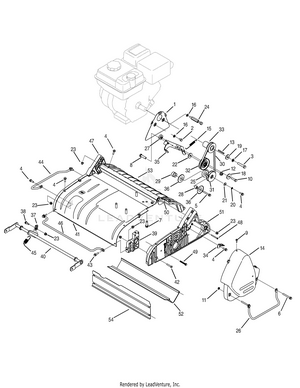

Frame Assembly

...
...
1
Pulley Guard Assembly MTD-681-04035-0637
...
2
Hex Screw, 5/16 - 24 MTD-710-0107
...
3
Hex Screw, 3/8 - 24 MTD-710-0151
...
4
Screw, M6 - 1 x 20.0 MTD-710-04189
...
5
Screw, M6 - 1 MTD-710-04192
...
6
Screw, M6 - 1 MTD-710-04866
...
7
Sems Screw, 3/8 - 16 MTD-710-0502A
...
8
Hex Screw, 3/8 - 16 MTD-710-0520
...
9
Screw, .625 MTD-710-1237
...
10
Hex Screw, M8 - 1.25 MTD-710-1683
...
11
Jam Nut, 1/4 - 20 MTD-912-0298
...
12
Flange Lock Nut, 3/8 - 16 MTD-712-04065
...
13
Square Key, 3/16 x 1.75 MTD-914-04029
...
14
Pulley Cover MTD-731-05123
...
15
External Spring MTD-732-04224
...
16
Lock Washer, 5/16 MTD-936-0119
...
17
L-Wash. 3/8" I.D. MTD-736-0169
...
18
Flat Washer, .330 x 1.25 x .120 MTD-736-0343
...
19
Flat Washer, .395 x 1.12 x .14 MTD-736-04005
...
20
Lock Washer MTD-736-0648
...
21
Flat Washer, 6.4 ID MTD-736-0685
...
22
Flat Washer, 10.5 ID MTD-736-0702
...
23
Flange Lock Nut MTD-712-0713
...
24
Belt Retainer Screw MTD-738-04114A
...
25
BALL BEARING MTD-941-0600
...
26
Bumper Side MTD-747-05100
...
27
Idler Spacer MTD-750-04233A
...
28
Bearing Spacer, 6.6 x 16.7 x 11.6 MTD-750-04391
...
29
Idler Spacer, 6.5 x 22.3 x 23 MTD-750-04394
...
30
V Belt MTD-954-04028
...
31
Pulley MTD-756-04112A
...
32
Pulley, 2 x 2.75 x .625 MTD-756-04133
...
33
Pulley, .75 ID x 2.14 MTD-756-04275
...
34
Cable Bracket Mount MTD-781-04053
...
35
Idler Arm MTD-781-04089
...
36
Washer Bearing MTD-781-04096
...
37
Cable Retainer Bracket MTD-781-04064
...
38
Shoulder Spacer, 7.13 x 11.50 MTD-738-04079
...
39
Wheel Cradle Bracket Assembly MTD-681-04014A
...
40
Height adjustment Bracket Assembly MTD-981-04105
...
41
Frame MTD-781-04263-4044
...
42
Screw, M6-1 x 35.0 MTD-710-04197
...
43
Screw, M6 - 1 x 25.0 MTD-710-04865
...
44
Right Hand Bumper Side MTD-747-05098-0637
...
45
External Spring, 17.6mm x 54.0mm MTD-732-04518
...
46
Front Bumper MTD-747-05097-0637
...
47
Right Hand Frame Assembly MTD-681-04162
...
48
SCREW MTD-710-04384
...
49
Screw, 1/4 - 20 MTD-710-1026
...
50
Deflector Mounted Rod MTD-711-04204A
...
51
Left Hand Frame Assembly MTD-681-04161
...
52
Rear Baffle MTD-731-05049
...
53
Deflector MTD-731-06907
...
54
Baffle MTD-781-04051A-0637

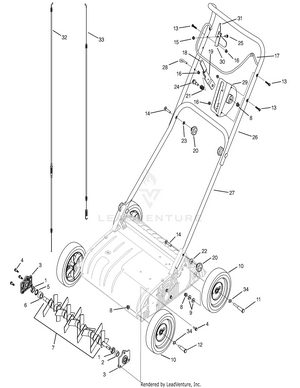

General Assembly

...
...
1
Nut, M18 x 1.5 MTD-712-04053A
...
2
Bearing Spacer MTD-750-04201
...
3
Bearing Assembly MTD-681-04018A
...
4
Should Screw, 7.13 x 11.5 MTD-738-04079
...
5
Safety Washer MTD-736-04114
...
6
Hex Spacer Shaft MTD-750-04196
...
7
Blade Assembly MTD-981-04164
...
8
Flange Lock Nut, M8 - 1.25 MTD-712-0714
...
9
Flat Washer, 8.20 x 20.93 x 4.00 MTD-736-04176
...
10
Wheels - Front MTD-753-08093
...
11
Shoulder Screw, 12.63 x 37.98 MTD-738-04384
...
12
Shoulder Screw, 12.63 x 37.98 MTD-738-04385
...
13
Spacer, M6 - 1.30 MTD-710-04283
...
14
Carrier Spacer, M8 - 1.25 MTD-710-1700
...
15
Flange Lock Nut, 1/4 - 20 MTD-712-04064
...
16
Flange Lock Nut, M6 - 1 MTD-712-0713
...
17
Bail MTD-747-04861-0637
...
18
Handle Grip MTD-720-0270A
...
19
Height Adjustment Lift Handle MTD-781-04258-0637
...
20
Turning Knob, M8 x 1.25 MTD-720-04041
...
21
Compression Spacer, .087 x .715 x .688 MTD-732-04190A
...
22
Saddle Wash. .32" I.D. MTD-736-0451
...
23
Flat Washer, 8.4 x 16 x 1.60 MTD-736-0700
...
24
Shoulder Spacer, 11.87 x 15.5 MTD-738-04092
...
25
Shoulder Bolt, .375 x .125 MTD-938-0952A
...
26
Upper Handle MTD-749-04464-0637
...
27
Lower Handle MTD-749-04117B-0637
...
28
Eye Bolt MTD-782-7627A
...
29
Height Adjustment Bracket Mount MTD-781-04261-0637
...
30
Bail Interlock Bracket Mount MTD-781-04267-0637
...
31
Bail Interlock Pivot Bracket MTD-781-04268-0637
...
32
Clutch Cable MTD-946-04444
...
33
Height Cable Adjustment MTD-946-04443
...
34
Wave Washer MTD-936-0504

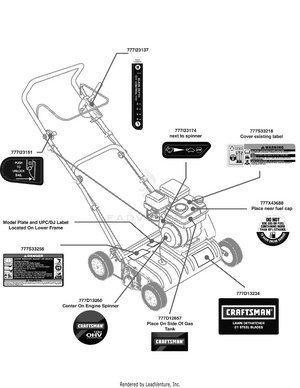

Label Map

...
...
777I23137
LABEL-VERT:HNDL:DEPTHCNTR MTD-777I23137
...
777I23151
LABEL-VERT:HNDL:BAILLOCK MTD-777I23151
...
777S33256
LABEL-VERT:DECK:DANGER:SERIOUSIN MTD-777S33256
...
777D13260
LABEL-ENG:SPINNER:123CC:CRAFTSMN MTD-777D13260
...
777D12657
LABEL-ENGINE GAS TANK CRAFTSMAN MTD-777D12657
...
777D13234
LABEL-DETHTCHR:DECK:CRAFTSMAN MTD-777D13234
...
777X43688
LABEL-ETHANOL MTD-777X43688
...
777S33218
LABEL-WARNG:161-V0 ENGINE MTD-777S33218
...
777I23174
LABEL-ENG:THROTTLE:MTD MTD-777I23174
...
...
...
...
...
Processing
