Craftsman 11A-A1BW799 (247.998161) (2015) Walk Behind Mower

Model: 11A-A1BW799 (247.998161) (2015)

Save Part Not Listed?
product name

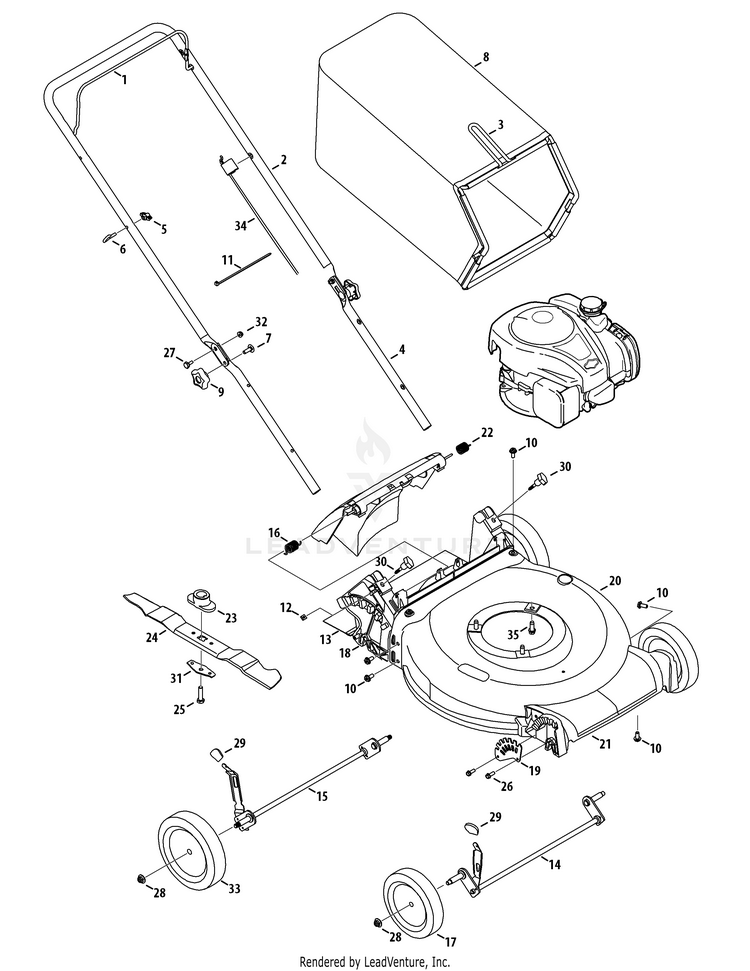

General Assembly

...
...
1
Blade Control MTD-747-05184D
...
2
UPPER HANDLE (POWDER BLACK) MTD-749-05084B-0637
...
3
Grass Catcher Frame MTD-647-04271
...
4
LOWER HANDLE (POWDER BLACK) MTD-749-07298-0637
...
5
Wing Nut MTD-720-0279
...
6
Rope Guide MTD-710-1205
...
7
Carriage Screw ,5/16-18 MTD-710-04998
...
8
21" GRASSBAG (BLACK/CRAFTSMAN) MTD-964-04154B
...
9
Hand Knob MTD-720-04072A
...
10
Screw, 5/16-14 x .750 MTD-710-04995A
...
11
Cable Tie MTD-725-0157
...
12
Nut, Sq., 1/4-20 MTD-712-04222
...
13
Trail shield MTD-731-07203
...
14
7" FRONT AXLE ASSEMBLY MTD-611-04143B
...
15
8" REAR AXLE ASSEMBLY MTD-611-04142A
...
16
TORSION SPRING (RH) MTD-732-05061B
...
17
Wheel, 7 x 1.8 MTD-734-04562
...
18
REAR DOOR & BAFFLE ASSEMBLY MTD-631-08159
...
19
Front Height Adjuster Plate MTD-787-01818A-0637
...
20
Deck - 21" MTD-787-01870B-4043
...
21
Front Cover MTD-753-08680
...
22
Torsion Spring - LH MTD-732-05062A
...
23
Blade Adapter MTD-748-0376E
...
24
Mulching Blade MTD-942-0741A
...
24
GENUINE FACTORY PARTS® 21" Walk Mulching, Bagging & Side Discharging Blade (Bow Tie) 742-0741A Retail Packaged Part MTD-490-100-F084
...
24
21" BLADE (MULCH) (XTREME) MTD-942-0741-X
...
25
Screw, 3/8-24 x 1.50 MTD-710-1044
...
26
Screw, 1/4-15 x .750 MTD-710-0895
...
27
Sldr. Screw, .375 x .126 x 1/4-20 MTD-738-04419A
...
28
Flange Lock Nut, 3/8-16 MTD-712-04217
...
29
Adjustment Lever Knob MTD-720-04130
...
30
Wing Knob MTD-720-05066A
...
31
BLADE BELL SUPPORT MTD-736-0524B-1
...
32
Nut, Flange Lock, 1/4-20 MTD-712-04064
...
33
Wheel, 8 x 1.8 MTD-734-04563
...
34
Control Cable MTD-946-04661A
...
35
TT Sems Screw, 3/8-16 x 1.0 MTD-710-04683C

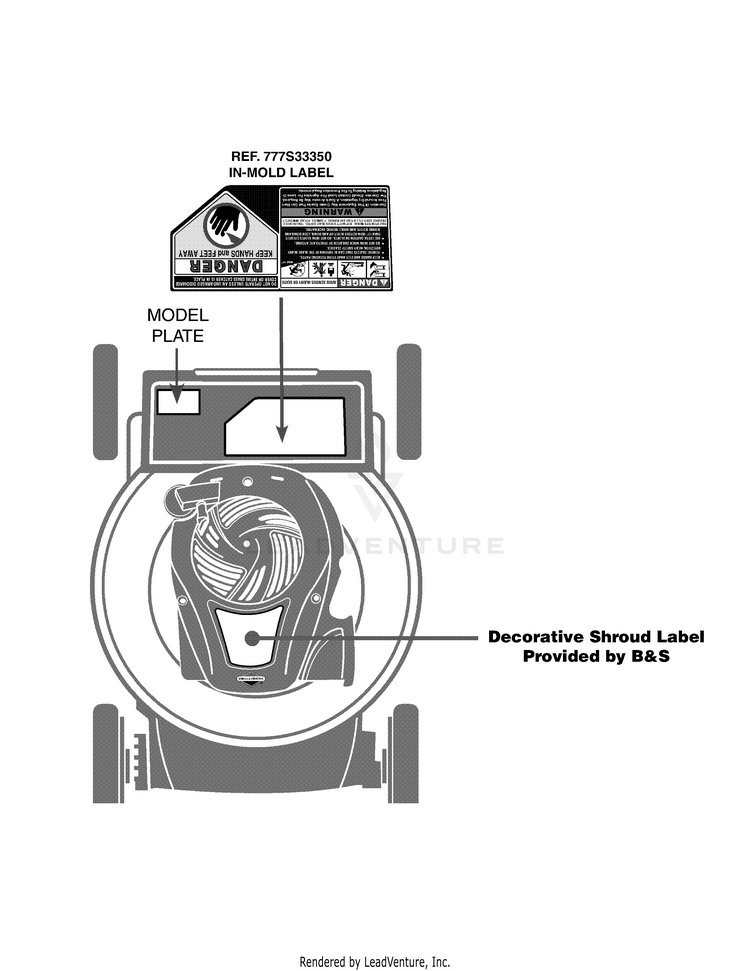

Label Map

...
